Starline S66 Quick Start Manual

S96
Bluetooth transceiver
Mounting recommendations
Mount the main unit at a distance not less 10 cm from the
metal surfaces, to avoid Bluetooth and GSM signal
transmission interference.
X1
X2
X3
X4
X5
X6
USB connector
GSM antenna
For convenient setup, diagnostics and software upgrade use the free StarLine Master
software available at help.starline.ru/slm/en
Login into the program with a service code in the owner's plastic card.
The manufacturer StarLine ScPA LLC reserves the right to make technical improvements
not shown in this diagram.
Information on firmware updates, actual versions of operation and installation manuals are
available at help.starline.ru.
General installation requirements
The security system is designed for installation on vehicles with 12V on board voltage.
Prior to installation, make sure that the vehicle equipment circuits, to which the system is connected, are in suitable operating condition and no any trouble codes and check engine are indicated.
The system installation should be carried out according to the connection diagram.
The "ground" wire of the main unit should be connected rst to a car body ground with an original screw.
Mount the wiring far from sources of electrical interference: ignition coils, high-voltage wires, etc.
Make sure that the harness is not lay in contact with the moving parts of the vehicle: pedals, steering shaft etc.
Connect all the harness to the main unit sockets only after all wires mounting is complete.
Do no t the engine temperature sensor near the exhaust manifold, otherwise it may cause sensor overheating and damage.
Only the quali ed and trained tter may carry out the security system installation.
The con gured parameters of the security systems must comply with a vehicle manual instruction requirements.

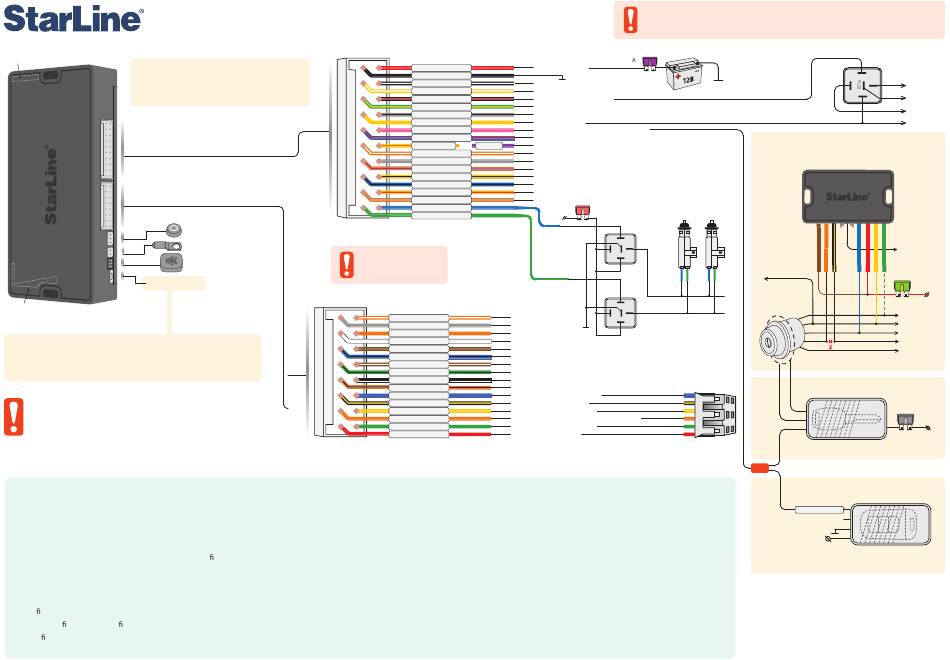

S66
Security – telematic system
,

connection diagram

X1
Valet button with LED
Temperature sensor
Check other available
GPS+GLONASS receiver
connection options at
help.starline.ru
X2
red
Unit power supply
black
black-white
Security status output (200 mA) (–)
yellow-white
Door opening simulation output (200 mA) (–)
black-red
Engine blocking (200 mA) (–)
green-yellow
"Comfort" function output (200 mA) (–)
gray-black
Engine operation monitoring input
yellow
Ignition input (+)
pink Bypass module control output (200 mA) (–)
blue-red Parking brake input (–)
or
yellow-orange violet Control output for code relay StarLine R4 (200 mA) (–)
orange-white
Trunk limit switch input (–)
gray
Horn control output (2 A) (+)
orange-violet
Brake pedal input
yellow-black
Trunk unlocking output (200 mA) (–)
blue-black Door input (+/–)
yellow-red
Door two-step unlocking output (200 mA) (–)
orange-gray Hood limit switch input (–)
blue
+12 V
green
orange-white CAN-H B
gray
LIN1
orange
CAN-L B
white LIN2
brown CAN-L A
blue-black Output to alternative light signal control (200 mA) (–)
brown-white
CAN-H A
green-black
Output to alternative central lock control (200 mA) (–)
white-black StarLine Bus core bus
orange-black DVR control output (2А) (+)
blue
Output to accessories (200 мА) (–)
black-yellow
Output to starter (200 мА) (–)
yellow
Output to ignition 1 (200 мА) (–)
orange
Control output of the built-in starter lock (200 мА) (–)
green
Output to ignition 2 (200 мА) (–)
red
Output +12В (500 мА) (+)
For the cars equipped with CAN/LIN bus make a connection via the embedded digital CAN/LIN interface,
for the elder cars make an analogue connection.
Find information and wiring tips on vehicles and features supported with CAN/LIN connection at
Storage battery
3
Autostart connection diagram for S96
10 А
(–)
85
30
87а
To the yellow
87
86
wire of
(+)
connector X1
command
«Open»
(–)
command
85
Ignition lock
«Close»
30
87а
Activators are
87
86
connected in parallel
(+)
or
can.starline.ru
Blocking relay
(–)
in the set
85
30
Common
87
86 NC
(+)
NO
Ignition 1
Power module
To connector
X2
30 А
+ 12 V
Ignition 2
Ignition 1
Accessories
Starter
+12 V
StarLine BP-03, BP-05
1 А
+12 V
Variant 1
StarLine BP-06
violet-yellow
not used
+12 V
Variant 2
