Starline V63 Installation And User Manual
  1. Manuals
  2. Brands
  3. Starline Manuals
  4. Security System
  5. V63
  6. Installation and user manual

Starline V63 Installation And User Manual

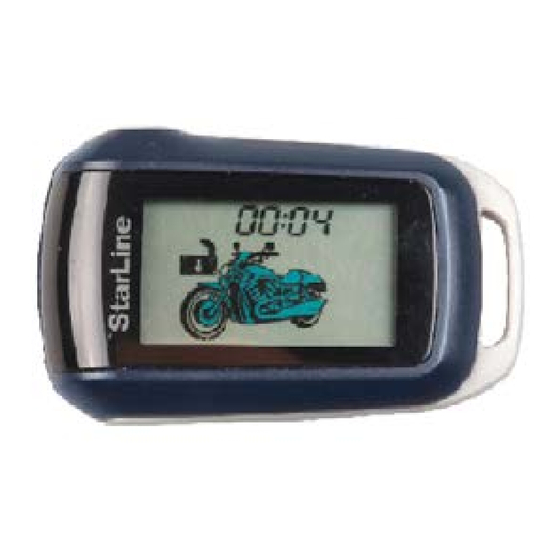

For motorcycle, atv, scooters and other motorcycle type machines.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V63
Installation and user
manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V63 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Starline V63

Summary of Contents for Starline V63

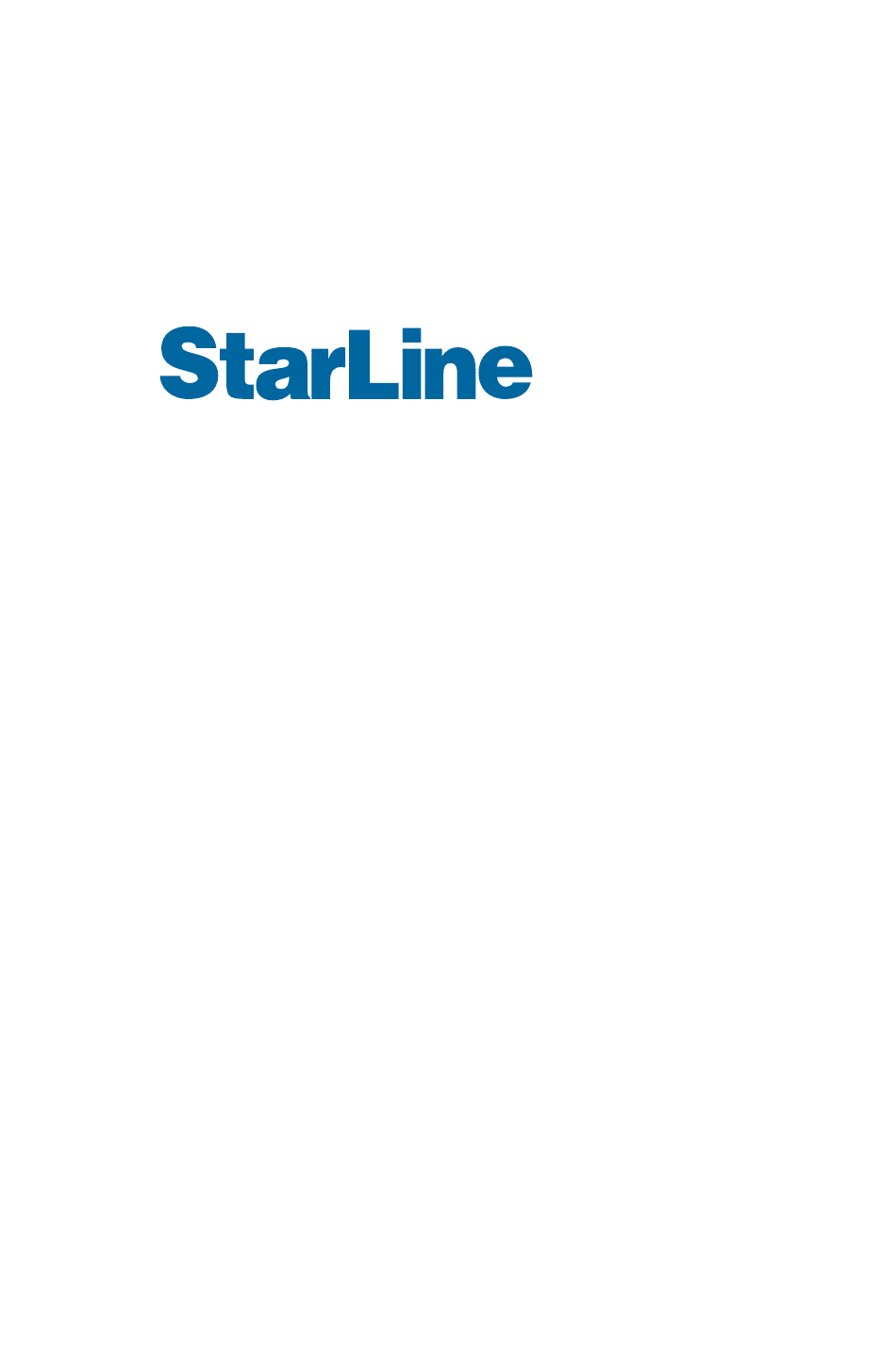

  • Page 1 Installation and user manual...
  • Page 2 In modern motorcycles batteries of relatively small capacity of 4-12 Ah are used. When the motorcycle is parked for a long time, StarLine V63 system current consumption may lead to a decrease in the battery charge to a level at which the engine can not be started.

  • Page 3: Table Of Contents

    StarLine V63 installation and user manual Content Introduction...........................5 Delivery set...........................6 Technical features......................7 The system security and comfort functions..............8 System control with remote The systems remote controls..................11 Remote buttons pressing duration ................12 Main remote commands....................13 Remote control display....................16 Modes and functions indication..
  • Page 4 14-pin main unit socket connection ................76 StarLine V63 connection diagram................78 GPS tracking and SMS-notifications ................80 StarLine M17 tracker setup with connection to StarLine V63 ......81 StarLine V63 и StarLine М17 connection diagram..........82 Remotes batteries and it's replacing Replacing battery in LCD 2-way remote ..............

  • Page 5: Introduction

    StarLine V63 installation and user manual Introduction StarLine V63 — innovative security system with dialog code for motorcycle, ATV, scooters and other motorcycle type machines. Innovative security functions supported DIALOG CODE Dialog code with individual 128 bit encryption keys StarLine V63 control eliminates intelligent hijacking...

  • Page 6: Delivery Set

    StarLine V63 Delivery set – installation and user manual – system main unit with integrated shock and tilt sensor; – 2-way remote sensor with LCD; – LCD remote control battery; – additional 1-way remote control; – horn; – main cable with 14 - pin connector;...

  • Page 7: Technical Features

    StarLine V63 installation and user manual Technical description • RF control channel..............from 433,05 to 434,79 MHz • Radio channels quantity ................128 • Max main remote operating distance - for commands transmission..............600 m* - for noti cations receiving ..............1200 m* •...

  • Page 8: The System Security And Comfort Functions

    StarLine V63 System security and service functions Secured zones and control ways • motorcycle – from the motion (tilt sensor); • motorcycle – from shocks (2 level shock sensor); • trunk – from opening (magnet sensor); • ignition– from switch on (ignition control input);...
  • Page 9 StarLine V63 installation and user manual Self diagnostics and modes indication System service functions...
  • Page 10 StarLine V63 • possibility of multiple remote tilt sensor disable / enable during one security cycle; • possibility of shock sensor multiple remote disable / enable by levels during one security cycle; • motorcycle searching in parking lot; • emergency security disarming without remote with personal PIN-code;...

  • Page 11: System Control With Remote

    StarLine V63 installation and user manual System control with remotes Remote controls The systems is equipped with 2 remote controls: main 2-way remote additional 1-way remote 4–buttons 2-way LCD 3–buttons 1-way remote remote Main and additional remotes are equal in RF channel encryption with using of dialog code encryption algorithm, protected from hacking.

  • Page 12: Remote Buttons Pressing Duration

    StarLine V63 In addition, remote display shows current time, alarm clock status and motorcycle battery voltage. To get use of the most security system features we recommend using the main 2-way remote control. The additional 1-way remote only if you can not use 2-way main remote. The additional 1-way remote is intended only for the basic control commands transmission.

  • Page 13: Main Remote Commands

    StarLine V63 installation and user manual Main remote commands Security functions control Press the buttons Conditions Additional Main Command remote remote Ignition Security Icons button button number number Security arm any except (with sound 1 short 1 short disable confirmation...
  • Page 14 StarLine V63 Press the buttons Conditions Main Additional Command remote remote Ignition Security Icons button button number number 2 short Abort the panic signals no matter 3 short 1 + 3 Enable Panic any except mode long until matter Enable / disable...
  • Page 15 StarLine V63 installation and user manual Press the buttons УСЛОВИЯ Main Additional Command remote remote Ignition Security Icons button button number number 1 + 3 1 + 2 any except Enable Anti-hijack long until long until mode Security state and...

  • Page 16: Remote Control Display

    StarLine V63 2-way remote LCD Modes and functions indication Valet mode Security auto arming mode Personal PIN code programmed Immobilizer mode System and motorcycle state indication Security mode disarmed Security mode armed Security mode with sound signals armed Silent security mode armed...
  • Page 17 StarLine V63 installation and user manual Shock sensor 1st and 2nd levels bypass Remote control buttons locked Trunk is open Ignition is On Remote battery needs to charge Alarm clock is enabled Countdown timer is enabled Control commands transmission Shock sensor 1st level activated...

  • Page 18: Main Remote Functions Menu

    StarLine V63 LCD 2-way remote main menu LCD remote menu allows to make following settings: • setup the current time; • setup the alarm clock; • enable and disable alarm clock; • setup countdown timer; • enable or disable timer;...
  • Page 19 StarLine V63 installation and user manual Press the button 4 shortly go to alarm clock hours: remote display alarm clock hours digits are flashing: button 2 — increase digits; button 3 — decrease digits. Press the button 4 shortly to go to alarm clock minutes...
  • Page 20 StarLine V63 Press the button 4 shortly to go to timer hours setup: remote display timer hours digits are flashing: button 2 — increase digits; button 3 — decrease digits. Press the button 4 shortly to go to timer minutes...
  • Page 21 StarLine V63 installation and user manual Press the button 4 shortly to go to sound signals volume setup or turn to silent mode: remote display button 2 — remote signals volume setup: — loud signals; — quiet signals. button 3 — enable silent mode —...
  • Page 22 (tag mode is enabled) Press button 3: (tag mode is disabled) Turn remote in a tag mode if StarLine V63 operates in a SLAVE mode. See at p. 53. If during 8 sec no any buttons pressed, remote will exit the...

  • Page 23: Security Arming With Confirmation Signals

    StarLine V63 installation and user manual The system security and anti- theft functions Security arming with confirmation signals Before security arming make sure that: • ignition is Off; • trunk is closed. Press the remote button 1: remote motorcycle • 1 horn signal will follow;...

  • Page 24: Security Arming Without Sound Confirmation Signals

    StarLine V63 Security arming without sound confirmation signals Before disarming make sure that: • ignition is Off; • trunk is closed. Press remote control button 1 until sound signal , then shortly: remote motorcycle • 1 light flash will • 1 sound signal will follow;...

  • Page 25: Silent Security Mode Arming

    StarLine V63 installation and user manual Silent security arming All sound signals in silent security mode are absent in case of any sensors detection. Panic is indicated with only light alerts. Press remote button 1 long until sound signal, then press button 2 shortly:...

  • Page 26: Auto Security Arming

    StarLine V63 Automatic security arming For automatic security arming this function should be activated and the particular icon should be indicated on remote display. Press remote button 1 until sound signal then press button 3 shortly: motorcycle remote • 1 light flash will follow •...

  • Page 27: Auto Security Arm Return

    StarLine V63 installation and user manual Automatic arm mode return If ignition was not switched On during 30 sec after security disarming, so the system will turn back to an arm mode. Attention! The repeat security arming will be confirmed with 1 siren signal and 1 light flash.

  • Page 28: Self Diagnostics While Arming

    StarLine V63 Self diagnostics in security arming The system checks all the secured zones when arm mode is activated. • trunk is closed improperly; • trunk limit switch is faulty (constantly closed). Arm the security with pressing remote button 1.

  • Page 29: Security Disarming With Confirmation Signals

    StarLine V63 installation and user manual Security disarming with confirmation signals Disarm security with pressing remote button 2: remote motorcycle • 2 siren sound signals will follow; • 2 sound • 2 light flashes will signals; follow. • disarm mode indication will appear.

  • Page 30: Security Disarming Without Sound Confirmation Signals

    StarLine V63 Security disarming without sound confirmation signals. Press remote button 2 long until sound signal appear, then press shortly: motorcycle remote • 2 light flashes will • 2 sound signals will allow; • security disarm mode indication follow. will appear.

  • Page 31: Disarming Without Remote Control Use

    StarLine V63 installation and user manual Security disarming without remote control Security disarm without remote algorithm depends on the chosen disarm way: with personal code or without. The chosen way is indicated on remote LCD display. remote remote • Disarming with personal •...
  • Page 32 StarLine V63 During 3 sec after LED indicator is turned off switch On and Off ignition again 3 times in a row. motorcycle • 2 siren sound signals will follow; • lights will flash 2 times; • security mode will disarm.
  • Page 33 StarLine V63 installation and user manual During 3 sec after LED indicator is Off switch ignition following way: ON- OFF - ON - OFF - ON - OFF - ON. motorcycle • 4 siren sound signals will follow. Turn off ignition.

  • Page 34: Selfdiagnostics While Disarming

    StarLine V63 Self diagnostics while security disarming While disarming security the system informs about sensors activation alerts occurred while arm mode. Disarm security with any of methods (see p. 29–31): • If alert signals were interrupted from remote control: motorcycle remote •...

  • Page 35: Alarm Mode Signals

    StarLine V63 installation and user manual Alarm signals If any of security sensors is triggered in the guard mode this will automatically activate alarm signals: siren sounds and light flashes. The remote will give alert beep sounds and the display will indicate the alarm activation reason.

  • Page 36: Abort Alarm Signals Without Disarming

    StarLine V63 Remark: 1) If the reason of alarm activation will not be eliminated after alarm cycle finish (for example, trunk is still open), so the corresponding zone will be cancelled from security contour until the alarm reason is eliminated (for example, until trunk will be closed). At this time...

  • Page 37: Systems Protection Against Power Disconnection

    StarLine V63 installation and user manual System protection from the power disconnection Short power disconnection (for example, battery terminal removing) does not disarm the system. It remembers the state and will keep the previous state after power supply recovery (see the state table). After power supply recovery: •...

  • Page 38: Anti-Hijack Mode Engage With Remote

    StarLine V63 Anti-hijack mode enabling with remote While ignition is on or engine is operating press and hold 1 and 3 remote buttons together: motorcycle remote • alarm beep will • light and sound signals will turn; sound; • constant engine blocking will •...

  • Page 39: Panic Mode

    StarLine V63 installation and user manual Panic mode» While Panic mode activation the light and sound alarm signals are turned on for 15 seconds. With ignition Off press 1 and 3 remote buttons long and simultaneously : motorcycle remote • light and sound alarm •...

  • Page 40: Immobilizer Mode

    StarLine V63 Immobilizer mode In immobilizer mode enabled the engine will be blocked automatically after 30 seconds sinse every ignition disabling. Immobilizer mode enabling Press remote button 1 long until beep sound appear and then press button 4: motorcycle remote •...

  • Page 41: Engine Blocking Switch Off In Immobilizer Mode

    StarLine V63 installation and user manual Engine blocking disabling in immobilizer mode Press remote button 2 shortly: motorcycle • the engine blocking will disable; • 2 siren sounds will follow. Immobilizer mode disabling Press remote button 1 long until beep...

  • Page 42: Motorcycle State And Battery Voltage Control

    StarLine V63 The system service functions Motorcycle state and battery voltage control You may use this command in any mode to check the present system state and battery voltage. Press remote button 3 shortly: remote • melodic sound will follow;...

  • Page 43: Shock Sensor Temporary Deactivation

    StarLine V63 installation and user manual Temporary shock sensor disabling Press button 1 twice shortly in guard mode: motorcycle remote • melodic signal will sound; • 2 light signals • temporary disable of shock sensor will follow; 1 (warning) level will appear.

  • Page 44: Tilt Sensor Temporary Deactivation

    StarLine V63 Tilt sensor temporary deactivation Press button 2 twice shortly in a guard mode: motorcycle remote • 3 light signals • melodic signal will sound; will follow; • temporary tilt sensor disable indication will appear. • tilt sensor will disable.

  • Page 45: Lcd Remote Battery Voltage Control

    StarLine V63 installation and user manual Remote battery charge control on a display Remote battery charge control is performed in every buttons pressing. remote • in a critical battery discharge the corresponding icon will appear on a display; • need replace the battery.

  • Page 46: Remote Buttons Locking

    StarLine V63 To anable Valet mode press again button 2 long until beep sound, then press button 1 shortly: motorcycle remote • 2 light flashes will • melodic signal will sound; follow. • icon will be disabled. Remote buttons locking remote •...

  • Page 47: Remotes Registration To The System Memory

    StarLine V63 installation and user manual Remotes registering to the system memory Remotes registering is performed in disarmed mode in the following order: Turn On and Off the ignition 3 times in a row. motorcycle • LED indicator will turn on for 3 seconds.

  • Page 48: Emergency Disarm Password Setup Or Changing

    StarLine V63 Turn Off ignition motorcycle • 3 light flashes will follow Warning! Total 4 remotes can be registered to the system memory. While new remotes registration it is necessary reregister old ones, otherwise they will be deleted. For 1-way 3-buttons remote registration use also 1 and 2 buttons combination.
  • Page 49 StarLine V63 installation and user manual Turn ignition On and Off 4 times in a row and hold it On during 5 seconds after LED indicator is turned Off. motorcycle remote • 4 siren sounds will • personal password empty spaces follow.

  • Page 50: Integrated Shock Sensor Setup

    StarLine V63 Integrated shock sensor setup StarLine V63 provides only main shock sensor level sensitivity setting. Warning level of shock sensor is automatically set in half of main level sensitivity. Main shock sensor level is setup with remote. Total 8 sensitivity levels are exist.

  • Page 51: Integrated Tilt Sensor Setup

    StarLine V63 installation and user manual Integrated tilt sensor setting Integrated tilt sensor setting is handled with remote control. Total 8 sensitivity levels exist. 1 – max sensitivity; 8 – min sensitivity. Press button 4 long until beep signal sounds, then press shortly:...

  • Page 52: Horn Confirmation Signals Volume Setup

    StarLine V63 Confirmation signals volume level setup Confirmation signals volume level is setted with remote. Total 9 volume levels exist. 1 – min volume; 9 – max volume. Press button 4 long until beep signal sounds, then press button 1 shortly:...

  • Page 53: Slave Mode General Information

    Main terms and determinations Tag - autonomous автономное receiving - transmitting devicewhich can be recognized by system in a short distanse. Both StarLine V63 main and additional remotes can be used as a tag. Below in text the tag means any of main or additional remotes turned to the tag mode (see.

  • Page 54: System Control In Slave Mode

    To disarm security and disable engine blocking the tag should be detected in visibility zone. If StarLine V63 detects the tag after guard arming , so the guard mode will be disarmed and engine wblocking will disable.
  • Page 55 StarLine V63 installation and user manual Guard mode arming Before arming the guard make sure that ignition is Off. Press and release the brake pedal (clutch or etc.) motorcycle • 1 light flash will follow; • 2, 5 or 10 seconds later the guard mode will be armed;...
  • Page 56 StarLine V63 Guard disarming Press and release the brake pedal (clutch or etc.) Tag search will start (owner authorization). Search will proceed during 20 seconds. Authorization is passed successfully, the tag is detected. motorcycle • 2 light flashes and 2 siren sounds will follow;...
  • Page 57 When a mark is detected the interactive radio dialog between StarLine V63 main unit and the tag is activated. If the label is identified as "owner", StarLine V63 will disarm the guard and disable the engine lock.

  • Page 58: Slave Mode Activation

    StarLine V63 SLAVE mode enabling Requirements for motorcycle SLAVE mode can be activated on any motorcycle with the onboard voltage 12V. There is no any other technical requirements. Turning the main unit to SLAVE mode and selecting the control input.
  • Page 59 StarLine V63 installation and user manual To enable SLAVE mode and control input selecting press button 2 or 3. remote Pressing button 1: SLAVE is disabled. Pressing button 2: SLAVE is enabled ontrol input – trunk input (orange-white wire). Pressing button 3: SLAVE is enabled control input –...
  • Page 60 The main remote operating distance setup If the parking lot is near to owner position (for example, motorcycle is placed near the house), so StarLine may always see the tag. It can lead to illegal motorcycle possessing. ДTo avoid this situation the tag operating distance should be setted to a minimal value stable communication distance! The special distance setting procedure is provided (see below).
  • Page 61 StarLine V63 installation and user manual • – min operating distance; • – max operating distance; • button 2 – increase distance; button 3 – decrease distance. 2) Turn the main unit to a distance setup mode In disarmed guard mode turn ignition On and Off 3 times.
  • Page 62 StarLine V63 In case of a tag stable connection the system manin unit the symbol will be indicated on display in 5 seconds every time after pressing the button: • stable connectionwith the • connection is instable system main unit.
  • Page 63 StarLine V63 installation and user manual Turning the additional remote to a tag mode Press and hold button 1 of remote. The buttons lock should be disabled!) The LED indicator will turn on: • red color, if the remote is in a regular mode;...
  • Page 64 StarLine V63 The additonal remote - tag distance setting 1) Turning the main unit to the distance setting mode In a guard off mode turn ignition On and Off 3 times. • the LED indicator will turn on for 3 seconds В...
  • Page 65 StarLine V63 installation and user manual 3) Distance setting The operatin range is adjusted with pressing button 2 (increasing) and 3 (decreasing). Every button pressing is accompanied with remote beep sound. When the min or max value is reached melodic signal will sound.
  • Page 66 StarLine V63 Setting the guard arm delay time The guard arm delay is needed, for example, to leave the microwave detecting range before the guard mode is armed. In disarmed guard mode turn ignition On and Off 3 times. • the LED indicator will turn on for 3 seconds During 5 seconds after LED indicator shut down turn ignition On and Off 9 times and leave it On.

  • Page 67: Control Input

    StarLine V63 installation and user manual The control input To arm and disarm the guard mode and to disable the engine blocking one of 2 system inputs are used. This input is named as control input. 1. Control input – this is the system analog input. As the control input Either trunk input (orange-white wire) or auxiliary sensor input (orange-gray wire) can be used as control input.

  • Page 68: Enter The Personal Code To Owner Authorization Or Emergency Disarm And Engine Blocking Deactivation

    StarLine V63 Entering the personal authorization password or emergency disarm and engine block disable password. The guard disarming and engine blocking disabling depends on the selected deactivation way: with the personal password or without. The chosen variant is indicated on the remote display.
  • Page 69 StarLine V63 installation and user manual 2 seconds after the 1st step turn ignition On and Off 3 times during 3 seconds. motorcycle • the LED indicator will turn on for 3 seconds. During 3 seconds after LED indicator shut down turn ignition On and Off 3 times again.
  • Page 70 StarLine V63 During 3 seconds after LED indicator shut down tirn ignition On and Off 4 times and leave it On. motorcycle • 4 siren sounds will follow Turn ignition Off motorcycle • the LED indicator will start flashing, counting the digits of personal password: 1 flash –...

  • Page 71: Trunk Input Mode Programming

    StarLine V63 installation and user manual Programming the trunk input mode The trunk input (orange-white wire) operating logic can be programmed for different trunk protection sensors. If the ordinary limit switch is used program the input mode to the variant Р1 - 1 (NO mode), if the magnetic sensor is used –...

  • Page 72: Auxiliary Sensor Input Operating Mode Programming

    StarLine V63 Select proper trunl input operating mode with remote buttons 2 and 3: remote • Button 2 – NO mode Р1 - 1; • Button 3 – NC mode Р1 - 2. NC – normally closed; NO – normally open. (the factory...
  • Page 73 StarLine V63 installation and user manual Turn ignition On and Off 3 times. • the LED indicatr will turn on for 3 seconds. During 5 seconds after the LED indicator shut down turn ignition On and Off 7 times and leave it On.

  • Page 74: System Installation And Connection General Assembly Instructions

    Installation and connection of the system General installation requirements StarLine V63 is intended for installation to the motorcycles with 12V onboard voltage. - Before installation make sure all the motorcycle equipment and circuits, to which the systems to be connected, are in good condition and no any original equipment errors are indicated.

  • Page 75: System Components Placement

    Installetion of the magnetic sensor The magnetic sensor is used for trunk opening and closing detection. StarLine V63 cdelivery kit contains 1 magnetic sensor with the magnet and the reed switch. Fix the magnet sensor inside the trunk. For example, with the screws from dlivery set.

  • Page 76: 14-Pin Main Unit Socket Connection

    StarLine V63 < 15 The gao vetween magnet and reed switch is less than 15 мм Maximum load power - 500 мА The operating temperature range -40 ... +85 °С magnet reed switch For the corect system working with the magnet sensor need set the NC (normallly closed) operating mode for the trunk input (see p.
  • Page 77 Max load current below 300 mA. Orange-gray wire — auxiliary sensor connection input. The triggering of this input sensor is indicated on display with this con: Violet wire — вStarLine M17 tracker control wire. Need 2 additional resistors connection, see diagram on p. 82.

  • Page 78: Starline V63 Connection Diagram

    StarLine V63 StarLine V63 connection diagram black orange-white orange-grayy red thin yellow black-white gray green-black black-yellow blue blue-red blue-white violet...
  • Page 79 StarLine V63 installation and user manual trunk limit switch input polarity to be programmed, see p. 71) auxiliary microwave sensor input polarity to be programmed, see p. 72) LED indicator ignition positive input ignition lock antenna (do not connect) horn positive...

  • Page 80: Gps Tracking And Sms-Notifications

    SMS-command «1234 IN+– А M+». Self trip tracking StarLine M17 should be setted to tracking activation when ignition is On. The tracking stops when ignition is off. * This function is available in case of StarLine M17 tracjer is connected.

  • Page 81: Starline M17 Tracker Setup With Connection To Starline V63

    Perform initial StarLine М17 tracker setup according to the manual instruction. Make connection of StarLine М17 to StarLine V63 according to the connection diangram on p. 82. Setup below settings by sending SMS- commands to the tel. number of tracker's SIM-card:...

  • Page 82: Starline V63 И Starline М17 Connection Diagram

    StarLine V63 Diagran of StarLine V63 connection to StarLine M17 tracker StarLine V63 black +12 ˜ Ignition lock yellow violet...
  • Page 83 StarLine V63 installation and user manual StarLine 17 resistor1 k m (in delivery set) resistor 27 k m (in delivery set)

  • Page 84: Remotes Batteries And It's Replacing Replacing Battery In Lcd 2-Way Remote

    StarLine V63 The remote controls batteries and it's replacing The different types of batteries are used in the attached remotes: • 2-way LCD remote has 1 «AAA» 1,5 V Ni-Mh (NiCD) battery; • 1-way remote has 1 «CR2450» 3,0 V Li-Ion battery;...

  • Page 85: Replacing Battery In 1-Way Remote

    installation and user manual 2. Insert the new battery, observine the proper polarity. Correct battery position is specified on the remote body under the cover in battery slot. ЗClose the battery slot cover. 3. Setup the current time after battery replacing. 1-way remote battery replacing 1.
  • Page 86 The producer keeps the right for technical improvements and software upgrading without the preliminary notice. Manufacturer: ScPA "StarLine"» 194044, Komissara Smirnova, 9 Saint-Petersburg, Russian Federation...
  • Page 87 warranty coupon ГАРАНТИЙНЫЙ ТАЛОН...
  • Page 88 warranty coupon ГАРАНТИЙНЫЙ ТАЛОН...
