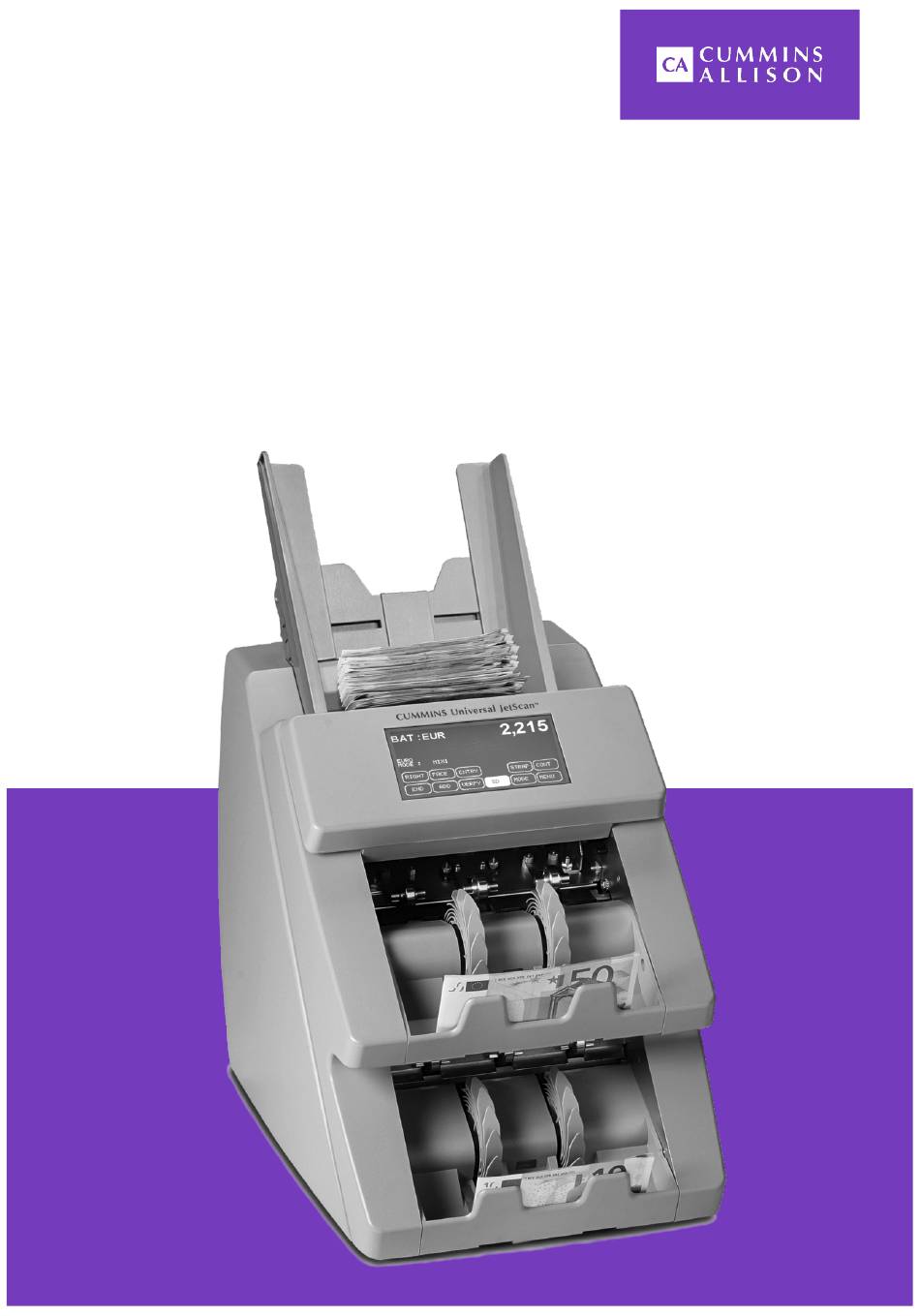

- Page 1 Universal JetScan ® Two-Pocket Note Scanner User Guide...
-
Page 2: Safety Information, Power Specifications
High voltage inside. Risk of electric shock. Turn power OFF and unplug power cord from machine before cleaning. Do not attempt repairs. Repairs must be made by authorized Cummins Allison personnel. Plug three-prong grounded plug (supplied) into properly grounded three-prong outlet. -
Page 3: Table Of Contents
Variations of Basic Operating Modes ..............8 HOW TO PROCESS NOTES..................11 DAILY CLEANING PROCEDURES ................12 ................12 ECOMMENDED LEANING ATERIALS ......................12 AILY LEANING STOPPING CONDITIONS AND RECOVERY STEPS ........... 17 Two-Pocket Universal JetScan Note Scanner All Models ®... -
Page 4: Machine Diagram
Machine Diagram Thickness adjustment dial Adjustable (behind the hopper) Feeder plate (closeup below) hopper guides Center rubber-drive tire Start sensor Black feed rollers Touch-panel display Release lever Release lever Power switch/power cord (on back of unit) Stacker sensor Stacker wheels Pocket one Stacker mirror Stacker sensor... -
Page 5: Main-Operating Screen
(portrait FACE side up) or face down (back side up). Notes with the opposite facing are delivered to pocket two. Universal JetScan is not tracking counts in this mode. CNTRY This key is used to select a specific country’s currency for processing. - Page 6 This key enables the ability to review a count suspected of being VERFY inaccurate without adding to current totals and batch (strap) counts. Suspect document (SD) or counterfeit (CF) appears on Universal JetScan keyboards and displays. SD and CF are different names for the SD/CF same function.
-
Page 7: The Basics
Do not operate with exposed long hair, neckties, jewelry or loose clothing. The hopper is the area on top of Universal JetScan where notes are placed for processing. The hopper guides are adjustable and feature a series of numerical settings which correlate to the width of the notes. -
Page 8: Thickness Adjustment Dial
Thickness Adjustment Dial This gray dial, located on top of the Universal JetScan, adjusts the tightness of the feeder through which notes pass during operation. The dial features a series of numbers, with 0 being center. Negative numbers, such as -1 and -2, appear to the left of 0. -
Page 9: Mixed
In SETUP, users have (Stranger 1) the option to either offsort into pocket two or stop in pocket one or two on no-call, suspect-document or stranger notes, as well as double, chain or spacing errors. Two-Pocket Universal JetScan Note Scanner All Models ®... - Page 10 MIX2 machine stops and presents no-call or suspect-document notes, as well as (Mixed 2) double, chain or spacing errors, in the pocket into which Universal JetScan currently is sorting. The machine scans notes of all denominations while facing or orienting.
- Page 11 The machine stops and presents no-call or suspect-document notes, as well as double, chain or spacing errors, in the pocket into which Universal JetScan currently is sorting. The machine scans notes of all denominations while facing or orienting. It is best used when notes are in a presorted stack (denominations sorted and then stacked together).
-
Page 12: How To Process Notes
Entanglement and drawing-in hazard. Do not operate with exposed long hair, neckties, jewelry or loose clothing. 7. Place notes in the hopper; Universal JetScan automatically will begin processing and automatically will stop when all documents have been processed. © 2014 Cummins-Allison Corp. -
Page 13: Daily Cleaning Procedures
Daily Cleaning Procedures Daily cleaning of the Universal JetScan note scanner is recommended to ensure maximum productivity and reliability, especially for high-volume applications, as well as for operations that process highly circulated (dirty) notes. Recommended Cleaning Materials Simple Green, the recommended cleaning agent, can be an eye irritant. - Page 14 Turn power OFF (rocker panel to 0). Disconnect power cord from the rear of the Universal JetScan. Lift adjustable hopper to the upright position. Start sensor Remove feeder plate as shown. Firmly push down on left and right release levers and pull front enclosure open for access to paper path.
- Page 15 Be sure to clean the two sensors and two reflectors in the paper path. Reflector (left) and sensor (right). Push the front enclosure back until it clicks into its normal operating position. Two-Pocket Universal JetScan Note Scanner All Models ®...
- Page 16 In pockets one and two, use a microfiber towel or vacuum to clean the stacker-sensor lens located between the two gray stacker wheels. In pockets one and two, use a microfiber towel or vacuum to clean the stacker mirror located directly across from the stacker-sensor lens.
- Page 17 Turn power ON (rocker panel to I). Perform a test run with some notes. Two-Pocket Universal JetScan Note Scanner All Models ®...
-
Page 18: Stopping Conditions And Recovery Steps
Stopping Conditions and Recovery Steps Universal JetScan will stop for a variety of reasons, all of which require action by the user. Condition Action Universal JetScan may have Remove all notes from the pocket indicated on the screen and place them processed two or more notes as on the hopper. - Page 19 Universal JetScan will start, and this note will This note has not been included be added to the count.
- Page 20 Condition Action If Universal JetScan is configured Remove the top note in the pocket indicated on the screen, correct its in SETUP to stop on non-oriented orientation, and put it back in the same pocket. Then press CONT. This notes, it will stop and display note will be added to the appropriate batch (strap), sub-batch, batch and “ORIENTATION ERROR”...
- Page 21 Remove all notes in the pocket indicated on the screen and place them in two or more notes that were the hopper. Press CONT to restart processing. Universal JetScan will revert improperly spaced. to the previous starting point before the “SPACING ERROR” occurred, with no impact on batch (strap), sub-batch, batch and day totals.
- Page 22 Condition Action Universal JetScan sensors have Inspect the top note in the pocket indicated on the screen. detected a possible counterfeit If it is identified as a counterfeit, place it aside and press CONT. It will not be note.
- Page 23 Condition Action Universal JetScan sensors have Inspect the top note in the pocket indicated on the screen. detected a possible counterfeit If it is identified as a counterfeit, place it aside and press CONT. It will not be note.
- Page 24 For proper removal of jammed notes, see Action, Step 2. Condition Action, Step 1 Universal JetScan has detected a A. Remove all notes from the hopper and both pockets. jam condition. This stopping condition is present in all operating modes.
- Page 25 Gently press down on the feeder plate until it snaps into position. Curved edge Action, Step 6 Return hopper to the operating position. Press CONT. Rerun all notes that were in the hopper and both pockets at the time of the jam. Two-Pocket Universal JetScan Note Scanner All Models ®...
- Page 26 Cummins-Allison Corp. has endeavored to make the content of this document accurate and complete, but this information is subject to correction or change without prior notice. This manual contains proprietary information of Cummins-Allison Corp. It is intended solely for the information and use of parties authorized by Cummins Allison to maintain the equipment described herein.
