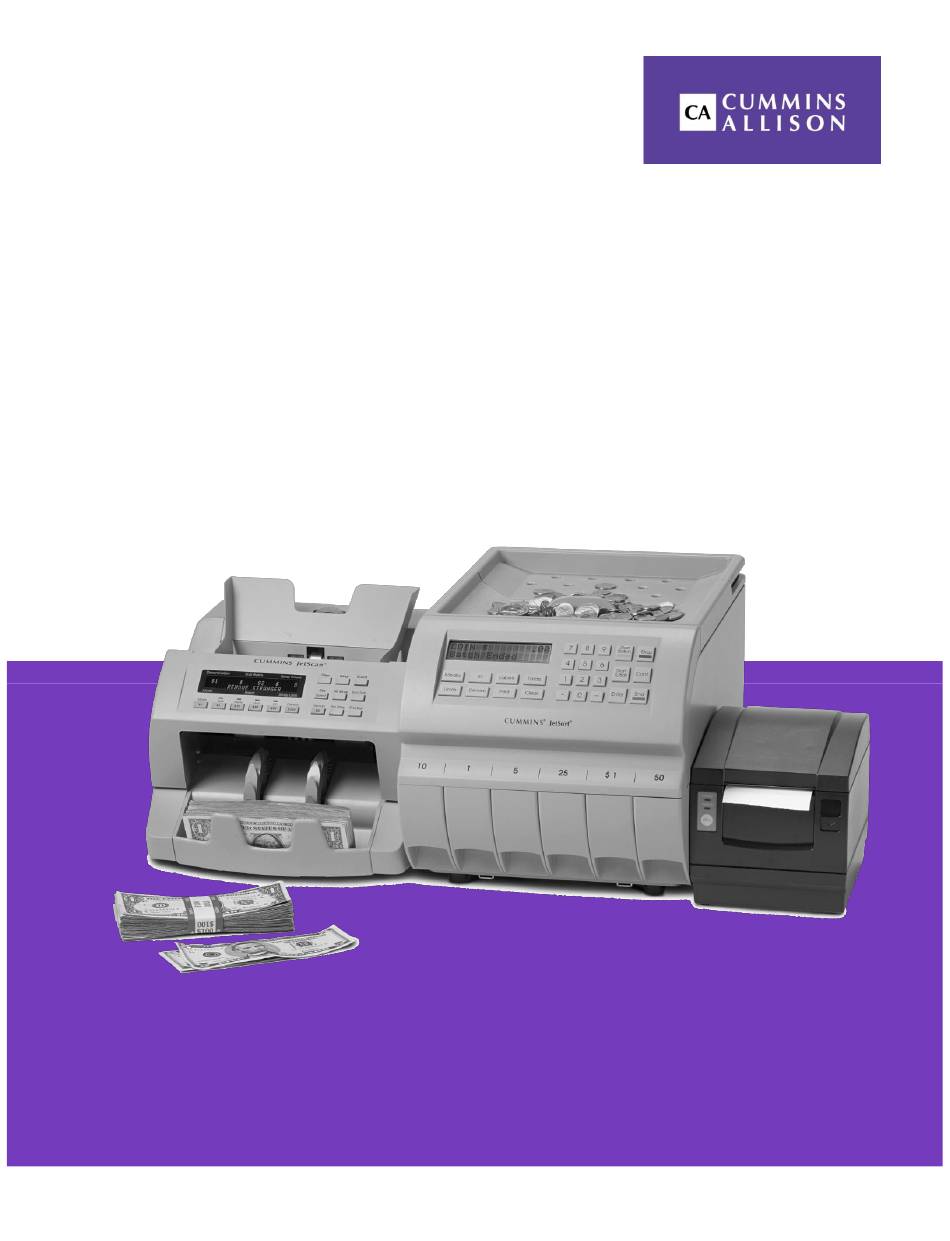

JetSort interface ® Model 1606 to JetScan or JetCount ® ® Operating instructions...
Page 2
Introduction The JetSort® model 1606 can be interfaced with a JetScan® Single-Pocket and Dual-Pocket currency scanner or a JetCount® currency counter. The JetSort acts as the host to the JetScan or JetCount and can display and print machine totals, depending on how these functions are programmed through setup.
Setup Setup Mode Function Keys Key functions change when in Setup Mode. Note the following key functions while navigating through the setup screens. JetSort Function Keys Key Names Function Description Scroll Forward: Start S/Bat With cursor on top line, scrolls forward through menu screens. With cursor on bottom line, scrolls forward through selection options.
Connecting Your JetSort Install Software Kit 2 and Kit 4 before connecting the JetScan (model 4062 and higher) or JetCount (model 4020 or higher). JetScan and JetCount Bilcnt must be set to AUTO or DEMND. Program JetSort to Operate with JetScan or JetCount To set bill count and print features: 1.
Page 5
Set Peripheral Device, Baud Rate, Stop Bits and Parity JetSort has four communication ports. In order to connect a JetScan or JetCount, baud rate, stop bits and parity must be set. The exact settings for baud rate, stop bits and parity are irrelevant as long as the JetSort settings match the JetScan or JetCount settings.
Page 6
Set JetScan or JetCount Communication Ports To set port to match JetSort baud rate, stop bits and parity. 1. Press and hold key 15. 2. Press key 3 for the SETUP menu. 3. Press key 5 until PORT 1 STATUS menu is reached. 4.
How to Use Batch Processing Start Batch with JetSort and JetScan 1. Pour coins from lift tray into coin hopper. 2. On the JetSort, press START BATCH. 3. On the JetScan, select a currency Operating Mode (Count, Sort or Mixed). 4.
Strap Limits – JetScan When JetScan operates in Stranger, Sort and Count Modes, JetSort displays Strap Limit messages when denomination counts exceed set limits for a denomination. Strap limits are programmed through the JetScan SETUP menu. For more information, see the JetScan Single-Pocket Operating Instructions JetScan Two-Pocket Operating...
Correcting Manually Entered Currency/Data If an incorrect value is entered on the keypad, but ENTER has not yet been selected, press CLEAR and re-enter the correct value. If an incorrect value is entered and ENTER has been selected, an adjustment amount must be entered. To make an adjustment to a media balance, enter on the numeric keypad the amount which must be adjusted (added or subtracted from the amount previously entered).
Subtract from JetScan Totals through JetSort 1. From the Batch Waiting condition, press MEDIA. 2. Press DENOM to select the desired denomination. 3. Press CLEAR. JetSort will clear counts of the selected denomination. 4. Press DENOM to cycle through the denomination screens until the following screen appears: 13.48 COMPLETE <ENTER>...
