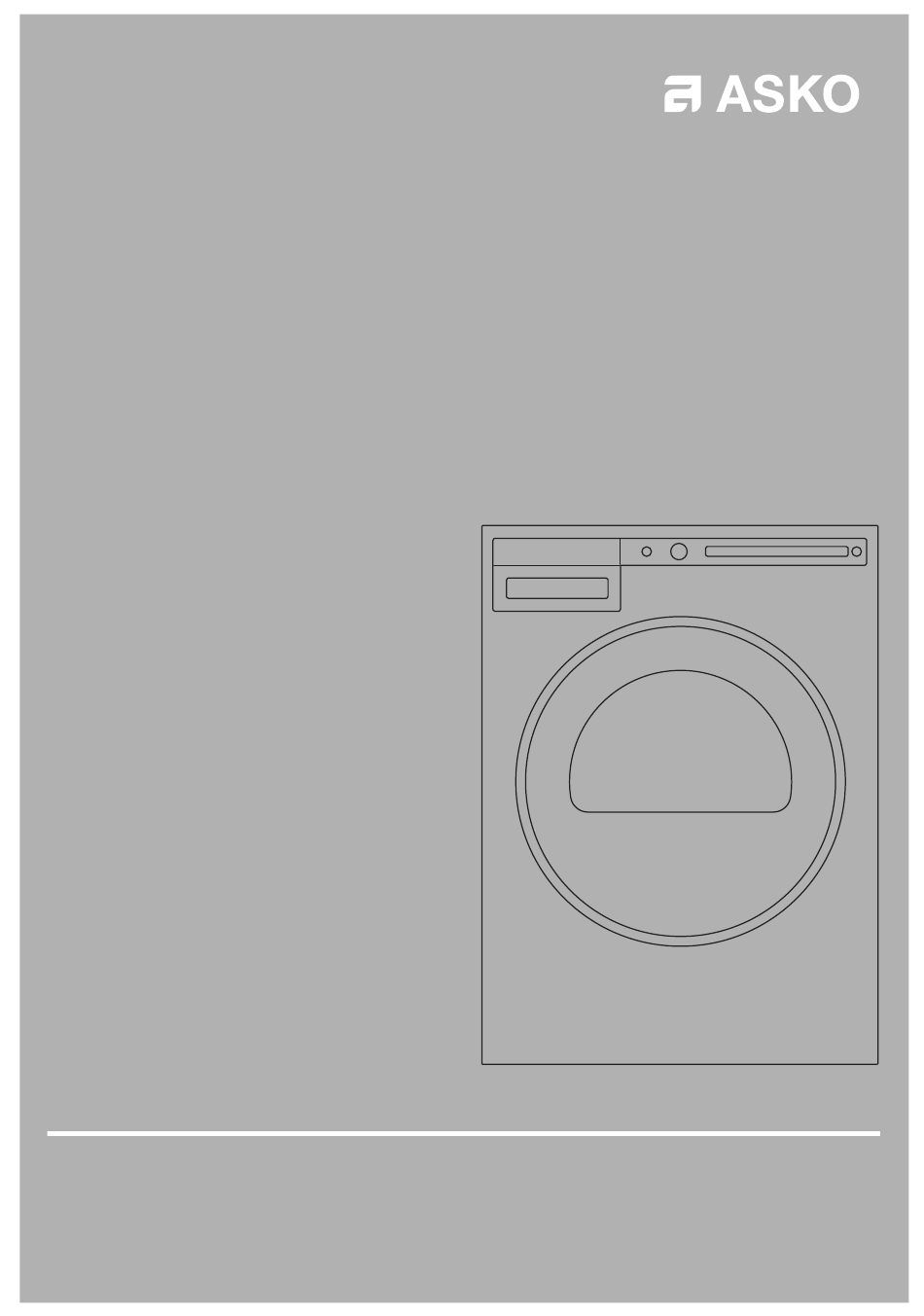

- Page 1 INSTALLATION INSTRUCTIONS Vented Tumble Dryer DOMESTIC TD85 Carefully read the instructions for use before using the dryer.
-
Page 2: Installation
See also the general Safety Instructions in the Use & Care Guide. Cosmetic damage must be reported to the ASKO dealer within fi ve days from the date of purchase. As soon as you unpack the machine, thoroughly check it for cosmetic damage. - Page 3 Never block the air exhaust (evacuation Freestanding appliance opening). The dryer may be placed adjacent to a washing machine. At least two persons are required to install the If the friction between the dryer feet and the fl oor is tumble dryer on top of a washing machine.
- Page 4 (A+B), supplied in the cardboard box in the dryer drum. Tipping guard part B is designed to fi t on ASKO 100 mm (4") washing machines and it may be hard or impossible to mount on appliances of other brands.
- Page 5 How to stack a dryer onto the washing machine (ASKO): There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard. The tipping guard consists of two metal parts (A + Use two screws to attach the A part to the back of the dryer.
-
Page 6: Changing The Door Opening Direction
CHANGING THE DOOR OPENING DIRECTION To change the direction of door opening, proceed as follows. Open the door fully. Undo the screws and remove the door. Use the screwdriver to remove the door lock cover and undo the screw on the door lock. Push the door lock upwards and remove it. - Page 7 Undo the door hinge assembly (left) and the door latch assembly (right), switch their positions, and replace the screws (door hinge assembly to the right- hand side, door latch assembly to the left-hand side). Use the screwdriver to remove the plastic part more easily.
- Page 8 BUILT-IN Closet Install- Ventilation Requirements ASKO's front panel controls make it possible to install the washers and dryers in a closet. Make sure there is clearance between units and cabinet or wall and a 1" (25 mm) minimum clearance between the rear edge of the machine top panel and the cabinet or wall.
-
Page 9: Air Exhaust
UL approved vent basket. Asko dryers have a "T-style" exhaust vent that allows you to connect the duct on the rear, on the left, or on the right... - Page 10 Connecting to a ventilation duct To connect the exhaust duct to a ventilation You will need a UL-CSA-approved, 4-inch ridged outlet, follow the steps below: metal exhaust duct. If a fl exible duct is used, it must 1. Connect the exhaust duct to a ventilation exhaust comply with the Outline for Clothes Dryer Transition fi...
-
Page 11: Electrical Installation
4-wire installations. machine or an equivalent. These Electrical Connection instructions provide for ASKO washers rated 208–240 V have two internal installing the dryer in the following situations: fuses of 15 A each. 3-wire connections where local codes permit... - Page 12 3. Use the strain relief attached below the terminal 1. Turn the power off at the breaker/fuse box. block opening. 2. Remove terminal block cover. 4. Loosen or remove center terminal block screw. 3. Use the strain relief attached below the terminal block opening.
- Page 13 NOTES Customer Care Center, 1-800-898-1879, www.askona.com...
- Page 14 NOTES Customer Care Center, 1-800-898-1879, www.askona.com...
- Page 15 NOTES Customer Care Center, 1-800-898-1879, www.askona.com...
- Page 16 www.askona.com We reserve the right to modifi cations. TD85 SPO DOM US/CA en (08-19)
