Tumble Dryer

INSTRUCTIONS FOR USE

T611VU.W.U

TD85.21XX

Carefully read the instructions for use before using the dryer.

Table of Contents

Need help?

Do you have a question about the TD85.21 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Asko TD85.21 Series

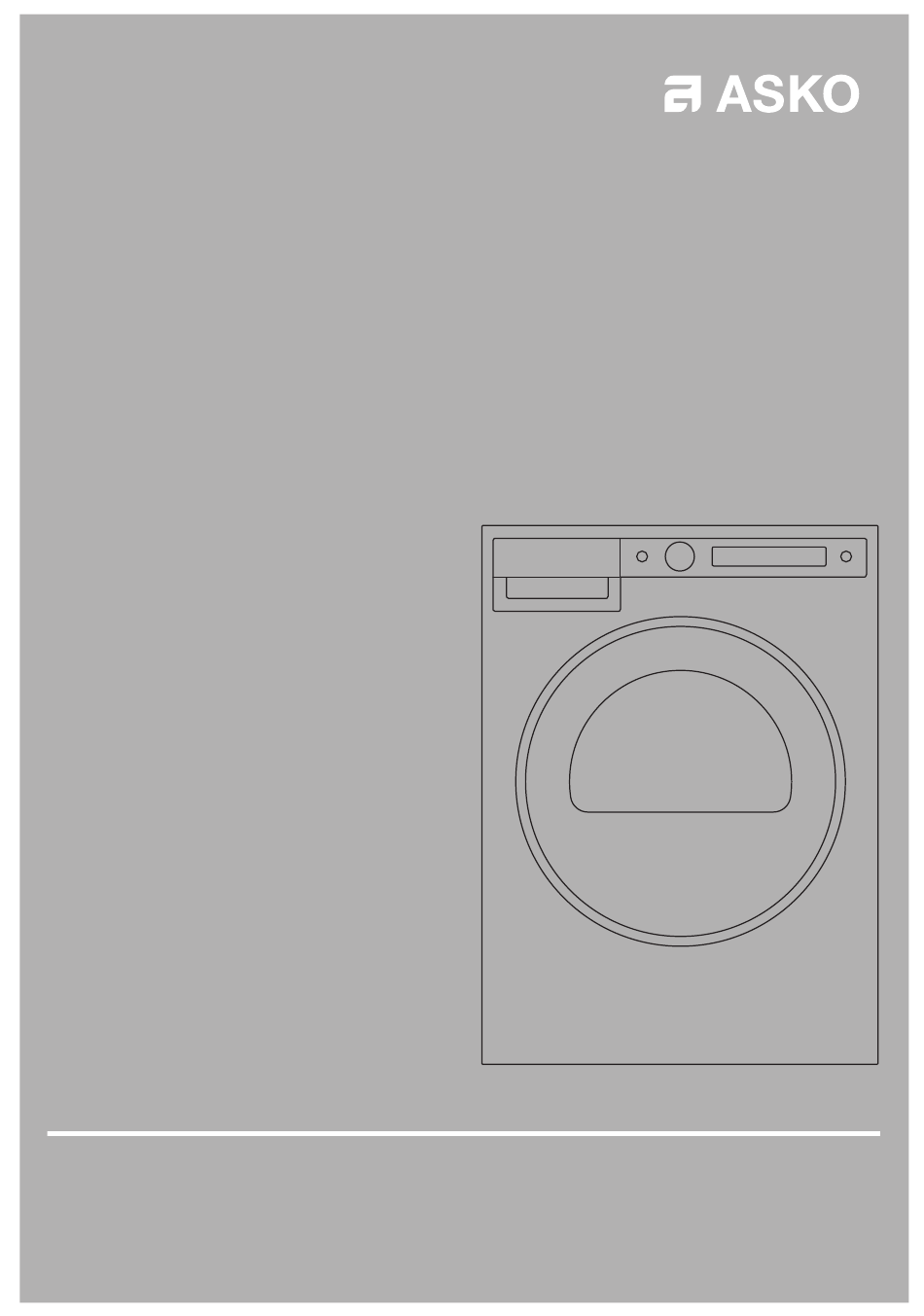

Page 1 Tumble Dryer INSTRUCTIONS FOR USE T611VU.W.U TD85.21XX Carefully read the instructions for use before using the dryer.
Page 2: Table Of Contents
Dear Customer, We thank you for purchasing this quality ASKO product. We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality, and high quality. These are the key characteristics of all our products, and the reason why they are highly appreciated across the globe.
Page 3: Important Safety Instructions
16. The interior of the machine should be cleaned periodically by an authorized ASKO service agent. 17. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch ﬁ...
Page 4 heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated. 18. Clothes dryer installation must be performed by a qualiﬁ ed installer. 19.
Page 5: Grounding Instructions
a) For a grounded, cord-connected appliance: GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance (Canadian market only) is equipped with a cord having an equipment-grounding conductor and a grounding plug.
Page 6 KIDSAFE™ CHILD SAFETY • WARNING! Do not allow the children to play with the dryer. • Prevent your children and pets from entering the dryer drum. • Before closing the dryer door and running the program, make sure there is nothing except laundry in the drum (e.g.
Page 7: Dryer Description
DRYER DESCRIPTION Main switch (ON/OFF) Program selector knob 2 3 4 5 Display unit Program selector buttons Button (start/pause) Rating plate with information about the dryer (on the inside of the dryer door) QR and AUID code (on the inside of the dryer door) Dryer door Door net ﬁ...
Page 8: Before Using The Appliance For The First Time
BEFORE USING THE APPLIANCE FOR THE FIRST TIME PACKAGING Remove all packaging. Please sort the materials in compliance with local recommendations (see chapter "DISPOSAL"). CLEANING Disconnect the dryer from the power mains and open the door towards you. Before using the dryer for the ﬁ rst time, clean the dryer drum using a soft damp cotton cloth and water No program can be started while the door is open.
Page 9: Installation And Connection
ﬁ xed to it, to avoid the risk of falling. ASKO original accessories are available for this purpose, complete with ﬁ xing instructions. Place the dryer so that it is stable. Use a spirit level to level the dryer horizontally and vertically by rotating the adjustable feet using a No.
Page 10 (A+B), supplied in the cardboard box in the dryer drum. Tipping guard part B is designed to ﬁ t on ASKO 100 mm (4") washing machines and it may be hard or impossible to mount on appliances of other brands.
Page 11 How to stack a dryer onto the washing machine (ASKO): There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard. The tipping guard consists of two metal parts (A + Use two screws to attach the A part to the back of the dryer.
Page 12: Changing The Door Opening Direction
CHANGING THE DOOR OPENING DIRECTION To change the direction of door opening, proceed as follows. Open the door fully. Undo the screws and remove the door. Use a screwdriver to remove the door lock cover and undo the screw on the door lock. Push the door lock upwards and remove it.
Page 13 Undo the door hinge assembly (left) and the door latch assembly (right), switch their positions, and replace the screws (door hinge assembly to the right- hand side, door latch assembly to the left-hand side). Use a screwdriver to remove the plastic part more easily.
Page 14: Air Exhaust
UL approved vent basket. Asko dryers have a "T-style" exhaust vent that allows you to connect the duct on the rear, on the left, or on the right...
Page 15 Connecting to a ventilation duct To connect the exhaust duct to a ventilation You will need a UL-CSA-approved, 4-inch ridged outlet, follow the steps below: metal exhaust duct. If a ﬂ exible duct is used, it must 1. Connect the exhaust duct to a ventilation exhaust comply with the Outline for Clothes Dryer Transition ﬁ...
Page 16: Connecting To The Power Mains
ASKO washers rated 208–240 V have two internal fuses of 15 A each. The Any repair and maintenance pertaining to safety machine should only be connected to a grounded or performance should be done by trained experts.
Page 17 ASKO LAUNDRY CARE - HIDDEN HELPERS* Laundry care ironing board The ironing board is a clever solution. It is always handy when you need to iron your clothes, and it can be easily, safely and invisibly stored away when not in use.
Page 18 *AVAILABILITY DEPENDING ON MARKET DENOMINATION ART. No. IRONING BOARD HI1153 White 576552 IRONING BOARD HI1153 Titanium 576553 LAUNDRY CARE DOUBLE HDB1153 White 576554 LAUNDRY CARE DOUBLE HDB1153 Titanium 576555 LAUNDRY CARE SINGLE HSS1053 White 576730 LAUNDRY CARE SINGLE HSS1053 Titanium 576732 LAUNDRY CARE HB1153 White 576733...
Page 19: Tips Before Drying
TIPS BEFORE DRYING This chapter includes several tips on how to prepare the laundry for drying. LAUNDRY SORTING Sort the laundry according to: • type, • fabric thickness. For the most even drying, make sure the laundry is made of a similar material. CLOTHING 1.
Page 20: Laundry Symbols
LAUNDRY SYMBOLS Observe the laundry symbols: Wash cycle Tumble dry cycle Normal wash cycle Machine dry Permanent Press or Wrinkle Normal setting Resistant setting Permanent Press or Wrinkle Gentle/Delicate setting Resistant setting Hand wash only Gentle or Delicate setting Do not wash Do not tumble dry Do not wring.
Page 21 MATERIALS (FABRICS) SUITABLE FOR Static electricity DRYING IN A TUMBLE DRYER To reduce the risk of static electricity in the Material is suitable for tumble drying. laundry after tumble drying, you can: Clothes dried in a tumble dryer will be softer and •...
Page 22: Drying Process
DRYING PROCESS WARNING! - To reduce the risk of electric shock or injury to persons, read the "IMPORTANT SAFETY INSTRUCTIONS" section before operating this appliance. STEP 1: SORT THE FABRICS. See chapter "TIPS BEFORE DRYING" Empty the pockets. Coins, nails etc. could damage the machine and the fabric. STEP 2: TURN ON THE MAIN SWITCH.
Page 23: Choose The Drying Program
STEP 4: CHOOSE THE DRYING PROGRAM. Choose the program by rotating the program selector knob in either direction. Conﬁ rm the program selection by pressing the button under the program. Select the program based on the type and remaining moisture of the laundry. Anticipated program duration is indicated on the display.
Page 24 Program Max. kg* Description (lbs)* BEDDING 5 (11) Use this program for larger items. When the program is complete, they will be completely dry. Adjusted drum rotation prevents the laundry from tangling. To prevent bulky items from bundling, add two tennis balls into the drum.
Page 25: Choosing The Program Settings
STEP 5: CHOOSING THE PROGRAM SETTINGS Using the program settings, the drying programs can be further adjusted to your preferences. Some program settings may not be available for your selected program. Selected program settings will remain stored after the end of the drying cycle and may be changed subsequently (except for delayed start which is not stored after the drying is complete).
Page 26 5. Delay Start Choose the delayed start when you wish the washing program to start after a certain period of time (30 minutes to 24 hours after you press the Start/Pause button). The estimated time remaining until the end of the drying program will be indicated above the "6"...
Page 27 Favourite programs /Add to fav? After the end of the drying program, Wash dried you can use the button 6 to store the program, including all extra settings, as Good ECO performance Start new Add to fav your favourite program. Auto extra Up to 6 favourite programs can be Save Program As Favourite...
Page 28: Close The Door And Start The Drying Process
STEP 6: CLOSE THE DOOR AND START THE DRYING PROCESS. Close the dryer door and press the Start/Pause button. Start (pressed brieﬂ y – start/resume) Pause (pressed brieﬂ y – drying temporarily suspended) Cancel (press and hold the button for 3 seconds) Drying process (circle) is coloured: blue: beginning of the Drying cycle 00:26...
Page 29 To stop and cancel the drying program, press the Start/Pause button and hold it Preparing for program canceling. for 3 seconds. Cooling down. The selected program will be stopped and the cooling stage will begin. Cooling Program canceled. Garments can still be hot.
Page 30: End Of Program
STEP 7: END OF PROGRAM After the end of the drying program, the display will indicate that the drying has 00:00 Drying finished been ﬁ nished ("Drying Finished"). Auto extra If you have selected the "anti-crease" option, the dryer will continue to operate Drying finished after the end of the drying cycle for the amount of time speciﬁ...
Page 31: Settings
SETTINGS In the main menu, use the program selector knob to select Settings. Conﬁ rm the selection by pressing the Program Program Sports wear Conditioning Quick pro Time program Airing Settings Settings button 6. Then, use the program selector knob to scroll the list of settings that can be changed. •...
Page 32: Set Language
Use the button to return to Settings. DISPLAY SETTINGS Set the brightness and logo display. Display settings ASKO Brightness Logo Use the program selector knob or Display brightness buttons to choose the brightness. Conﬁ rm your selection with the button Logo under the logo display On/Oﬀ...
Page 33: Reset Default
CUSTOMIZE FAVORITES AND PROGRAMS The main menu includes the entire set of programs that you can choose using the program selector knob. This setting allows only displaying the selected program in the main menu. Use the program selector knob to select a program.
Page 34: Cleaning And Maintenance
CLEANING AND MAINTENANCE Before cleaning, make sure to switch oﬀ the appliance and disconnect it from the power mains (unplug the power cord from the outlet). CLEANING THE DOOR NET FILTER IN THE DOOR Open the ﬁ lter housing. Pull out the net ﬁ lter. Gently scrape the ﬁ...
Page 35 ADDITIONAL INFORMATION REGARDING CLEANING If you have inadvertently removed the entire net ﬁ lter housing in the dryer door, reinstall it in the same position. Opening on the lower side of the door should occasionally be cleaned with a vacuum cleaner. If necessary, clean the ﬁ...
Page 36: Cleaning The Appliance Exterior
CLEANING THE APPLIANCE EXTERIOR Clean the appliance exterior and the display unit using a soft damp cotton cloth and water. Do not use solvents or abrasive cleaners that could damage the appliance (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Wipe all parts of the dryer with a soft cloth until dry.
Page 37: Errors And Troubleshooting
ERRORS AND TROUBLESHOOTING Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case: • Switch oﬀ the appliance, wait for 1 minute, switch the appliance back on, and repeat the drying program. •...
Page 38 Problem/error Cause What to do? Laundry not dried • Filters are not clean. • Clean the filters (see chapter "CLEANING AND or drying takes too MAINTENANCE"). long. • Dryer is placed in a closed • Make sure there is adequate supply of fresh air room;...
Page 39: Failure Display
FAILURE DISPLAY In case of a failure while a program is in progress, the relevant Error X is indicated on the display unit. Press and hold the INFO button to Error display the error description. Error 3 Switch oﬀ the dryer and turn it back on. Info Errors indicated on the display unit (depending on the model) may include the following: Problem/...
Page 40 INFORMATION before, during, and after the program (depending on the model) Error indication on the display What to do? EN: Steam tank is empty. Please fill water. Fill the steam tank with distilled water or condensate. Pour the water through the steam tank filter located in the condensate tank housing.
Page 41: Service And Warranty
ﬁ nish of the service claims for residential ASKO Products must ASKO Product, unless such damage results be ﬁ led with ASKO within two (2) years from date of from defects in materials or workmanship and purchase. Service will be provided during normal is reported to ASKO within 5 days from date of business hours.
Page 42 PARENTS, SUBSIDIARIES AND AFFILIATES BE LIABLE FOR DAMAGES OTHER THAN ACTUAL DAMAGES AND IN NO EVENT FOR DAMAGES IN EXCESS OF THE PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH A CLAIM IS MADE. Some jurisdictions do not allow the exclusion or...
Page 43: Warranty
ASKO CUSTOMER CARE Read the chapter Troubleshooting before contacting 1, 2, 3 the service department. If you have encountered a problem that you cannot resolve, please contact your nearest dealer. us.asko.com, +1-800-898-1879 CANADA ca.asko.com, +1-800-361-0799, service@distinctive-online.com MEXICO asko.com/mx, +52-800-400-4372, atencionalcliente@sub-zeromx.com When making contact, provide the details on the serial number plate.
Page 44: Technical Information
TECHNICAL INFORMATION TECHNICAL INFORMATION Height 845 mm (33 17/64") Width 597 mm (23 1/2") Depth 769 mm (30 9/32") Weight (net) 45 kg (99.2 lbs) Drum volume 145 l (5.12 cu.ft) Maximum drying load See rating plate Rated power See rating plate Drum material Stainless steel Housing material...
Page 45: Program Table
PROGRAM TABLE The table indicates the power consumption and time values for drying of a test batch of laundry with various loads and after spinning at various rates, consistent with the EN61121. The following requirements apply to the consumption values speciﬁ ed below. Inlet air temperature room temperature Inlet air humidity...
Page 46: Disposal
DISPOSAL Disposal / recycling of packaging Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.
Page 47: Quick Guide
QUICK GUIDE SORT THE FABRICS Sort the fabric by type and by how heavily soiled the laundry is. Observe the drying symbols on the laundry labels. Close the zippers, hook-and-loop fasteners and buttons. SWITCH ON THE MAIN ON/OFF SWITCH (ON/OFF) OPEN THE DRYER DOOR AND INSERT THE LAUNDRY.
Page 48 US.ASKO.COM • CA.ASKO.COM • ASKO.COM/MX TD85.21 SPO US/CA en (04-24)
