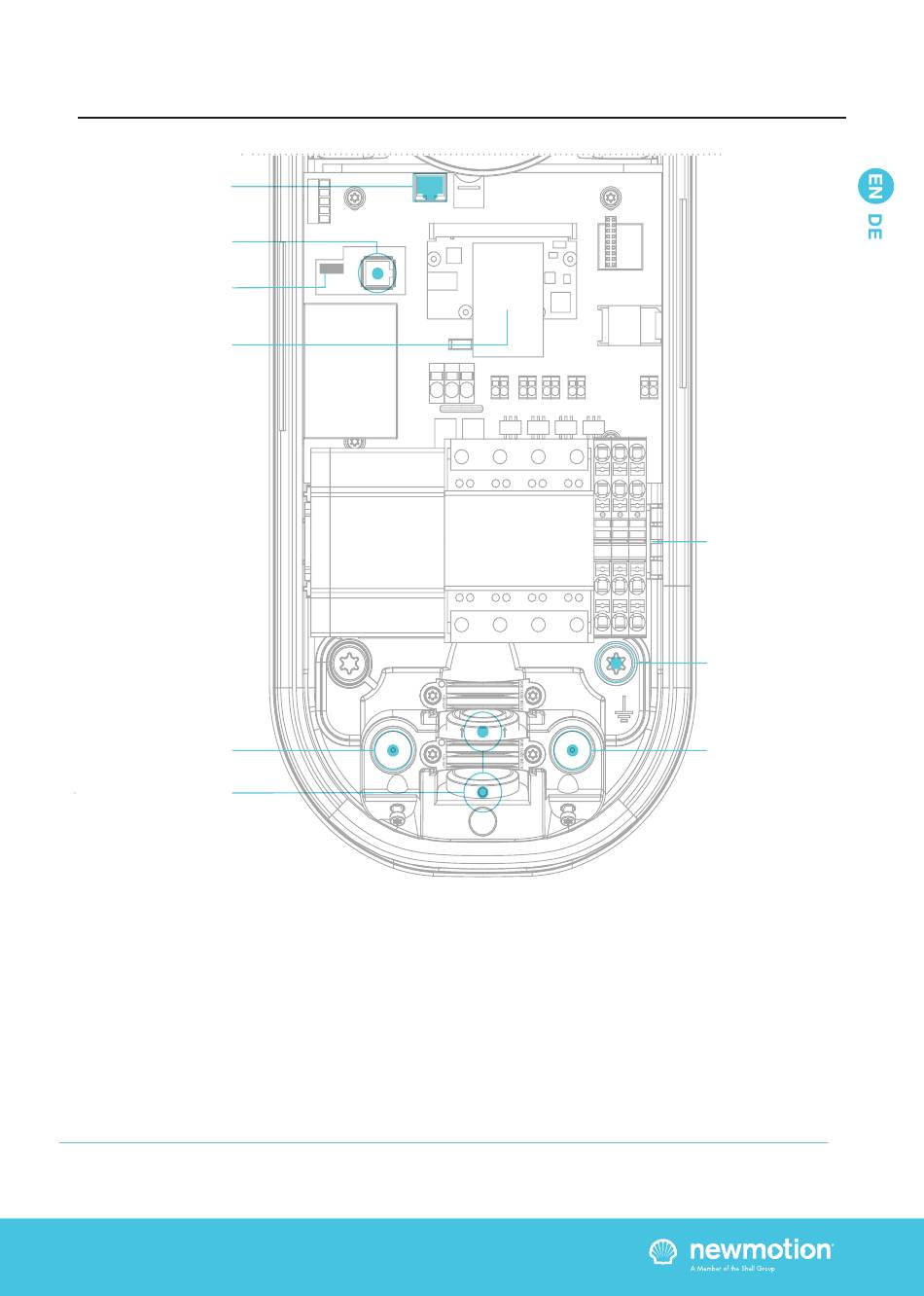

3. PRODUCT OVERVIEW
RJ45 Ethernet port
RJ12 P1 port
(DPM)
Connection
DC-protection
module
DC-protection
module
Terminal block
L1
N
PE (earthing)
Phase 2
Phase 3
UTP data cable inlet
with rubber seal
Inlet for power
cable with tension
relief clamps
If connecting to a 3-phase grid without neutral; only install 1-phase and connect one of the two other phase
wires in the neutral wire connection on the terminal block.
INSTALLATIEHANDLEIDING – P11
INSTRUCTION MANUAL – P11 | P11
INSIDE
VERSION 0129NM02INT01
075NM19INT01
Tension relief for
data cable(s)
Earthing pole
for pole mount
UTP data cable
inlet with rubber
seal
