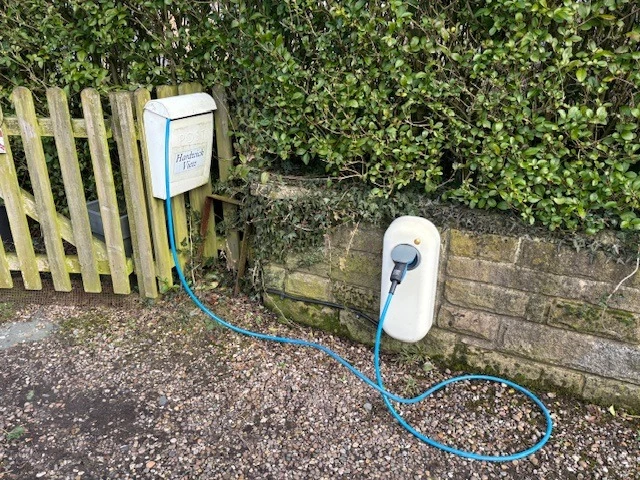

I cannot unplug the cable from my New motion Charger. It still works but we have to leave the cable plugged into the charger and cover it from the elements

User image 67a1ecc098d21
0

Related Manuals for newmotion Home Advanced 2.1

Summary of Contents for newmotion Home Advanced 2.1

  • Page 1 Installation manual NewMotion Home Advanced 2.1 / 2.2 Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 2: Table Of Contents

    Appendix A - EC Declaration of Conformity 5.2.3. Earthing 5.2.4. Required nominal input voltage at charge point Appendix B - EC Declaration of Conformity - Cable 5.2.5. Electrical protection Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 3: Preface

    - arising from or in connection with the use of this manual. Nor does NewMotion accept any liability for any such loss or damage arising out of your reliance on any information contained in this manual.
  • Page 4 Transmission control protocol Unshielded twisted pair Volt Watt ZE Ready is a mark registered by Renault. You can find all the information on the ASEFA and LCIE ZE-Ready websites Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 5: Safety

    Intended use and reasonably foreseeable misuse Home Advanced 2.1 / 2.2 is a charge point intended for charging electrical vehicles compatible with IEC-61851 Mode 3 definition and requirements. Electrical vehicles and cables used with this charge point should always be undamaged and in their original state.

  • Page 6: Residual Risks

    The warning labels and information signs on the product must be followed. The warning labels and information signs must be kept legible and must be replaced if necessary. For this purpose, contact the manufacturer. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

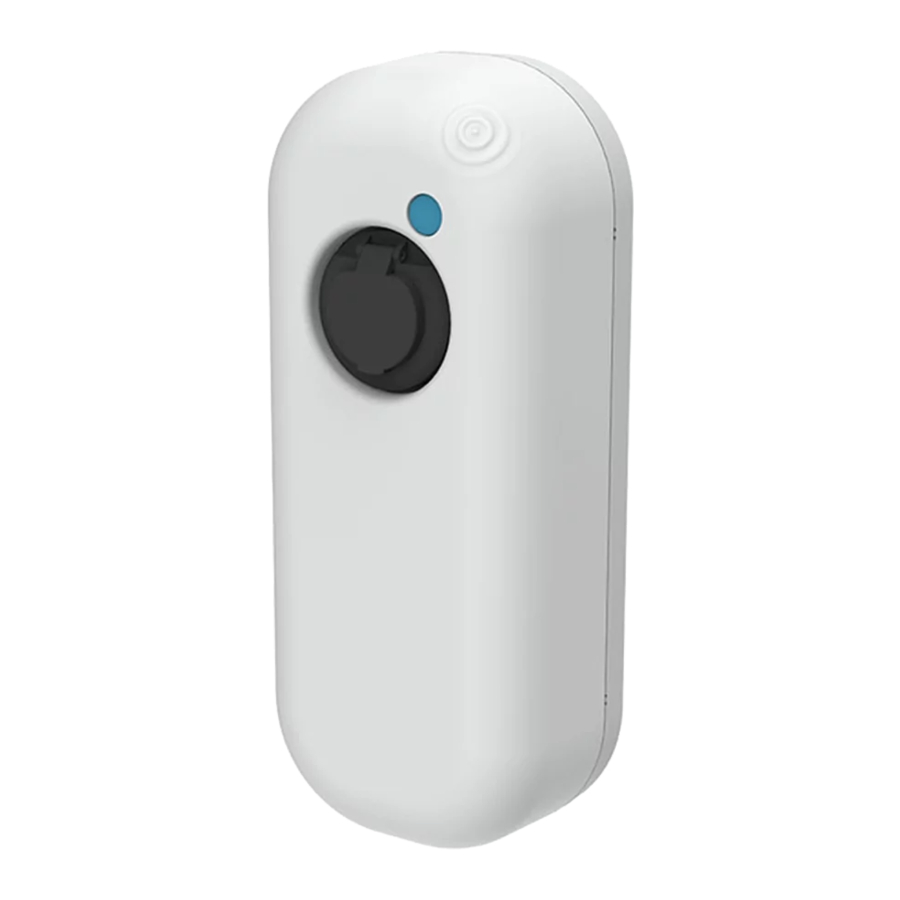

  • Page 7: Description Of The Product

    6. Earthing pole 14. Connection DC fault detection module 7. Data cable inlet with grey rubber rommet 15. P1 port (DPM module) 8. Power cable clamps 16. Ethernet port Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 8: Internal Connections For Tethered Cable

    IP54 (for indoor and outdoor use) (protection class) Certificates IEC-61851-1 IEC-61851-22 EV-Ready 1.4 G & ZE-Ready 1.4 G IEC-62262 -> IK10 IEC-60529 -> IP54 IEC-62955 -> 6 mA DC fault protection Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 9 EV, the grid connection at your location and the electricity usage of your building ** Contact NewMotion for changing charge capacity *** Contact NewMotion for further information: +44 20 3868 1036 and press option 1 Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 10: Nameplate / Markings

    Always store the product in environmental conditions that fall within the ranges as stated in chapter 3.3. Technical specifications. Place the product back in the shipping box or cover the product to minimize exposure to dust, moist and protect it from damages. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 11: Installation

    6. M8 washer - big (4×) 11. M4 × 20 mm Torx bolt (1×) 12. RJ12 unshielded connector (4×) 5.1.2. Optional 1. Mounting pole 2. Concrete base 3. DPM module Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 12: Installation Materials (Not Provided)

    The charge point is supplied with a DC fault detection device certified according to IEC 62955. NOTICE * The installer must select a suitable MCB to match the current setting of the charge point, taking into Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 13: Charge Point Mounting

    For pole mounting on a concrete base, use fill sand to cover the hole of the concrete base for optimal stability. 5.2.7. Installation tools and materials Make sure to have a basic electricians toolkit when installing a NewMotion charge point. Icon Description Cabled ethernet connection.
  • Page 14 Icon Description RJ45 crimp tool. Spirit level. Tape measure. This is optional. Torx screwdriver (T20). Voltage tester. Caliper. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 15: Preparation

    11. Pull the cover from the casing to open the charge point and access the internal components (see figure 7 3). 12. Check if all the connected wiring and internal components of the product are properly fastened. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 16: Mounting

    1 . Secure the wall bracket to a wall at the appropriate height (± 90 cm) (see fi gure 11 ). Make sure the wall is strong enough to withstand the weight of the charge point. NOTICE Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 17 Use a caliper to measure the thickness of the power cable and determine the correct coloured grommet. NOTICE 8 . Feed the power cable approx. 15 cm through the coloured grommet. Lubricate if necessary (see fi gure Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 18 12 . Secure the casing to the wall using 2 provided M8 × 12 mm bolts, 3 M8 washers and 2 coach screws (not provided) (see fi gure 15 ). Secure the supplied earthing cable between the casing and the bottom right screw, if required by local NOTICE rules and regulations. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 19: Pavement Mount

    8 . Insert the coloured grommet matching the power cable thickness into the rear input hole (see fi gure Use a caliper to measure the thickness of the power cable and determine the correct coloured grommet. NOTICE Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 20 13 . Secure the casing to the pole using 4 provided M8 × 12 mm bolts and washers (see fi gure 21 ). Secure the supplied earthing cable between the casing and the bottom right screw. NOTICE Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 21: Soil Mount

    3 . Secure the pole to the concrete base using 4 provided M8 × 35 mm Allen bolts and washers (see fi gure 23 ). 4 . Feed the power cable and optional data cable(s) through the pole (see fi gure 24 ). Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 22 Use a caliper to measure the thickness of the power cable and determine the correct coloured grommet. NOTICE 10 . Feed the power cable approx. 15 cm through the coloured grommet. Lubricate if necessary (see fi gure Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 23 14 . Secure the casing to the pole using 4 provided M8 × 12 mm bolts and washers (see fi gure 29 ). Secure the supplied earthing wire between the casing and the bottom right screw. NOTICE Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 24: Electrical Connection

    Cables L2 and L3 are installed directly into the power meter for 3-phase connection only. Apply a torque NOTICE of 2.4 Nm. The L1 cable must always be connected to the grey terminal block. NOTICE Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 25: Tethered Charging Cable

    6 . Secure the power cable in place with the cable clamp (see fi gure 32 ). 5 . 5 . 2 . Tethered charging cable 1 . Remove the front cable clamp (see fi gure 33 ). Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 26 6 . Insert the tethered cable wires into the contactors (see fi gure 35 7 . Connect the red car-communication wire (see fi gure 35 8 . Insert the earthing wire into the terminal (see fi gure 35 Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 27: Wired Network Connection (Optional)

    5 . Repeat steps 2 – 4 on the other side of the cable. 6 . Check if you have properly installed the connectors on both sides using an RJ45 cable tester. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 28: Installation Dpm Module (Optional)

    5 . 7 . 1 . Installing the DPM for Business module 1 . Mount the DPM module to a free slot on a DIN-rail in the consumer unit (see fi gure 39 ). Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 29 5 V pin (left) on the DPM module. The middle pin is not used. 5 . Plug the power supply into a working Schuko power socket (see fi gure 41 Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 30: Connecting The Charge Point To The Dpm Module

    5. Secure the connector to the wires using an RJ12 crimping tool. 6. Check if you have properly installed the connectors on both sides using an RJ12 network cable tester. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 31: Connecting The Charge Point To A Smart Meter

    If the smart meter on the consumer unit has SMR 4.0 or higher, you can connect the product directly to the P1 port on the smart meter, without using a DPM module. Only use this method if the DPM module is not supplied in the delivery of the charge point. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 32: Finishing Installation

    4 . Secure the cover to the casing by hand with 6 provided M4 × 12 mm Torx bolts, using a T20 screwdriver (see fi gure 6 CAUTION Do not use an electrical screwdriver to secure the bolts, this can damage the cover or casing. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 33 6. Secure the grey lid to the cover by hand with a provided M4 × 20 mm Torx bolt, using a T20 screwdriver (see figure 49). 6 CAUTION Do not use an electrical screwdriver to secure the bolts, this can damage the lid, cover or casing. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 34: Commissioning

    Activating the product Before the charge point is ready for use, you need to active it via https://my.newmotion.com. It is advised to let the customer activate the charge point on his account while the installer is installing the charge point. This will enable easy testing after the installation is finished.

  • Page 35: Configuring The Dpm Module

    6.4. Configuring the DPM module If you have installed the DPM module, please use the Installer App, or contact your local NewMotion Installation desk for configuration of the Dynamic Power Management. Write down before contacting: 1. The amperage of the main grid connection;...

  • Page 36: Troubleshooting

    7. Troubleshooting If the issue is not solved after consulting this troubleshooter, please contact your local NewMotion Installation NOTICE desk to get more help. Problem Possible cause Solution There is no light on - The power is not Follow steps 1-3 below:...
  • Page 37 Ohms. If it is higher, install a proper grounding solution. For example: add an earthing rod directly connected to the charge point. If no result: - Charge point may be broken, please contact your local NewMotion Installation desk. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 38 Ohms. If it is higher, install a proper grounding solution. For example: add an earthing rod directly connected to the charge point. If no result after the before mentioned 7 steps: - Charge point may be broken, please contact your local NewMotion Installation desk. LED light is...
  • Page 39 However, if this happens too often or too long (longer than one hour), tell the customer to go to the car dealer to have the vehicle tested. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 40: Maintenance

    Comply with local legal regulations and provisions when recycling or disposing of the product, the individual components and the packaging. A product marked with the WEEE symbol must be sent for separate collection of electrical and electronic devices. Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 41: Appendix A - Ec Declaration Of Conformity

    Appendix A - EC Declaration of Conformity Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...

  • Page 42: Appendix B - Ec Declaration Of Conformity - Cable

    Appendix B - EC Declaration of Conformity - Cable Installation manual – NewMotion Home Advanced 2.1 / 2.2 - 071NMEN13...
  • Page 43 UK English - Original instructions | 071NMEN13 | 03/2021 Manufactured by: The New Motion B.V. Rigakade 20, 1013 BC | Amsterdam, The Netherlands +31880109500 | www.newmotion.com...
