3. PRODUCT OVERVIEW

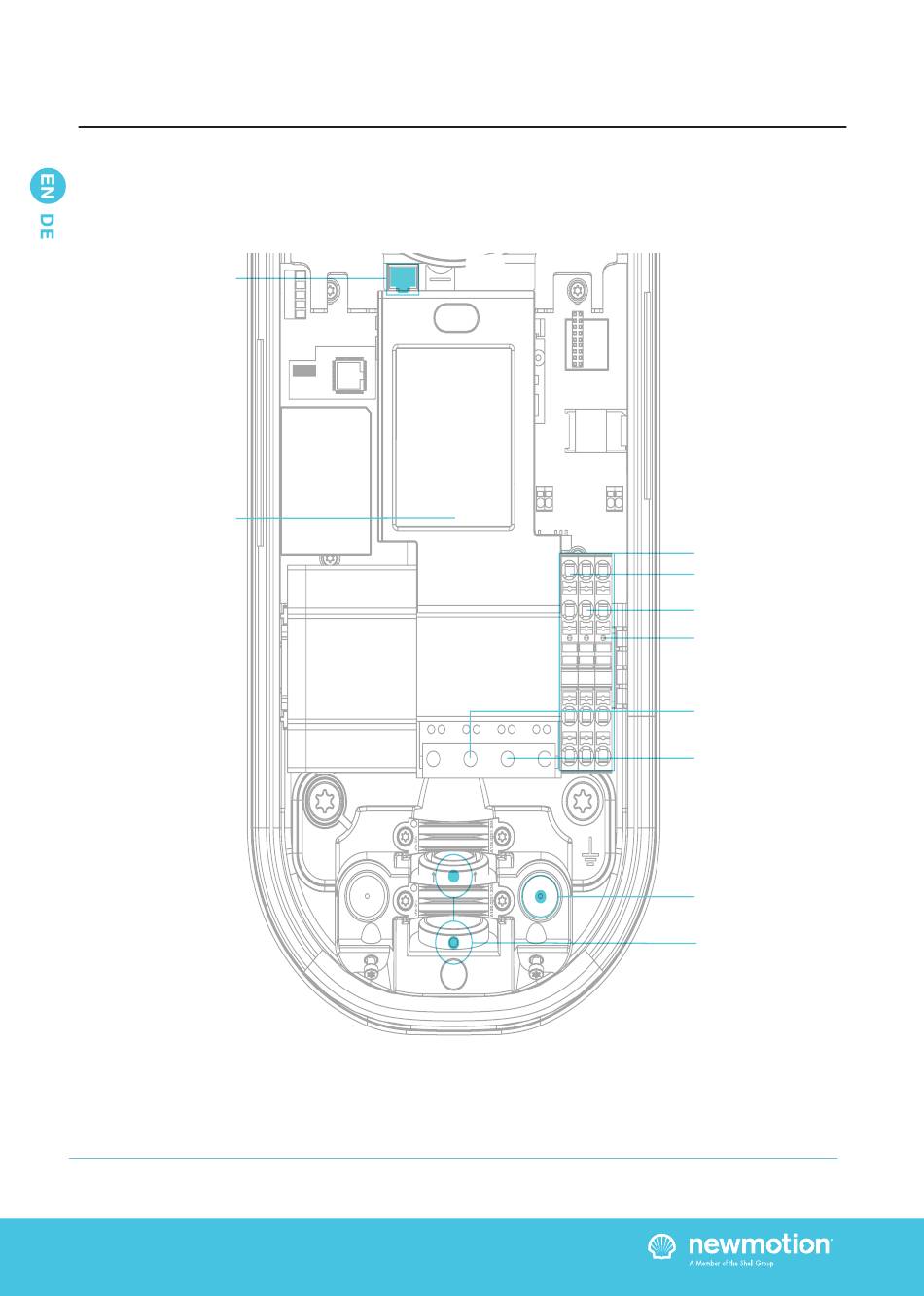

3.4 OVERVIEW OF CONNECTIONS

RJ45 Ethernet port
SMED with LCD
user display &
Proximity
sensor-set
If connecting to a 3-phase grid without neutral; only install 1-phase and connect one of the two other phase
wires in the neutral wire connection on the terminal block.
INSTALLATIEHANDLEIDING – P10
INSTRUCTION MANUAL – P10 | P10
INSIDE
VERSION 0129NM02INT01
075NM19INT01
RJ45 Ethernet port
RJ12 P1 port
(DPM)
Connection
DC-protection
module
DC-protection
module
Terminal block
L1
N
PE (earthing)
Phase 2
Phase 3
UTP data cable inlet
with rubber seal
Inlet for power
cable with tension
relief clamps
