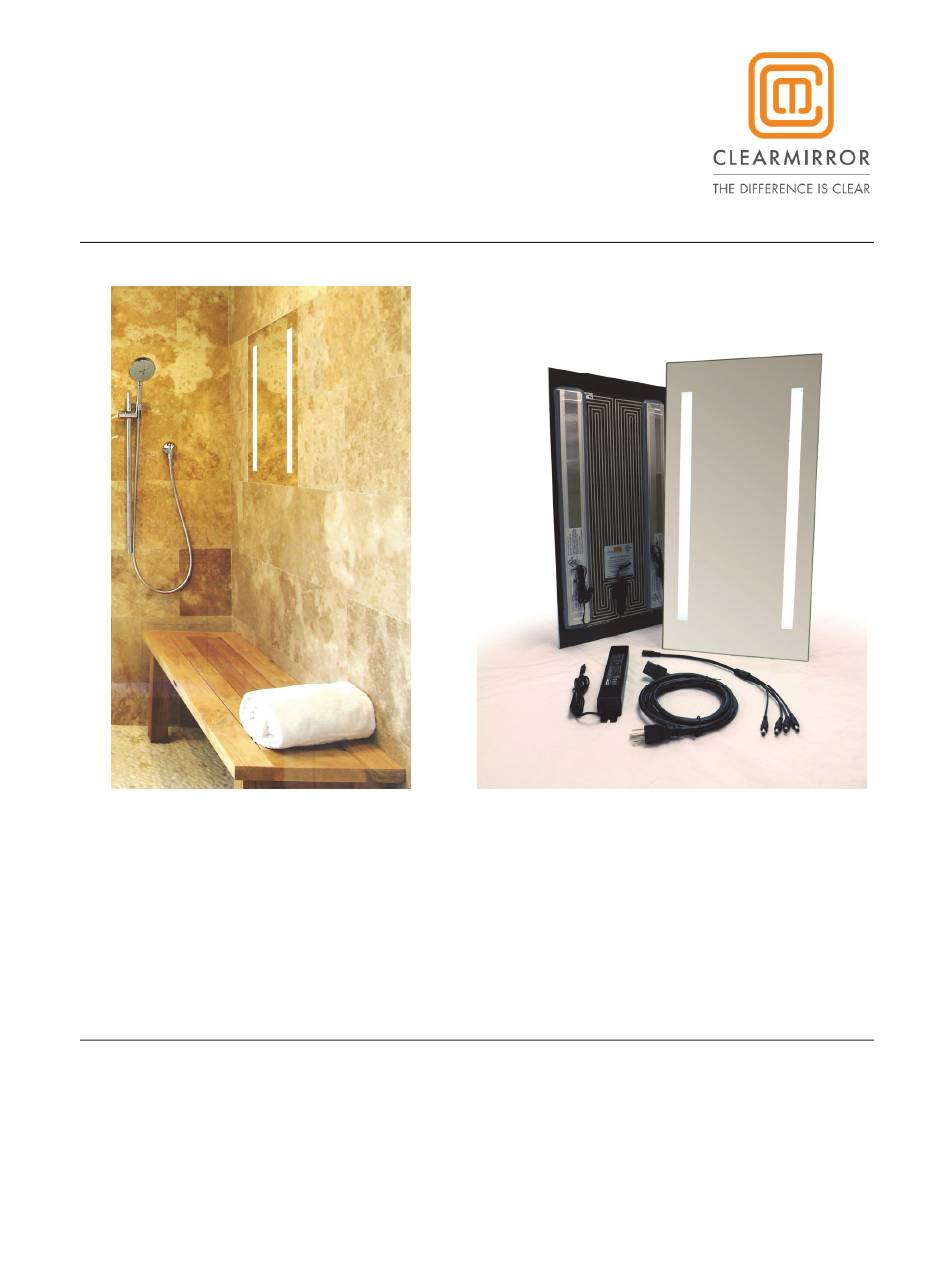

ShowerLite
Installation Instructions
ShowerLite LED Back-lit, Fog-free
Shower Mirrors
Models 16104-121212BL, 122412BL, 181812BL, & Custom
June 2018
Only wire the ShowerLite to the 12-volt DC direct plug-in power supply included with this
product. Install in accordance with all applicable safety, national and local electrical codes.
Read all instructions before using the ShowerLite ClearMirror.
Advertisement
Table of Contents
Related Manuals for ClearMirror ShowerLite 16104-121212BL
Summary of Contents for ClearMirror ShowerLite 16104-121212BL
-
Page 1: Installation Instructions
June 2018 IMPORTANT INSTRUCTIONS Only wire the ShowerLite to the 12-volt DC direct plug-in power supply included with this product. Install in accordance with all applicable safety, national and local electrical codes. Read all instructions before using the ShowerLite ClearMirror. -
Page 2: General Guidelines
• Mirror must be caulked or grouted into tile, flush with the tile surface. Edges of the mirror cannot be exposed to touch. • Contact ClearMirror for LED replacement parts. • Consult the NEC, Article 551 for rec. vehicle installation. - Page 3 WARNING: This stage requires a qualified electrician and conformance with both the National Electrical Code and local building codes. Turn off the power to the circuit connected to the light fixture at the disconnect means. Failure to do so could result in death or serious injury. WIRING The ShowerLite uses a series of provided barrel connectors and a plug-in power supply.
- Page 4 Amazon or CR Laurence. This product does have a shelf life so we are not able to provide it with your shower mirror. Other mirror mastics will work but Gunther Premier Plus is recommended. See ClearMirror.com/FAQ...
-
Page 5: Operating Instructions
WARNING: Mirror must be caulked or grouted into the tile or surround complete and flush with tile surface. Back edge of the mirror cannot be exposed to touch. Failure to do so could result in electric shock or injury. FINISHING THE MIRROR Caulk or grout around the edges. - Page 6 • All other servicing should be performed by qualified service personnel. Call ClearMirror directly with any warranty or operational problems or concerns. GROUNDING INSTRUCTIONS This ShowerLite assembly with a ClearMirror heater is for use with a 12-volt power supply and comes with a grounded cord set. WARRANTY INFORMATION NewHome Bath &...
