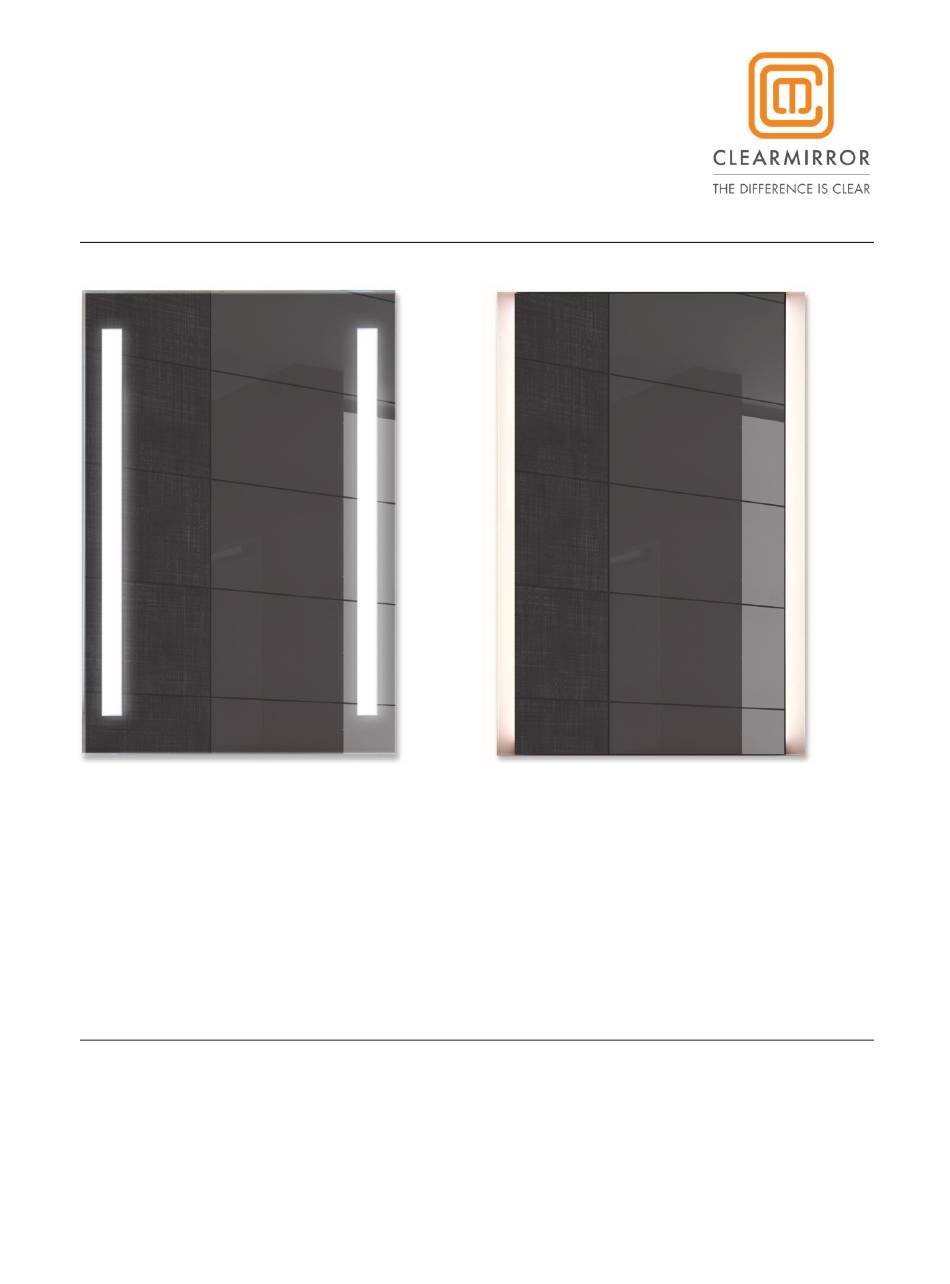

ClearLite
Installation Instructions
ClearLite LED Back-lit and Side-lit,
Fog-free Vanity Mirrors
Models 18100-1836BL, 2436BL, 1836SL, 2436SL, Custom
June 2018
IMPORTANT INSTRUCTIONS
ClearLite vanity mirrors with attached ClearMirror
switched circuit. A 15A or 20A fuse or circuit breaker at the electrical box should protect the
circuit. Read all instructions before using the ClearLite ClearMirror.
®
Defogger is designed to be powered by a
Advertisement
Table of Contents
Related Manuals for ClearMirror Custom
Summary of Contents for ClearMirror Custom
-
Page 1: Installation Instructions
ClearLite vanity mirrors with attached ClearMirror ® Defogger is designed to be powered by a switched circuit. A 15A or 20A fuse or circuit breaker at the electrical box should protect the circuit. Read all instructions before using the ClearLite ClearMirror. - Page 2 NOTICE: All wiring must be performed by a licensed electrician. Follow the National Electrical Code or local codes as applicable. WARNING: Failure to follow instructions could result in death or serious injury. Installation COMPONENTS OF THE CLEARLITE Studs INSTALL JUNCTION BOX Position junction box near the center of the mirror as shown in Figure 1.
- Page 3 WARNING: This stage requires a qualified electrician and conformance with both the National Electrical Code and local building codes. Turn off the power to the circuit connected to the light fixture at the disconnect means. Failure to do so could result in death or serious injury. •...
- Page 4 NOTE: Polarity is not relevant - there are neither positive nor negative connections on the ClearMirror heater pad, nor are there any ground wires CAUTION: Ensure leads are not stuck between the mirror and the wall. CONNECT LEADS TO POWER SUPPLY To connect the mirror heater and mirror wires: 1.
- Page 5 IMPORTANT INSTRUCTIONS SAVE THESE INSTRUCTIONS Read all instructions before installing or using this heater. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Do not operate any heater after it malfunctions.
- Page 6 18-gauge and are not required to be grounded. WARRANTY INFORMATION NewHome Bath & Mirror, Inc. DBA ClearMirror and its affiliates will not warranty the labor or material costs for installation, replacement or use of ClearLite when operated in an application that is lower than 50°...
