INSTALLATION GUIDE
TRADE SERIES
ALCOVE SHOWER
SEALANT REQUIRED TO COMPLETE THIS INSTALLATION:
Sika Sikasil NG (Arctic White)
• To seal the WHITE shower door to the shower tray.
Usage:
• 1 cartridge per shower
Sika Sikasil NG (Translucent)
• To seal the METALLIC shower door to the shower tray.
Usage:
• 1 cartridge per shower
TOOLS REQUIRED
• Level
• Tape
• Pencil
• Phillips screwdriver
• Ruler
• Drill
• Caulking gun
1310239-A02-A 10/01/2017
-1-
Advertisement
Table of Contents
Related Manuals for Kohler ENGLEFIELD TRADE SERIES
Summary of Contents for Kohler ENGLEFIELD TRADE SERIES

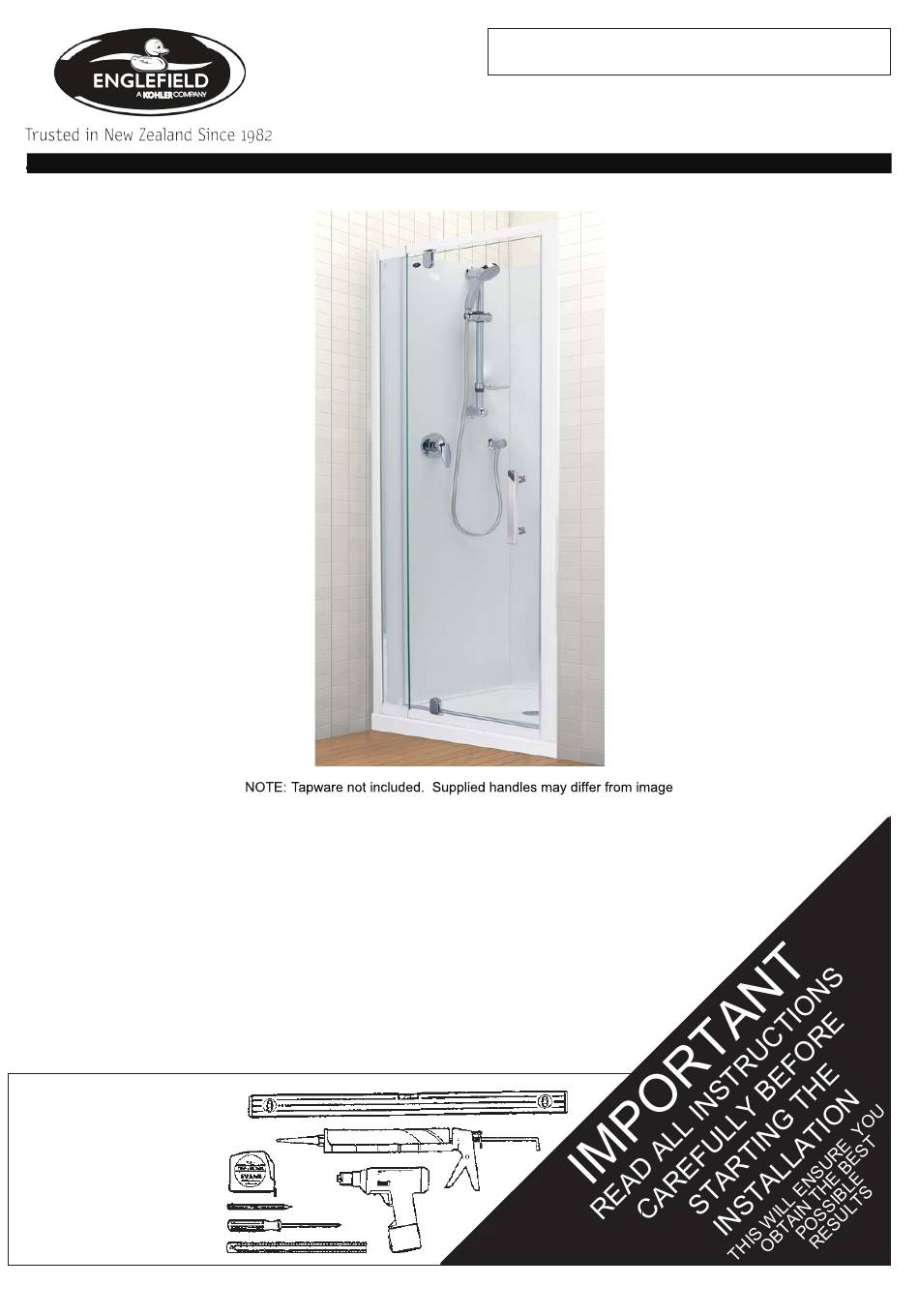

- Page 1 INSTALLATION GUIDE TRADE SERIES ALCOVE SHOWER SEALANT REQUIRED TO COMPLETE THIS INSTALLATION: Sika Sikasil NG (Arctic White) • To seal the WHITE shower door to the shower tray. Usage: • 1 cartridge per shower Sika Sikasil NG (Translucent) • To seal the METALLIC shower door to the shower tray. Usage: •...
- Page 2 Fitting Instructions – ALCOVE DOOR SHOWER WALL TOP RAIL DOOR RETAINER DOOR RETAINER DOOR ASSEMBLY DOOR SILL SHOWER TRAY INSTALLATION INSTRUCTIONS INSTALLATION KIT HANDLE KIT NOTE: SHOWER TRAY MUST BE INSTALLED AS DETAILED ON SUPPLIED INSTRUCTIONS 1310239-A02-A 10/01/2017...
- Page 3 Check the distance between the e l l walls to ensure they are within level. the maximum and minimum enclosure adjustment tolerances. 10 mm Fix hinge side wall retainer in place using 3 of the 6 long Select preferred shower door opening.
- Page 4 Attach second Wall Retainer Check that the Door Assembly top edges are level. NOTE: DOOR ASSEMBLY MUST BE PLUMB USING A SPIRIT LEVEL. trim seal ush with door glass position against the wall. Fit top and bottom hinge caps. (Note: bottom cap has ‘wings’.) door edge extrusion enough to slip front of the shower base.
- Page 5 Using spirit level plumb Fit long seal to hinge edge of (b) Hold tube at 45° angle and push glass. Flap faces into Door Assembly. Tape into enclosure. Push down to butt against position as indicated. (c) The surface of the sealant can bottom seal.
- Page 6 (e) Allow the silicone 24 hours to cure before using the enclosure. CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER CO. Free Ph: 0800 100 382 Free Ph: 1 800 ENGLEFIELD Free Fax: 0800 664 488 (1 800 364 533) www.englefield.co.nz...
