4.1 What if I want to use several Le Preamp?

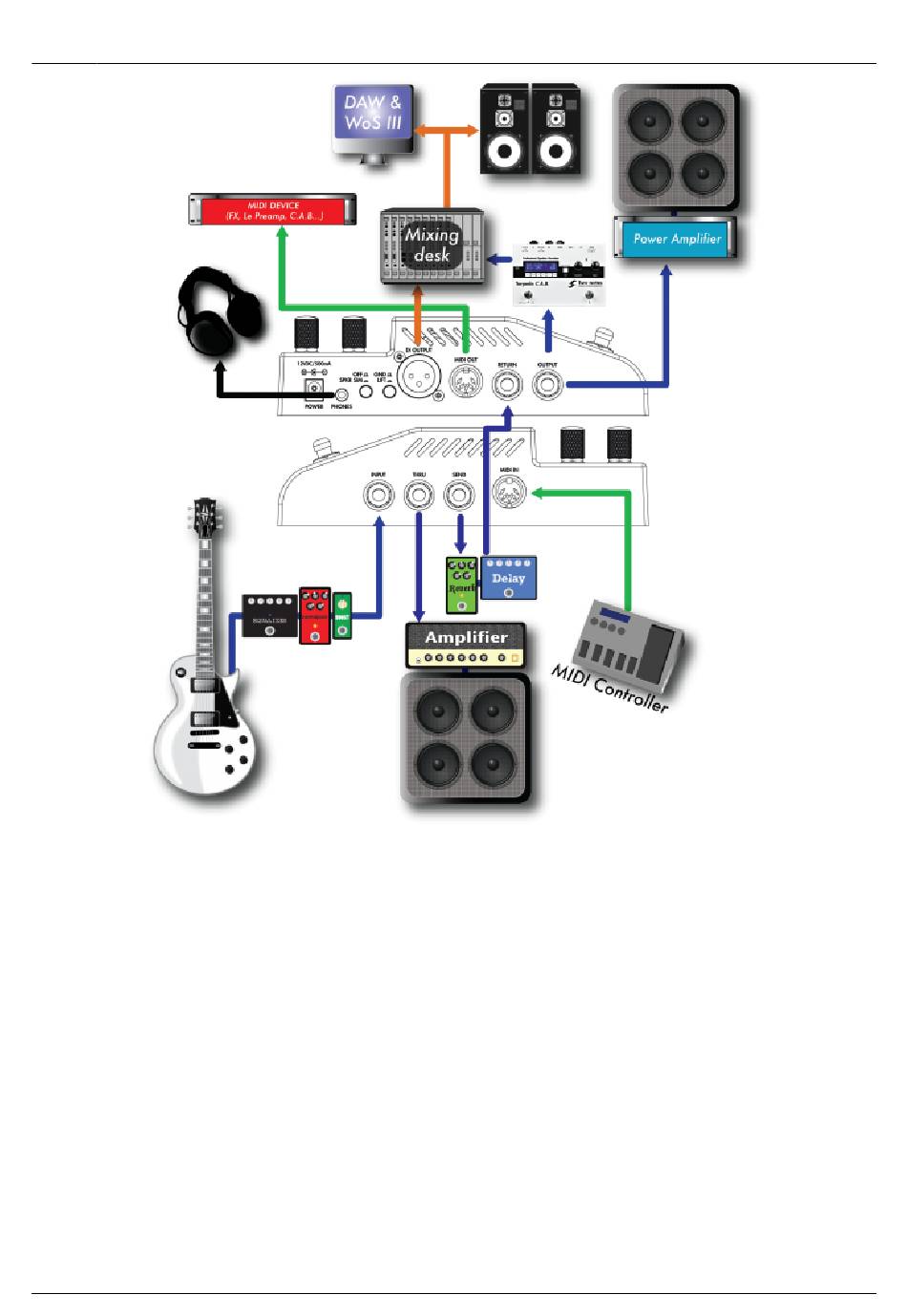

You can, in fact, they were specifically designed to work together! Please refer to the following figure.
On this figure you will find, in green, the MIDI connections, and in blue the audio
connections. When connecting several Le Preamp with MIDI for the first time, switching on a preamp
channel will defeat the other preamps. We call it the Multi-channel mode: having more Le Preamp is
like adding channels on an amplifier, and it's as simple as using a channel footswitch on a traditional
multichannel amplifier. When connecting several Le Preamp with a MIDI cable, make sure you use a
5-pin DIN cable with all the pins wired. Some cables only have pins 4, 2 and 5 connected. Pin 1 and 3
are used to carry the Multi-channel message.
