3 Product description

3.1 Side views

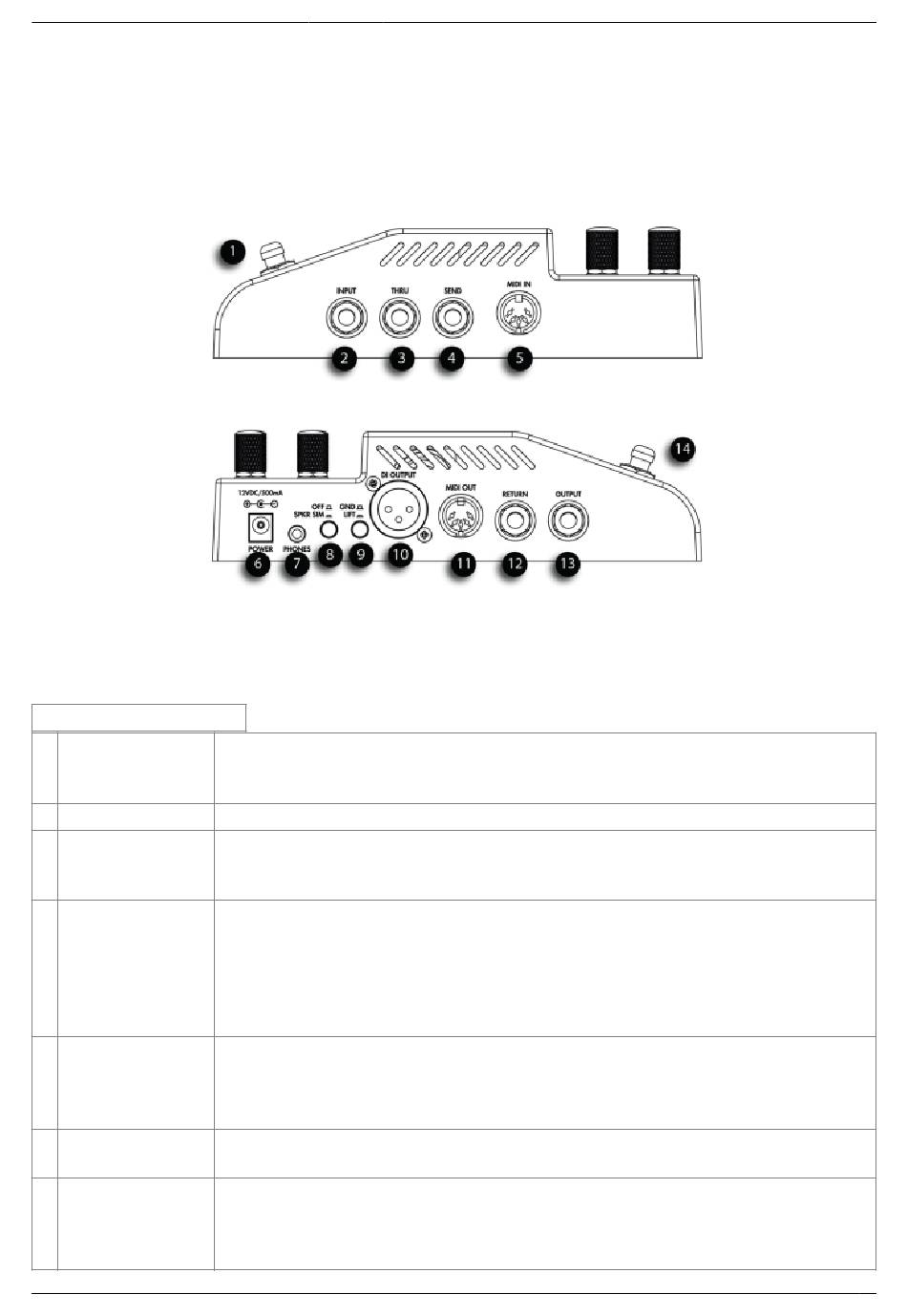

You will find in this first table a description of the various inputs and outputs featured in your new Le
Preamp.
< 100% 10% 20% 70% >
Channel B
1
footswitch
2 Instrument input
3 Thru output
FX Loop Send
4
output
5 MIDI input
Power adapter
6
connector
Headphones
7
output
User's manuals - http://wiki.two-notes.com/
7/21
This footswitch activates the clean Channel B or changes the page/parameter
in MIDI programming. If the Channel A is already selected, pressing a second
time will put your Le Preamp in bypass mode
Connect a 1/4" unbalanced shielded cable to your guitar or bass.
Connect a 1/4" unbalanced shielded cable to feed an amplifier with your
instrument signal. This can be useful on stage of you want to keep an amp as
monitor, or to record the dry signal from the guitar in studio.
Plug here a 1/4" unbalanced shielded cable to send the preamp signal to the
pedals you want to put after the preamp stage. The FX Loop is bypassed when
the Le Preamp is bypassed. In other words, the effects pedal that you put in
this loop won't be heard when your Le Preamp is bypassed. That is very
interesting in case you have several Le Preamp and you wish to assign specific
effects to each preamp.
Connect a MIDI controller (to remotely control your Le Preamp) or another Le
Preamp to this input. Use only a cable featuring a 5-pin DIN connector with all
the pins wired (some cables only have pins 4, 2 and 5 connected). Pin 1 and 3
are used to carry the Multi-channel message.
Plug here your power adapter
Plug your headphones and play in the middle of the night without disturbing
anybody! With headphones, and in case you don't have speaker simulator such
as a Torpedo C.A.B. in the FX loop, we recommend you activate the analog
speaker simulation
