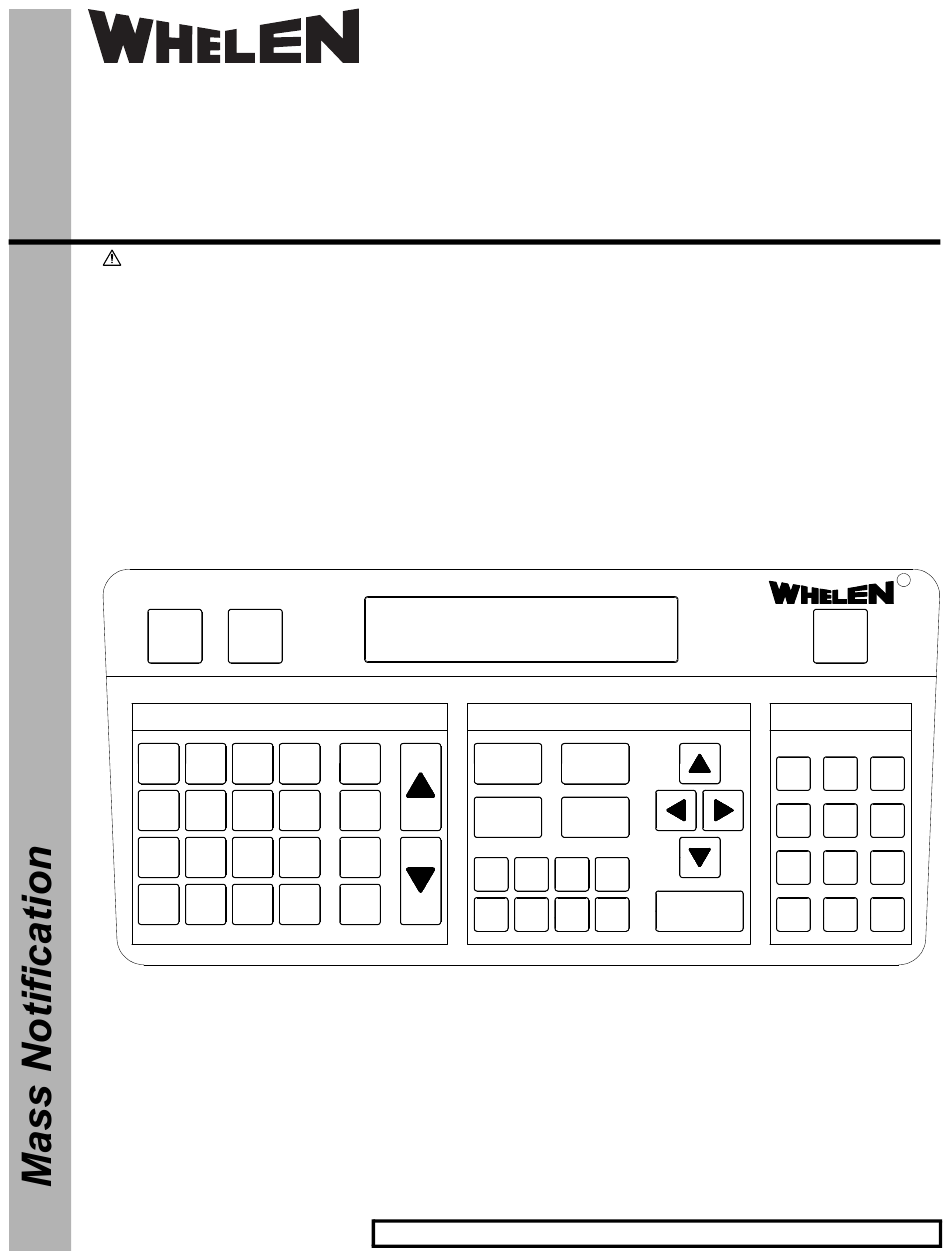

OPERATION & INSTALLATION MANUAL
E-2010 CENTRAL CONTROL STATION
E-2010
ALARM
CALL KEY
ACK.
CANCEL
CALL KEY MENU
CALL
CALL
CALL
KEY
KEY
KEY
1
2
3
CALL
CALL
CALL
KEY
KEY
KEY
5
6
7
CALL
CALL
CALL
KEY
KEY
KEY
9
10
11
CALL
CALL
CALL
KEY
KEY
KEY
13
14
15
©1998 Whelen Engineering Company Inc.
Form No.13382C (050806)
®
Basic description and operation
09/15/98
WHELEN ENGINEERING CO., INC.
CALL
CALL
KEY
KEY
4
17-26
CALL
CALL
KEY
KEY
8
27-36
UP
CALL
CALL
KEY
KEY
12
37-46
CALL
CALL
KEY
KEY
16
47-56
DOWN
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
of the
09:45:02
MENU SELECTIONS
VOICE
WARNING
MESSAGES
TONES
ROTATING
STATUS
DIRECTION
AUTO
PORT
POLLING
SYSTEM
CALL
SETUP
SETUP
SETUP
SETUP
CALL
TIME
OPTION
AUDIO
KEY
DATE
SETUP
SEND
SIREN ADDRESS
1
2
4
5
8
7
ENTER
#
0
R
3
6
9
ALL
