Whelen Engineering Company CCP Installation Manual

51 Winthrop Road
Chester, Connecticut 06412-0684
Phone: (860) 526-9504
Internet: www.whelen.com
Sales e-mail: autosale@whelen.com
Customer Service e-mail: custserv@whelen.com
WARNING: This product can expose you to chemicals including Lead which is known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.g ov.
The Control Point serves as the main controller of a Whelen
WeCanX (WCX) Series lightbar or Arges spotlight when a
Core control system is not being utilized. When utilizing
Whelen Command Programming Software, this module can
be configured via the USB-C port to provide the necessary
instructions that allow the WCX lightbar or Arges spotlight
to function and operate in the desired manner.
NOTE: Charging-only cables used for mobile devices (i.e. cell phones or
tablets) are not recommended for data transfer use. Not all cables are
capable of charging and data transfer.
Diagnostic Output (J1, Pin 2):
The Diagnostic Output is a high-side programmable output
signal, capable of sinking a maximum of 2.5 AMPS
USB-C
Programming
Port
1 - RED - 10-30 VDC Power
2 - RED/WHT - Diagnostic Output
3 - BLACK - Ground
4 - GREEN - Can - H
5 - BLK/WHT - SHIELD
6 - GREY - CAN - L
5 AMP
FUSE
©2019 Whelen Engineering Company Inc.
Form No.14C62F (021623)

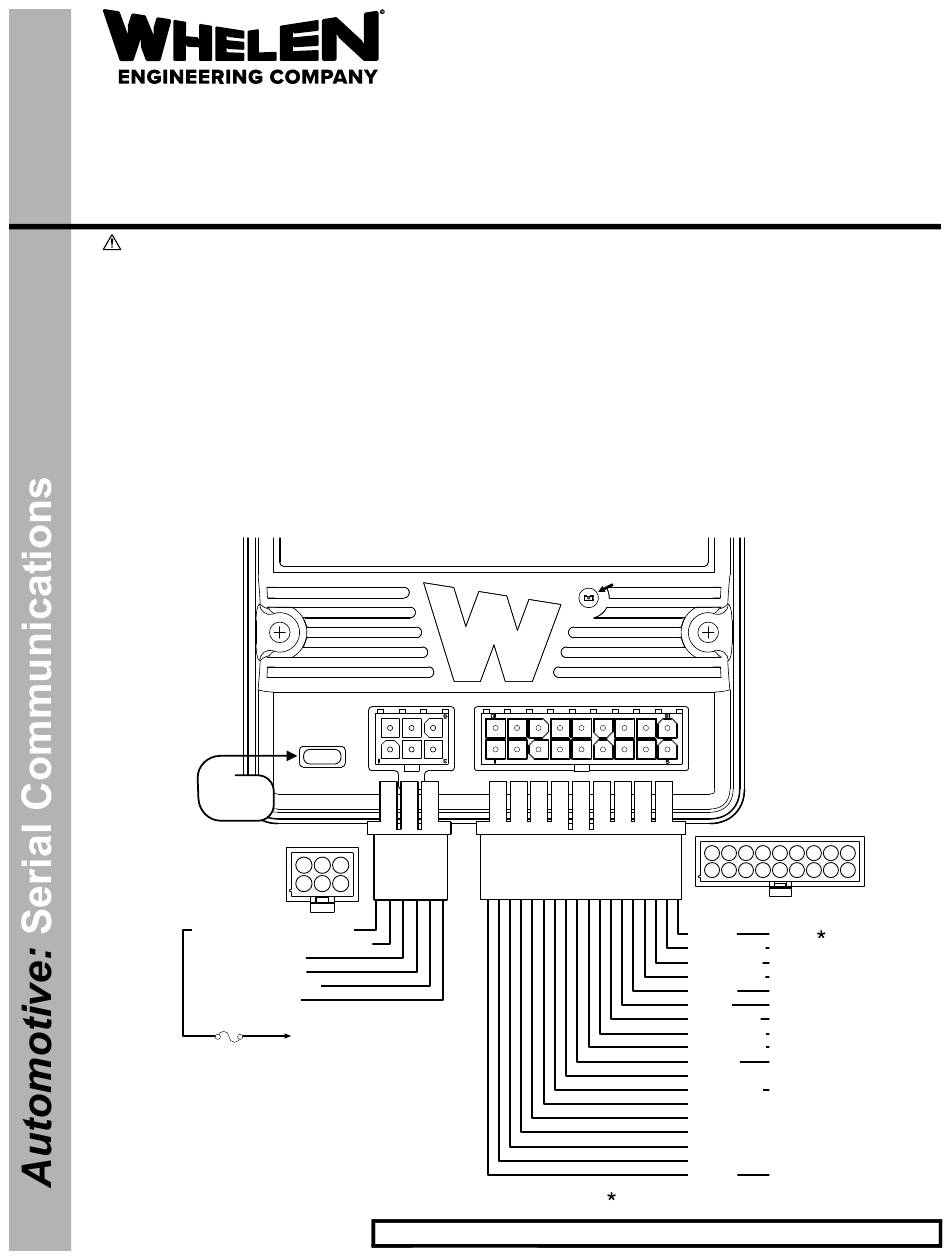

REAR VIEW
4 5 6
J1
3
1 2
To Positive terminal of battery
For warranty information regarding this product, visit www.whelen.com/warranty For warranty information regarding this product, visit www.whelen.com/warranty
Page 1
Installation Guide: Core Control Point
Ignition Sense (J2, Pin 1):
The Ignition Sense Input is to be wired to an ignition signal line
on the vehicle. This will enable the WCX Control Point Module to
turn on (line high, ignition sensed), or turn off (line low, ignition
off).
Digital Inputs (J2, Pins 2-8 / Pins 10-17):
These pins are used as programmable digital inputs, activated
by applying +VBAT to the input pin. These inputs can be used to
trigger instructions for lightbar operation.
Analog Inputs (J2, Pins 9 / 18):
These pins are used as programmable analog inputs, capable of
registering a range of voltages that can trigger lightbar
SYSTEM SYSTEM SYSTEM
STATUS STATUS STATUS
INDICATOR INDICATOR INDICATOR
10
1
J2
1 - GRN
2 - GRN/WHT
3 - GRN/BLK
4 - WHT/RED
5 - WHT
6 - YEL
7 - WHT/VIO
8 - WHT/GRN
9 - WHT/ORG
10 -
11 -
12 -
13 -
14 -
15 -
16 -
17 -
18 -
Connect to an ignition controlled circuit that can
accommodate an additional 250 mA load.
Model: CCP
REAR VIEW
11 12 13 14 15 16 17 18
5
2 3 4 6 7 8 9
Ignition
Input 2 (Digital)
Input 3 (Digital)
Input 4 (Digital)
Input 5 (Digital)
Input 6 (Digital)
Input 7 (Digital)
Input 8 (Digital)
Input 9 (Analog)
BLU Input 10 (Digital)
BLU/WHT Input 11 (Digital)
BLU/BLK Input 12 (Digital)
WHT/BRN Input 13 (Digital)
WHT/BLK Input 14 (Digital)
WHT/BLU Input 15 (Digital)
RED/WHT Input 16 (Digital)
WHT/YEL Input 17 (Digital)
VIO Input 18 (Analog)
