Overview -

The Control Point Module serves as the 'brains' of the
Whelen WC Series lightbar. The module is programmed with
the WeCan™ Programming Software via the USB port and in
turn, provides the necessary signals that allow the lightbar to
function in the desired manner.
As represented in the WeCan™ Programming software, each
of the 18 inputs may be programmed to activate any number
or combination of the installed lightbar components. This is
accomplished by applying +12VDC to an input. Refer to the
sample wiring diagrams shown on pgs. 2 through 4, or the
installation guide included with your switches for detailed
wiring information.
Note - The pattern override feature will override all active
LED lightheads with the pattern override flash pattern.
DEFAULT CONFIGURATION (12V Inputs)
POS COLOR FUNCTION
1 GREEN FRONT PATTERN 1
2 GRN/WHT FRONT PATTERN 2
3 GRN/BLK FRONT PATTERN 3
4 WHT/RED FRONT PATTERN 4
5 WHITE DRIVER ALLEY
6 YELLOW PASSENGER ALLEY
7 WHT/VIO AUX
8 WHT/GRN * RIGHT TRAFFIC ADVISOR
9 WHT/ORG CRUISE LIGHTS
10 BLUE REAR PATTERN 1
11 BLU/WHT REAR PATTERN 2
12 BLU/BLK REAR PATTERN 3
13 WHT/BRN REAR PATTERN 4
14 WHT/BLK TAKE DOWNS -
15 WHT/BLU FLASHING TAKE DOWN / ALLEY
16 RED/WHT STEADY OVERRIDE
17 WHT/YEL * LEFT TRAFFIC ADVISOR
18 VIOLET LOW POWER
*NOTE: Apply +12VDC to the WHT/GRN
and WHT/YEL wires simultaneously for
split Traffic Advisor.
©2007 Whelen Engineering Company Inc.
Form No.14157A (081709)
®
9 8
18 17
™
-
For warranty information regarding this product, visit www.whelen.com/warranty
Page 1

Programming Procedure -

IMPORTANT - It is not necessary to program this device
unless changes to the default configuration (for example
pattern or switch control changes) are desired.
1. Connect a USB cable from the host PC to the module's
USB port.
2. Start the WeCan software on the host PC and open the
configuration to be programmed.
3. Click on the "WeCan" button on the menu bar. Select
"Control Point" then "Program" from the fly-out.
4. A window will open to confirm that you are about to
program a Control Point Module. Confirm that the USB
cable is connected to both the module and the PC and
then press "OK" to continue. The software will display a
window when the programming procedure has been
successfully completed.
5. Confirm proper operation of the module.

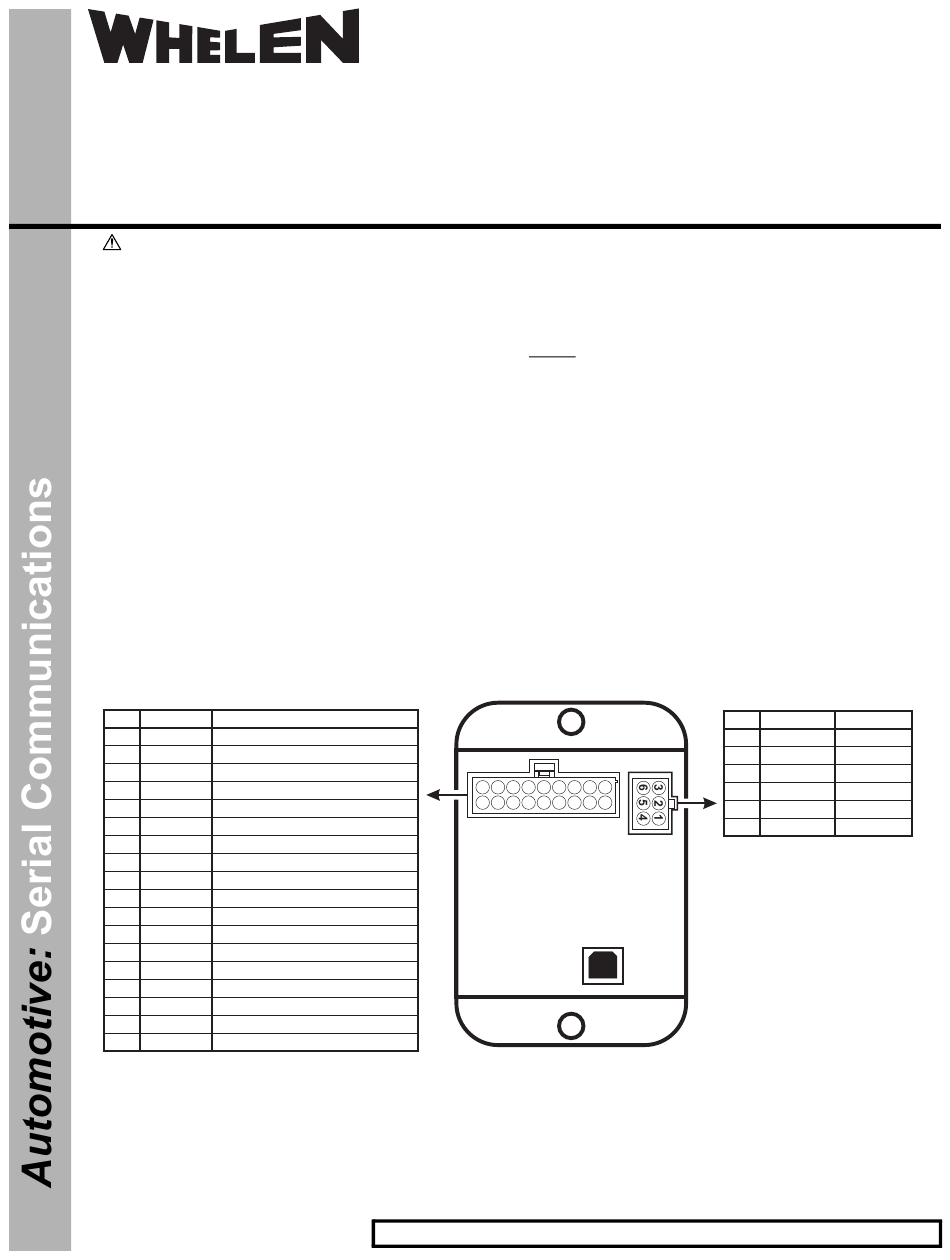

7 6 5 4 3 2 1
16 15 14 13 12 11 10
USB
Port
Installation Guide:
Control Point Module
for WeCan® Lightbars
LIGHTBAR CABLE CONNECTOR
POS COLOR FUNCTION
1
1 RED +12VDC
2 None
3 BLACK GROUND
2
4 GREEN COMM. A
2
5 BLK/WHT SHIELD
2
6 GREY COMM. B
1
Connect to an ignition controlled
circuit that can accommodate an
additional 250mA load.
2
from lightbar
