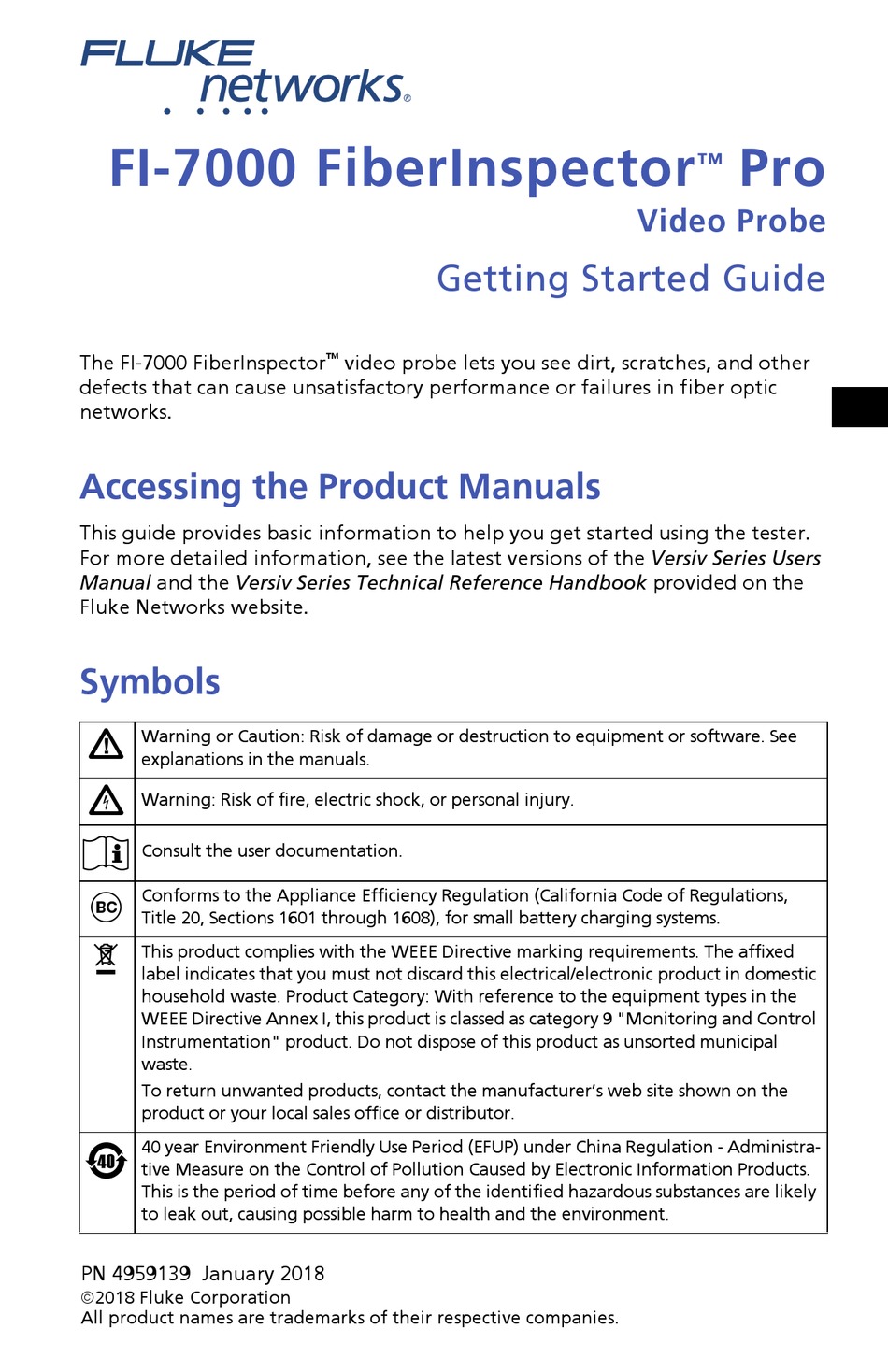

FI-7000 FiberInspector
The FI-7000 FiberInspector
defects that can cause unsatisfactory performance or failures in fiber optic
networks.
Accessing the Product Manuals
This guide provides basic information to help you get started using the tester.
For more detailed information, see the latest versions of the Versiv Series Users
Manual and the Versiv Series Technical Reference Handbook provided on the
Fluke Networks website.
Symbols
Warning or Caution: Risk of damage or destruction to equipment or software. See
W
explanations in the manuals.
X
Warning: Risk of fire, electric shock, or personal injury.
Consult the user documentation.
Conforms to the Appliance Efficiency Regulation (California Code of Regulations,
Title 20, Sections 1601 through 1608), for small battery charging systems.
This product complies with the WEEE Directive marking requirements. The affixed
~
label indicates that you must not discard this electrical/electronic product in domestic
household waste. Product Category: With reference to the equipment types in the
WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control
Instrumentation" product. Do not dispose of this product as unsorted municipal
waste.
To return unwanted products, contact the manufacturer's web site shown on the
product or your local sales office or distributor.
40 year Environment Friendly Use Period (EFUP) under China Regulation - Administra-
tive Measure on the Control of Pollution Caused by Electronic Information Products.
This is the period of time before any of the identified hazardous substances are likely
to leak out, causing possible harm to health and the environment.
PN 4959139 January 2018
2018 Fluke Corporation
All product names are trademarks of their respective companies.
Getting Started Guide
™
video probe lets you see dirt, scratches, and other
Pro
™
Video Probe
Advertisement
Related Manuals for Fluke FiberInspector Pro FI-7000
Summary of Contents for Fluke FiberInspector Pro FI-7000
- Page 1 For more detailed information, see the latest versions of the Versiv Series Users Manual and the Versiv Series Technical Reference Handbook provided on the Fluke Networks website. Symbols Warning or Caution: Risk of damage or destruction to equipment or software. See explanations in the manuals.
- Page 2 This Product contains a lithium-ion battery. Do not mix with the solid waste stream. Spent batteries should be disposed of by a qualified recycler or hazardous materials handler per local regulations. Contact your authorized Fluke Service Center for recy- cling information. ...
- Page 3 Have an approved technician repair the Product. For Products with rechargeable batteries, use only AC adapters approved by Fluke Networks for use with the Product to supply power to the Product and charge the battery. Caution To prevent damage to the Product or cables under test and to prevent data loss, read all safety information given in all documentation supplied with the Product.
-
Page 4: Connectors, Keys, And Leds
Type A USB port: This USB host port lets you save test results on a USB flash drive and connect the FI-1000 video probe to the tester. Versiv: Also lets you connect a Wi-Fi adapter for access to Fluke Networks cloud services. (Versiv 2 testers have an internal Wi-Fi radio.) ... - Page 5 Connector for the AC adapter. RJ45 connector: Lets you connect to a network for access to Fluke Networks cloud services. Removable tip for different types of connectors. Dial for focus adjustment. The button starts the FiberInspector test and switches the probe between still ...
- Page 6 3. Install the Correct Tip on the Probe See Figure 3. 4. Clean the Connector Use proper cleaning procedures to clean the connector you will inspect. 5. Do the FiberInspector Test To start the test, press the button on the probe, tap TEST, or press ...
- Page 7 6. Examine the Results See Figure 4: Manual limit selected (default): To give a PASS or FAIL grade to the image, tap GRADE. Test limit selected: To see an analysis of the defects, tap ANALYZE. The tester uses the selected test limit to give scratches and defects a PASS (green highlight) or FAIL (red highlight) grade.
-
Page 8: Contact Fluke Networks
About Fluke Networks Cloud Services With a Fluke Networks web account and a wired or wireless network connection, you can use the LinkWare Live web application to store and manage projects in the cloud. Go to https://www.linkwarelive.com/signin see the Users Manual or Technical Reference Handbook for more information.
