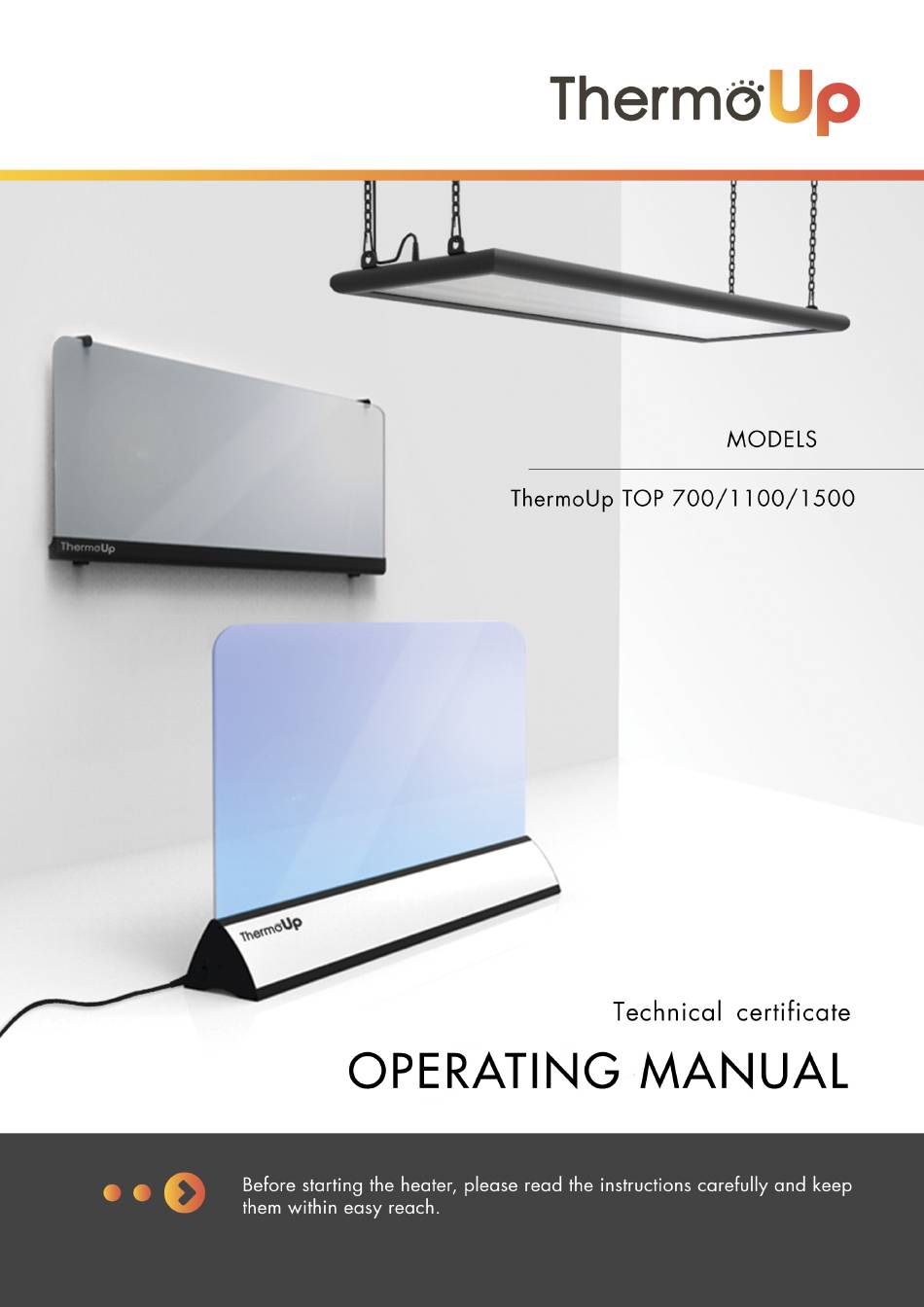

ThermoUp TOP 700 Operating Manual
Hide thumbs
Also See for TOP 700:
- Operating manual (77 pages) ,
- Owner's manual (90 pages) ,
- Operating instruction (66 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ThermoUp TOP 700
Summary of Contents for ThermoUp TOP 700
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Technical data Safety Measures Ceiling heater ThermoUp Top Operation, storage, and maintenance Possible malfunctions and solutions Warranty obligations Producte certification Certificate of Sale Warranty Card INCORPORATED SYMBOLS WARNING! Failure to comply with these requirements may result in severe injury or device damage. -
Page 3: Introduction
ThermoUp is an innovative heating system for your home, office or business space. ThermoUp heaters quickly warm up your space to the desired temperature and keep it warm for a long time. The thoughtful design and the reliable control system will impress even the most demanding customer. This is the ideal solution for your home or office. - Page 4 INTRODUCTION There are three kinds of heaters in the ThermoUp innovative line: • Floor heater – ThermoUp Floor/LED/LED Plus/Air • Wall heater – ThermoUp Wall • Ceiling heater – ThermoUp Top 700/1100/1500 Functionality Practicality Safety The reliable control system allows This is a new generation device, which ThermoUp’s glass panel has...
-
Page 5: Technical Data
TECHNICAL DATA GENERAL TECHNICAL DATA Table 1. ThermoUp heaters technical data Maximum Heated area temperature Weight, Power, Voltage, Current, Model Size, mm of glass panel heating, о С ThermoUp 828х186x27 Top 700 ThermoUp 828х278x27 1100 Top 1100 ThermoUp 828х325x27 1500... - Page 6 Heaters ThermoUp Top 700/1100/1500 can be used in wet areas without direct contact with water on the surface of the heater. The ThermoUp Floor heater must not be used in the immediate vicinity of a bath, shower or swimming pool.
-
Page 7: Ceiling Heater Thermoup Top
Electric Cord Case Thermoelement (glass) Fixed nuts for fasteners (mounted on the heater case) Figure 1. Heater ThermoUp Top 700/1100/1500 What’s included in the set: 1. Heater 2. Mounting kit: • 2 modular brackets with variable tilt angle; • 4 corners (for hanging the device on chains, chains are not included);... - Page 8 The strength of the ceiling, or the structures on which the heater is mounted, must be sufficient to withstand 5 times In the case of the ThermoUp Top there are cage nuts. Use the weight of the heater. them to attach the fasteners to the heater (the corners or the corresponding part of the bracket).
- Page 9 The strength of the ceiling or design for which the heaters are mounted must be sufficient to withstand 5 times the weight of the heater. Figure 3. Installation of ThermoUp Top heater...
- Page 10 80 °C. When using other materials for the ceiling covering, it is recommended to increase the distance from the heater to the ceiling, using alternative options to fix the device. Installation recommendations • The distance from the floor to the ThermoUp Top Table 2 heater must be at least 1.8 m.
- Page 11 CEILING HEATER THERMOUP TOP 700/1100/1500 Connection of ThermoUp Top 700/1100/1500 Connection is recommended to be made by qualified The heater can be connected directly to a 230 V network specialists. that has a protective earth conductor using a 3-wire cable with a core of at least 1.5 mm², as well as through an...
- Page 12 CEILING HEATER THERMOUP TOP 700/1100/1500 Scheme 2. Connection diagram through thermostat Scheme 3. Connection diagram through thermostat and power contactor ATTENTION! When you first turn on the heater, it may cause an unpleasant odor associated with the technological features of the production of the heater. This smell will disappear in the...
-
Page 13: Operation, Storage And Maintenance
• Relative air humidity up to 80% at a temperature of heater, you should regularly check the condition and +25 °C; integrity of the power cable, and for the ThermoUp Top • Store the heater in its original packaging. heater, it is also necessary to check the tightness of the terminal connectors once a year. -
Page 14: Warranty Obligations
WARRANTY OBLIGATIONS WARRANTY OBLIGATIONS The manufacturer guarantees the correct operation of the heater for 3 years from the date of purchase. If during the warranty period there are defects in the work of the device due to the manufacturer’s fault, the seller, whose name is in the certificate of sale, will repair this product free of charge or replace it with the conditions below. -
Page 15: Producte Certification
PRODUCT CERTIFICATION, CERTIFICATE OF SALE PRODUCT CERTIFICATION Product was certified on the Customs Union territory by Certificate of conformity with the following European Directives the certification body RA.RU.10AD75 Registred No .: 1805604715E/L18/46120 PRODUCT CB «ExpertAutoTest» LLC «Certification of machines Low Voltage Directive 2014/35/EU and equipment». -
Page 16: Warranty Card
WARRANTY CARD WARRANTY CARD Dear Customer! Should you find a heater malfunction, please contact us with via phone: +7 495 152-65-60 or via e-mail: service@thermo-up.com Filled by seller Remains in the Service Center WARRANTY CARD 1-1 WARRANTY CARD 1-2 Model Model Date of entry to the SC for repair Date of sale...
