ENGLISH

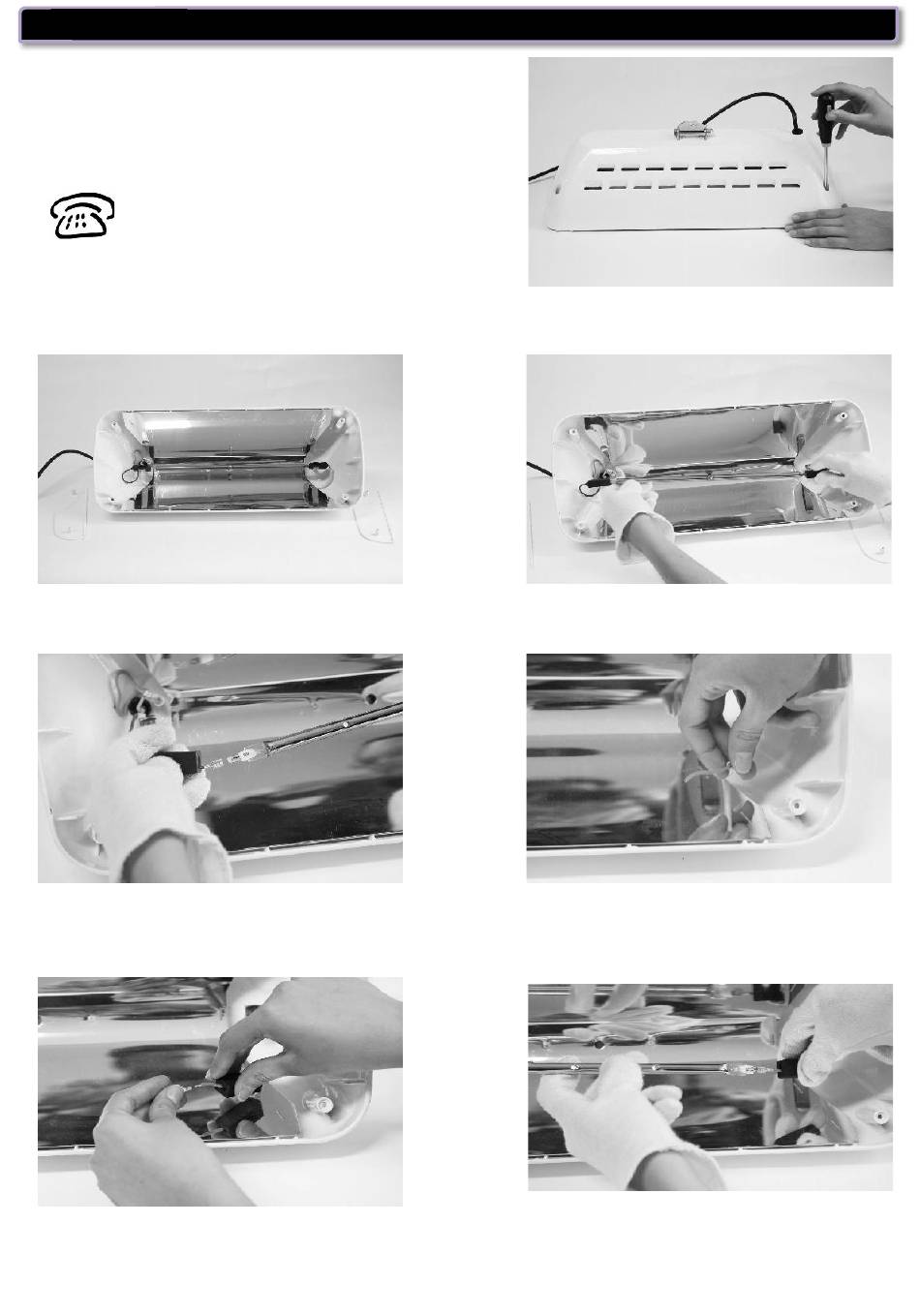

REPLACEMENT OF BULB
HELIOSA HI DESIGN 66 IPX5
If necessary, call our Technical
Service. Technical Office tel.
2. REMOVE THE TWO SIDE COVERS AND THE TWO LATERAL REFLECTOR
TERMINAL HEAD COMPONENTS.
4. REMOVE THE 2 BULB EXTREMITY HEAT-ELASTIC CAPS AND
DISCONNECT THE TWO FASTONS CONNECTING THE CORDS TO THE
BULB (IF THE CAPS USED DISPLAY SIGNS OF DRYING, THESE MUST BE
REMOVED BY CUTTING THE CORDS NEXT TO THE TWO FASTONS).
6. CONNECT THE MALE FASTONS OF THE NEW BULB TO THOSE OF
THE TWO CORDS. COVER THEM WITH THE HEAT- ELASTIC CAPS AND
RE-POSITION THE BULB IN THE SEAT OF THE SPRING CLIPS.
02/90639261
2
4
1. UNSCREW THE 4 SCREWS ON THE BACK.
3. RELEASE THE BULB FROM THE CLAMPS.
5. APPLY THE SPARE HEAT-ELASTIC CAPS TO REPLACE THOSE WHICH
HAVE BEEN REMOVED. STRIP THE CORDS (5-6 mm). APPLY THE NEW
SPARE FASTONS AND PRESS THEM ONTO THE STRIPPED PORTION OF
THE CORDS. DO NOT TOUCH THE BULB WITH YOUR BARE HANDS.
7.REASSEMBLE THE DEVICE BY PERFORMING THE ABOVE TASKS IN
REVERSE ORDER.
17
1
3
5
