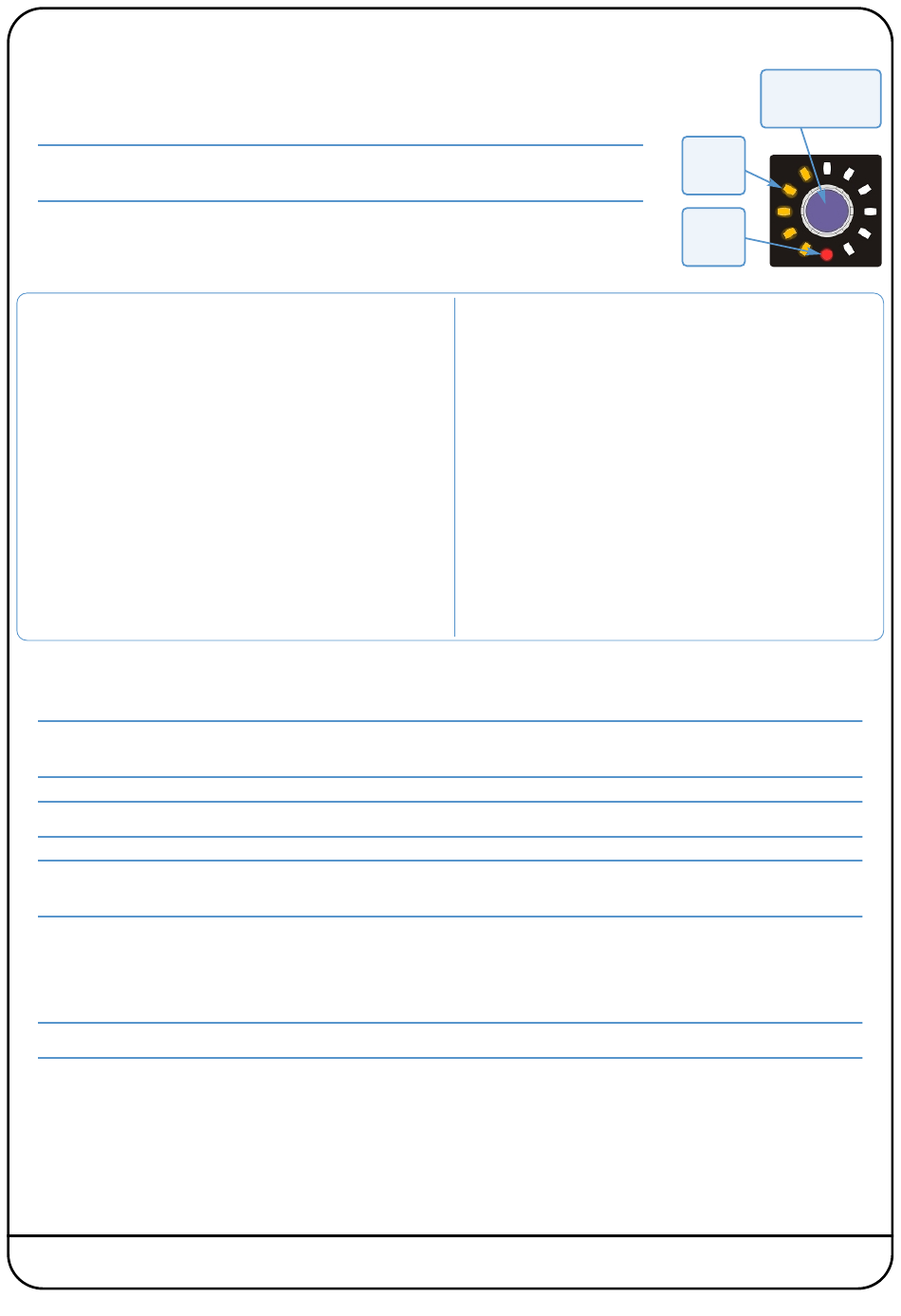

V-Pot and V-Sel Control
The channel V-Pots and V-Sel switches below the digital display fulfill a number of different
DAW-specific functions. The V-Pot value is displayed using the LEDs surrounding it and the
small red LED beneath indicates that the V-Sel switch is in its active position (as shown right).
Note that the V-Sel switch is activated by pressing on the V-Pot. Note also that the Mode
switches do not hold any function specific to the channel strip in which they are located.
Nucleus' Pro Tools and Logic profiles come programmed with a number of essential V-Pot
modes assigned to the Mode switches above the left-hand display. These are printed below
the switches. Full lists of default assignments are listed in the Appendix.
P T
RO OOLS
The default Mode switch functions are shown in white
boxes immediately beneath the switches. They are:
DEFAULT Initialises selected values: Hold DEFAULT
and press V-Pot to set it to 0dB (sends) or
centre (pan), or SEL to set fader to 0dB
MUTE When V-Pots are assigned to a Send, MUTE
switches the V-Sel function between
mute/unmute and pre/post switching
SEND A to E Assigns control of Sends A to E to V-Pots
PAN Assigns V-Pots to the channel pan function
Mode switch 16 – labelled 'KeybID', on the far right-hand side – also comes pre-assigned, to the 'Keyboard ID' function. This
function is required for part of the USB set up as described in Section 4.
Note that Mode switch assignments do not appear in the scribble strip display. If you change a Mode switch function
or assign functions to the right-hand Mode switches, we suggest creating your own labels to indicate the new function.
The right-hand Mode switches are not available if User 1 or User 2 (user soft keys) are selected.
Note also that the functions assigned to the Mode switches are programmed in the Nucleus Remote. See Section 5 for
more information.
Flip Mode
Pressing the FLIP switch to the right of the left-hand display, triggers the HUI 'Shift' command or the MCU 'Flip' command,
and assigns the V-Pot parameter to the fader.
Pro Tools users: FLIP only works on Sends A to E. In FLIP mode, the send pan control is assigned to the V-Pot.
Nucleus Owner's Manual
The default Mode switch functions are shown in white text,
immediately above the display. Use the SEL switches to
select the channel to which modes are applied. Some
functions involve holding a Mode key and pressing a V-Sel:
INSTRUMENT Opens the instrument editor on an
instrument track
PLUG IN Opens the plug-in editor
EQ Opens the EQ editor
PAN Assigns pan control to the V-Sel switches
SEND Opens the Sends editor
TRACK Assigns channel parameters to V-Pots
Turn for V-Pot
Press for V-Sel
V-Pot
level
V-Sel
status
L
OGIC
