MIDI C
IP ONFIGURATION
The ipMIDI driver enables your DAW to send and receive MIDI control data via the network connection, and must be configured
to match the requirements of Nucleus before it can be used.
Macintosh
Once the driver has been installed and you have logged back in, use the Finder to navigate to the Utilities folder (in
Applications). Double-click Audio MIDI Setup, select MIDI Devices and double-click on the ipMIDI icon. Set the number of
MIDI ports to 6 in the resulting pop-up.
Windows
Once the computer has restarted after installing the driver, right-click on the ipMIDI icon in the Task Bar, select ipMidi - MIDI
over Ethernet and set the number of MIDI ports to 6 in the resulting pop-up.

MIDI Port Mapping

MIDI control for the three Nucleus Layers is split across the six ipMIDI ports which means that your DAW must be configured
to match the following:
Note that CC Layers only use the first MIDI port in their layer. All CC data is sent on MIDI Channel 1.
Setting which ipMIDI ports the DAW should use is performed using the MIDI controller configuration page of your DAW. Below
and overleaf are two examples using Pro Tools 8 and Logic Pro 9.

Pro Tools 8

In the Setup menu, click on Peripherals and select the MIDI Controllers tab.
For MIDI controllers 1 and 2, select 'HUI' as the
MIDI controller 'Type' and assign the MIDI ports
for this layer's DAW to the two MIDI controllers,
as listed in the table above.

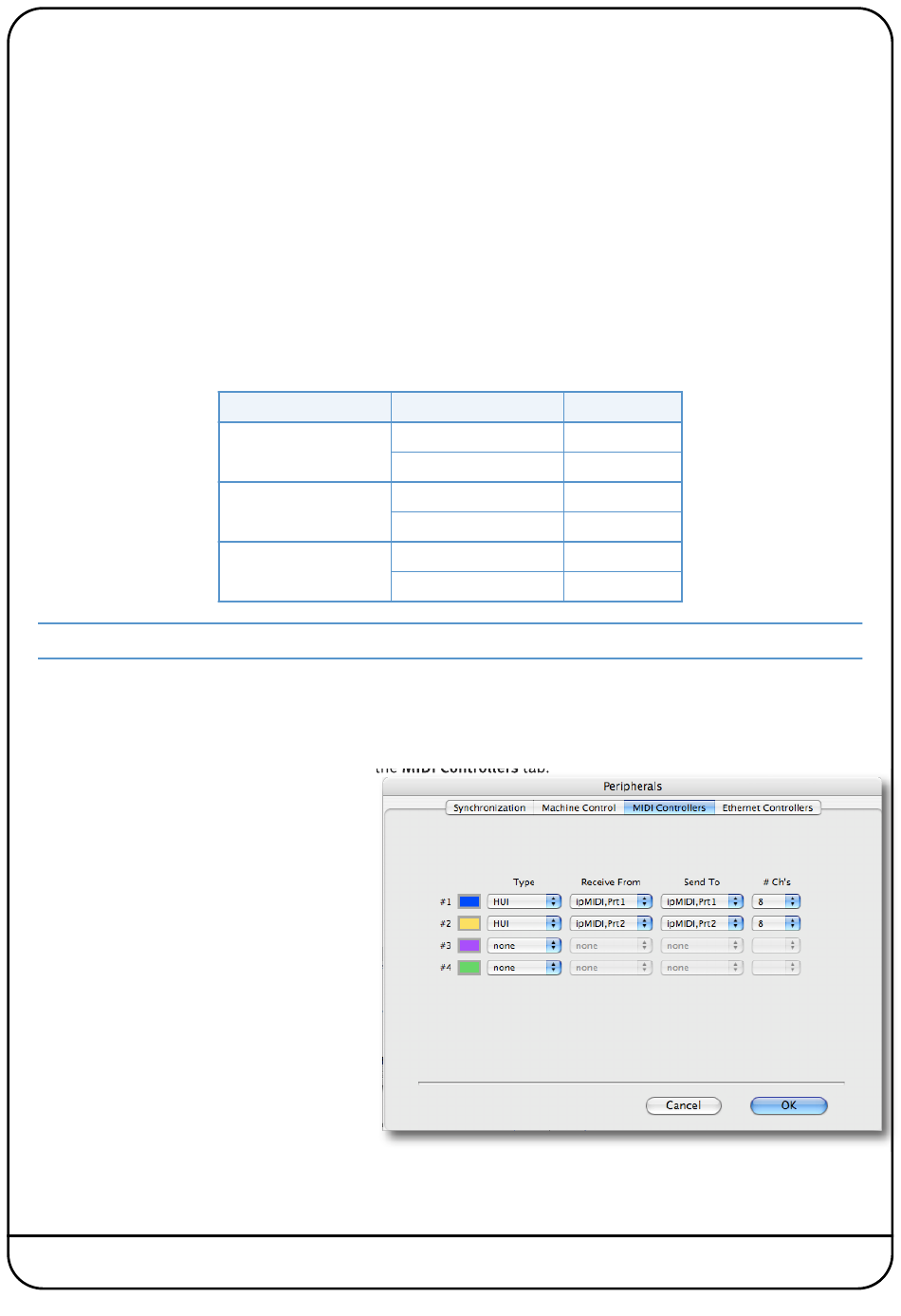

As an example, if Pro Tools has been assigned to
Layer 1 (so using ipMIDI ports 1 & 2), the MIDI
Controllers tab should look as opposite.
Nucleus Owner's Manual
Nucleus DAW Layer
1
2
3
Nucleus Channels ipMIDI port
1 to 8
9 to 16
1 to 8
9 to 16
1 to 8
9 to 16
1
2
3
4
5
6
Page 15
