Thank you for purchasing the USB Device Server "DS-510".
This Setup Guide provides information on how to configure
and use the DS-510 in your network.
Package Contents
DS-510
AC adaptor
Warranty Booklet
Setup Guide (this document)

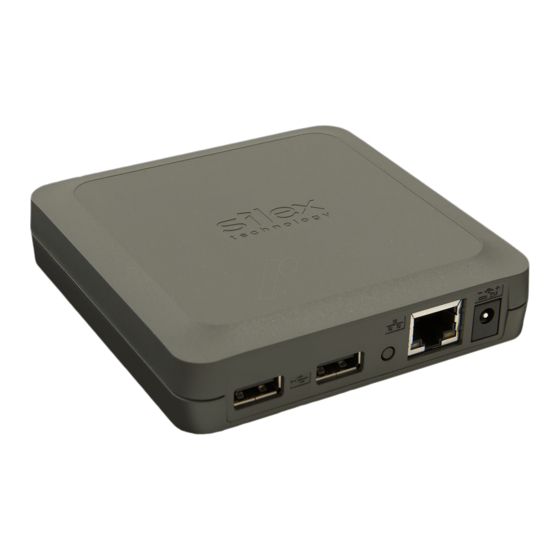

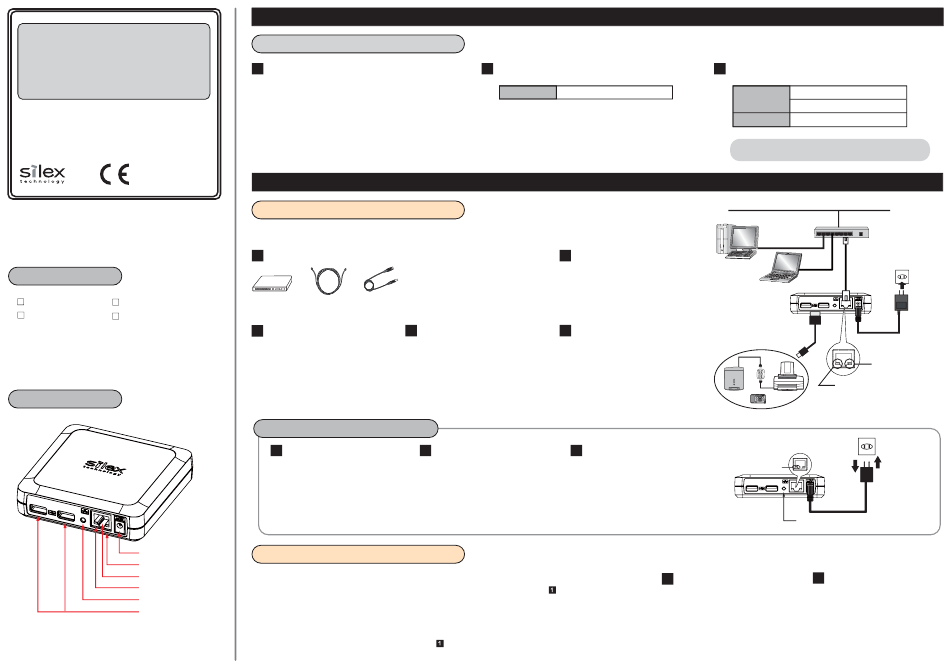

Name of Parts
Power connector
POWER LED
Network port
LINK LED
Push Switch
USB port
Downloading the necessary items
1
Access the URL below from the computer you are using to
configure the DS-510.
URL: https://www.silextechnology.com/
1-1. Power on
How to power on the DS-510 is explained:
1 The following items are required. * If the DS-510 has been used in another network,
reset it to factory default first (see below for
details).
Ethernet HUB Network cable USB cable
3 4
Connect the DS-510 to the USB device Connect the AC adaptor to the DS-510 (3)
using a USB cable (2). and the AC plug to the power outlet (4).
Check that POWER LED and LINK LED
turn on (5).
* There are USB devices not supported due to
the driver specification. Please check the
* Be sure to use the AC adaptor that came
latest compatibility information on our
with the DS-510.
website.
* For each USB port, only 1 device can run on
bus power.
Factory Default Configuration
1 2 2
Remove the AC plug from the power
outlet (1).
1-2. Configuration
How to configure the DS-510 is explained:
By default, the DS-510 is configured to automatically obtain an IP
address from the DHCP server. If the DHCP server is installed on
your network, the configuration will not be necessary. In such a
case, go on to install the SX Virtual Link (see the back).
When you want to configure the IP address manually or you are not
sure if there is the DHCP server on your network, move on to
Before You Begin
This section explains how to download the necessary utilities and user's manual from our website.
2
Go to the Support page and select the product model.
Product Model DS-510
Step 1. Power on and Configuration
2 Connect the DS-510 to the Ethernet
HUB using a network cable (1).
5
If the USB device requires external
power, use the power supply cable (6).
3
Push and hold the push switch (2) When the LINK LED starts to blink (4),
with a fine tipped object such as a pen the factory default configuration is
or pencil while inserting the AC plug complete.
back into the power outlet (3). Release the push switch.
Continue holding.
* Before moving on to , please temporarily disable
the firewall function of the computer you use for
configuration. Some of the methods to disable the
firewall are provided in the FAQ on our homepage.
- Standard Windows XP firewall
- Commercial security software's firewall function
.
3
Download the utilities and user's manual below and extract them on
your computer.
Device Server Setup
Utility
SX Virtual Link
User's Manual DS-510 User's Manual
There are Windows version and Macintosh version for each utility.
Please download the one appropriate for your operating system.
Network
(2)
USB Cable
(6)
LINK LED
USB Device
(4)
(1)
LINK LED
AC Adaptor
（2）
Push Switch
2 2
1 See the contained PDF manual (Device
Extract the Device Server Setup file
Server Configuration) to configure the
that you have downloaded at
DS-510 using the Device Server Setup
Downloading the necessary items.
utility.
Ethernet HUB
Network Cable
(1)
Power Outlet
(4)
(3)
AC Adaptor
POWER LED
(5)
Power Outlet
(3)
