1 About the SX-2000U2

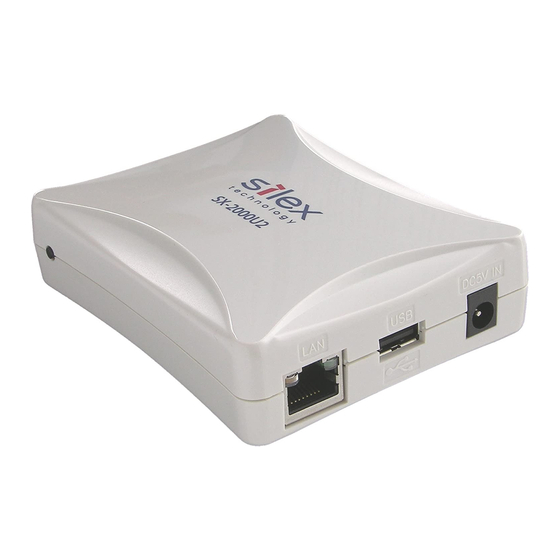

The SX-2000U2 is a USB device server that supports 10BASE-T/100BASE-TX. This product
enables various USB devices to be shared by PCs running Windows 2000/XP.
1.1 Features
- Share various USB devices
By using this product and the bundled utility, "SX Virtual Link," it is possible to share USB devices
such as printers, scanners, storage devices among PCs running Windows 2000/XP. In addition, network
skill is not required for using this product. This product allows you to use USB devices as if they were
connected directly to your PC.
- Easy Configuration
The bundled software CD-ROM, "Device Server Setup CD" includes a wizard-style configuration utility.
It allows you to configure this product as well as install the software easily by answering questions on
the screen.
- Printer auto connection
When printing to a USB device, executing the print operation to the device will automatically prompt SX
Virtual Link to connect with the device to print, and then disconnect once the job is printed. It is not
required to manually connect to the device with SX Virtual Link for printing.
- silex technology shall not be liable for any loss or damage of data in data storage devices
resulting from the use of this product. silex technology shall not also be liable for any leak,
TIP
manipulation, loss, or corruption of data in data storage devices connected to this product as a
result of improper use.
- USB devices using isochronous transmission, such as web cameras or speaker devices, are not
supported.
- Some USB devices may not be supported depending on the USB device driver specification.
Please refer to our web site(
About the SX-2000U2
Users Manual
http://www.silex.jp/
) for the latest compatibility information.
1-1
Advertisement
Table of Contents
Related Manuals for Silex technology SX-2000U2
Summary of Contents for Silex technology SX-2000U2
- Page 1 SX Virtual Link for printing. - silex technology shall not be liable for any loss or damage of data in data storage devices resulting from the use of this product. silex technology shall not also be liable for any leak, manipulation, loss, or corruption of data in data storage devices connected to this product as a result of improper use.
- Page 2 Users Manual 1.2 Parts on the SX-2000U2 Parts and function [BOTTOM] [SIDE] (2) Push Switch [BACK] (3) STATUS LED(Orange) (5) Power Connector (4) LINK LED(Green) ( 1 ) E t h e r n e t (The last 6 Address...
- Page 3 VCCI Class B / FCC Class B / EN55022 Class B / EN55024 32bit RISC CPU Memory RAM: 8MByte / FlashROM:2MByte Network interface 10BASE-T/100BASE-TX 1 port.(automatic detection) Device interface USB2.0 Hi-Speed(A Type): 1 port Others Push Swtich:1 button LED: STATUS LED (Orange), LINK LED (Green) About the SX-2000U2...
- Page 4 Windows 2000, Windows XP [TCP/IP] FTP, HTTP, TELNET, DHCP, BOOTP, TCP, UDP, ARP, IP, Supported protocols ICMP, JCP(silex technology, Inc. proprietary protocol), SXUPTP(silex technology, Inc. proprietary protocol) Total number of USB interface 15 (including USB hub) connections * Number of connections This product recognizes the following configuration as 4 USB connections.
- Page 5 Start the configuration utility of this product. Application Installation Start the SX Virtual Link installation. The SX Virtual Link is the utility that allows the use of USB devices over a network. Manual Displays the PDF manual for this product (operation manual). About the SX-2000U2...
