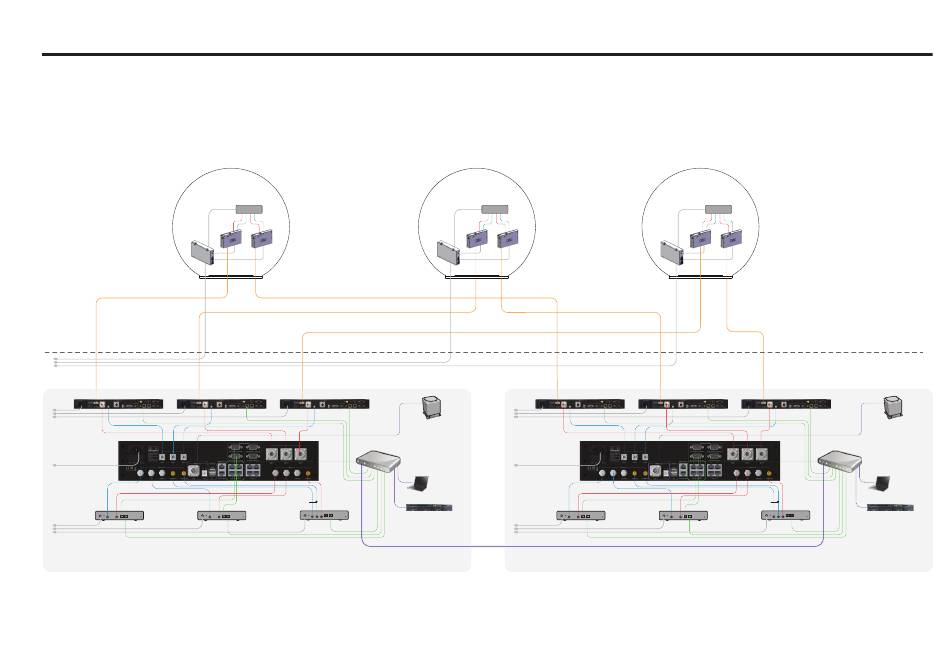

Tri-band Antenna System with Dual Data Center
Antenna 1
Fiber
Link 1
Power Box
AC 100~240V
ACU 1 Fiber Cable ACU 2 Fiber Cable
TX Rx Ethernet TX Rx
AC 100~240V
Intelligent Mediator
AC 100~240V
RX TX Console(Optional) RX TX
C-band Modem Ku-band Modem
(Not supplied)
(Not supplied)
LAN
AC 100~240V
Dual Data Center 1 (Primary)
IFL Switch
IFL
Fiber
Link 2
ACU 3 Fiber Cable
Ethernet TX Rx Ethernet
Router
(Not supplied)
RX2
Console(Optional) RX1 TX
Ka-band Modem
(Not supplied)
LAN LAN
Antenna 2
IFL Switch
IFL
Fiber
Fiber
Link 2
Link 1
Power Box
ACU 1 Fiber Cable
Ship's
Gyrocompass
(Not supplied)
TX Rx
AC 100~240V
Intelligent Mediator
AC 100~240V
PC
(Not supplied)
RX TX Console(Optional)
C-band Modem
M&C Server
(Not supplied)
(Not supplied)
AC 100~240V
Antenna 3
IFL Switch
IFL
Fiber
Fiber
Link 2
Link 1
Power Box
ACU 2 Fiber Cable ACU 3 Fiber Cable
Ethernet TX Rx Ethernet TX
RX2
RX TX Console(Optional) RX1
Ku-band Modem Ka-band Modem
(Not supplied) (Not supplied)
LAN LAN
Dual Data Center 2 (Secondary)
Installation
Above Decks
Below Decks
Ship's
Gyrocompass
(Not supplied)
Rx Ethernet
Router
(Not supplied)
PC
(Not supplied)
TX
M&C Server
(Not supplied)
LAN
