Installation

Mounting the Intelligent Mediator

Intellian supplies two types of mounting methods: a 19" Rack
Mount Type and a Table Mount Type to mount the Intelligent
Mediator.

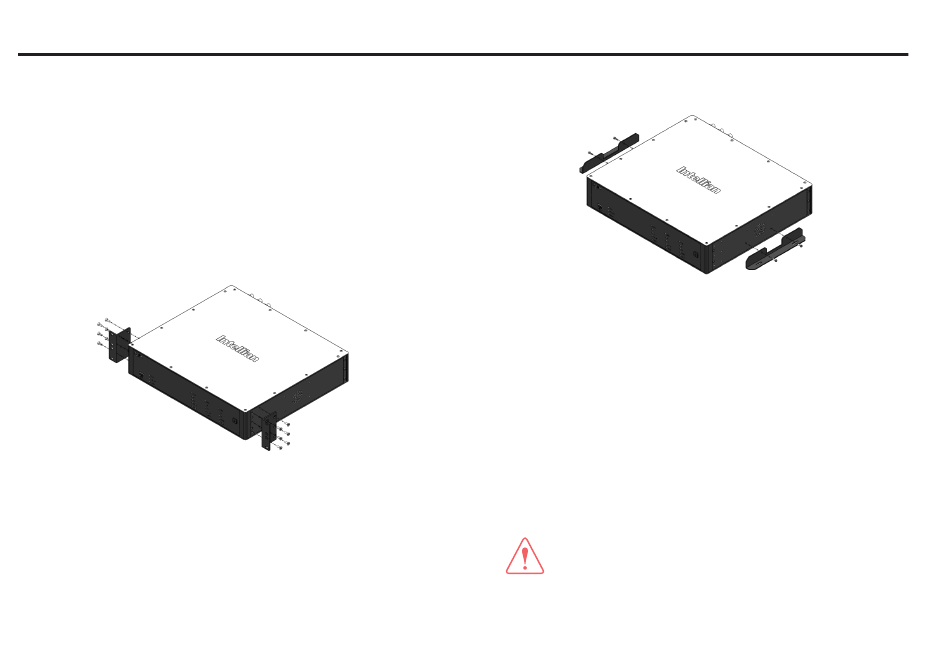

19" Rack Mount Type
19" Rack Mount Type Intelligent Mediator
The Intelligent Mediator should be installed using the two
supplied 19" Rack Mounting Brackets. Using the Flat Head
Screw supplied, attach the mounting brackets to the sides of
the Intelligent Mediator. Place the Intelligent Mediator in the
location where it is going to be installed. Connect the cables
to the rear of the Intelligent Mediator.
10
Table Mount Type
Table Mount Type Intelligent Mediator
The Intelligent Mediator should be installed using the two
supplied Table Mounting Brackets which allow for a top
or bottom mounting configuration. Using the Sems Bolt
supplied, attach the mounting brackets to the sides of the
Intelligent Mediator. Place the Intelligent Mediator in the
location where it is going to be installed. Using a pencil
to mark the 4 hole positions (2 on each side), and use the
appropriate drill bit to screw down the brackets. Connect the
cables to the rear of the Intelligent Mediator.
WARNING: Ensure that the cables connected
to the Intelligent Mediator are long enough to
prevent damage when the Intelligent Mediator is
WARNING
pulled out from the rack.
