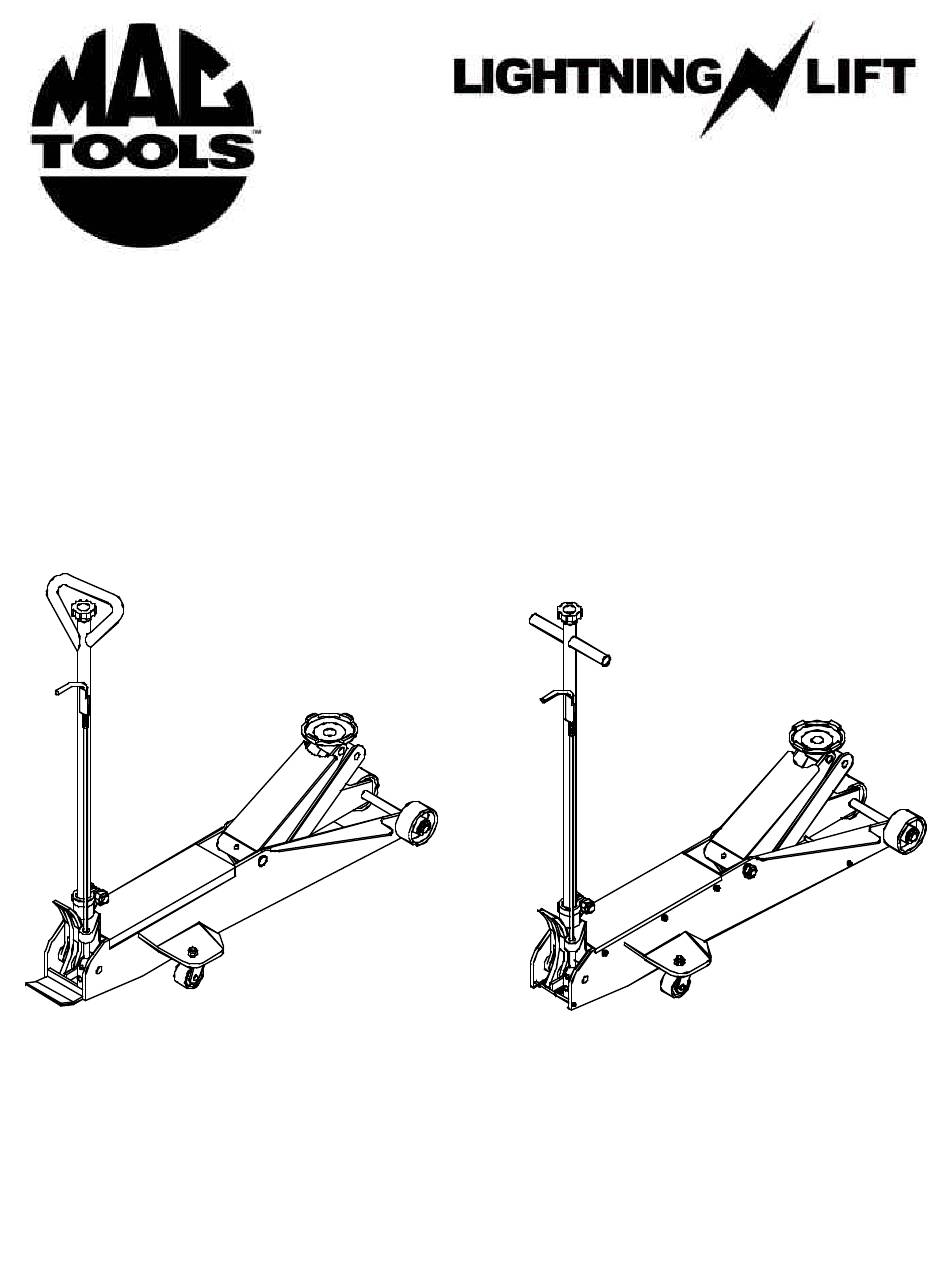

- Page 1 Service Jacks Operating Instructions & Parts Manual Model Number Capacity JSA500MA 5 Ton JSA1000MA 10 Ton JSA1000MA JSA500MA MAC TOOLS INC. 505 N. Cleveland Ave. Suite 200 Westerville, OH 43082 JSA500MA-M0 Printed in PRC...
-
Page 2: Product Description
Save these instructions. For your safety, read, understand, and follow the information provided with and on this jack. The owner and operator of this equipment shall have an understanding of this jack and safe operating procedures before attempting to use. The owner and operator shall be aware that use and repair of this product may require special skills and knowledge. -
Page 3: Before Use
BEFORE USE ASSEMBLY 1. Verify that the product and the application are Little, if any, assembly is required of this jack. Always compatible. secure the handle into the handle sleeve by means of 2. Before using this product, read the owner's manual the bolt and lock washer provided. -
Page 4: Maintenance
MAINTENANCE Important: Use only a good grade hydraulic jack oil. 3. Fill with oil until ~3/16" above the inner cylinder as Avoid mixing different types of fluid and NEVER use seen from the oil filler screw hole. Reinstall the oil brake fluid, turbine oil, transmission fluid, motor oil or filler screw. -
Page 5: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, Mac Tools Inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy. -
Page 6: Replacement Parts
REPLACEMENT PARTS Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give Model number, serial number and parts description. Call or write for current pricing: Mac Tools Inc. 505 N. Cleveland Ave. Suite 200 Westerville, OH 43082. Tel: 1800-MAC- TOOL (622-8665) Model# JSA500MA Item#... - Page 7 Model# JSA1000MA Item# Part# Description Qty. G65-1-1000-0000 Power Unit G66-1-0000-1000 Front Wheel G66-1-7000-0000 Rear Caster Assembly G25-1-0000-2000 Saddle G62-S-0330-1000 Oil Filler Screw G66-1-9000-0000-05 Handle Assembly G25-1-0000-9000 Foot Pedal G25-1-2000-4000 Release Shaft Assembly G25-1-0000-4000 Return Spring G15-0-0000-5000 Lift Arm Return Spring —...
