MAG TOOLS JSA2200AJ Owner's Manual

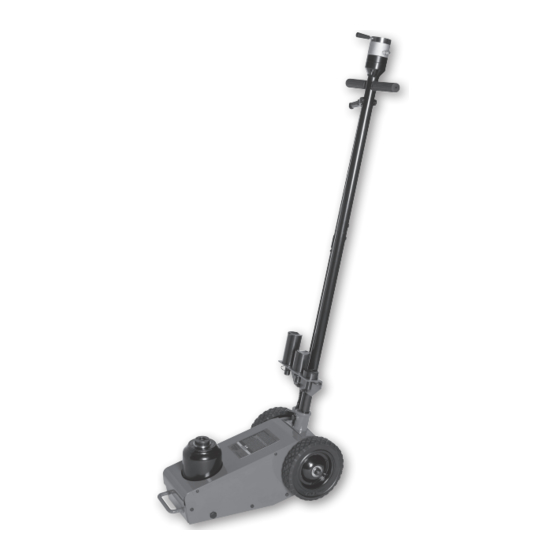

22-ton capacity air/hydraulic truck jack
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
OWNER'S MANUAL
Maximum Capacity ........................... 22-Ton @ 100 psig
Low Height ........................................................... 8-7/8"
Max Height ......................................................... 17-5/8"
Extension Screw Adjustment .......................................4"
Ram Travel ...........................................................4-3/4"
Overall Length ....................................................23-1/2"
JSA2200AJ
SPECIFICATIONS
Overall Width .....................................................12-7/16"
Saddle Diameter ............................................... 1-13/16"
Wheel Diameter .......................................................... 8"
Handle Length ....................................................48-3/8"
Weight ................................................................73-Lbs.
JSA2200AJ
22-TON
CAPACITY
AIR/HYDRAULIC TRUCK JACK
ASME PASE-2014
© 2016 Mac Tools
5/13/16
