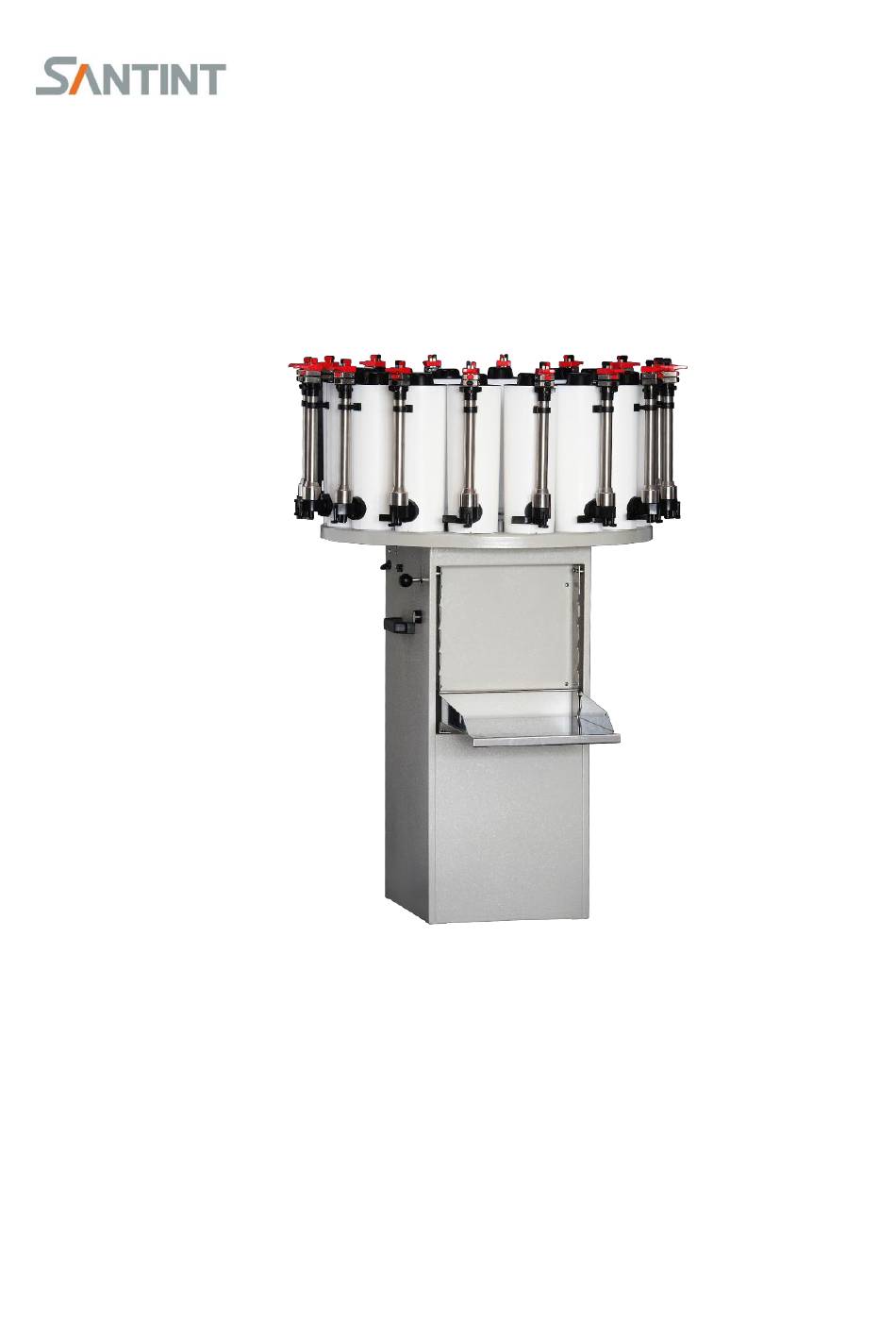

- Page 1 M3 Manual Dispenser User’s Manual Please read this manual carefully before operation...
-
Page 2: Table Of Contents
Contents Preface……………………………………………………………………………………………...…1 1. General Safety Instructions………………………………………………………………….……1 2. Configuration………………………………………………………………………………………2 3. Major Specifications………………………………………………………………………………2 4. Installation and Preparations before Operation…………………………………………...……3 4.1 Installation………………………………………………………………………………………3 4.2 Preparation before operation……………………………………………………………………3 5. Operation……………………………………………………………………………………..……4 5.1 Color Mixing………………...…………………………………………………………………4 5.2 Rotating and Locking of Turntable………………………………………………………….…4 5.3 Dispensing Procedures…………………………………………………………………………5 6. Maintenance………………………………………………………………………….……………7 6.1 Daily Maintenance……………………………………………………………………….……7 6.2 Weekly Maintenance……………………………………………………………..……………7 6.3 Periodical Maintenance…………………………………………………….……………………7 6.4 Yearly Maintenance……………………………………………………………………………8... -
Page 3: Preface
Preface Thanks for purchasing the Santint Manual Dispenser! This user’s manual provides general information on installation, usage and maintenance of our manual dispenser. Any improper use will shorten its longevity. Read this manual completely and carefully before installation, use and maintenance of the machine. The manual should be kept in a convenient place for future reference. -
Page 4: Configuration
U.S. Fluid Ounce: 0.077ml(1/384 USOZ) Minimum Shot U.S. Metric Fluid Ounce: 0.081ml(1/384US METRIC OZ) Metric: 0.1ml Dimension 600 x600x1200 710 x710x1200 860 x860x1200 860x860x1200 1016X1016X1200 1150X1150X1200 (mm) Net Weight 48KG 53 KG 63 KG 65KG 72KG 85KG Santint M3 Manual Dispenser V1.0... -
Page 5: Installation And Preparations Before Operation
Press it gently so that it can be locked into the grooves of the location plate. See Figure 3. (Return the tray back to its original position when it is not in use) Fixing Plate Groove Tray Santint M3 Manual Dispenser V1.0... -
Page 6: Operation
Santint M3 Manual Dispenser V1.0... -
Page 7: Dispensing Procedures
Notice: the base paint can shall be as near as possible to the housing. C．See figure 6, press the black (red) button and lift the black (red) gauge. Align the measuring mark with the upper surface of the handle then release the button to lock the gauge. Santint M3 Manual Dispenser V1.0... - Page 8 Nozzle End Plate Valve Key (Figure 7) F. Press down the black button, reset the black gauge to its zero position. Release the red button. Santint M3 Manual Dispenser V1.0...
-
Page 9: Maintenance
The dispenser must be maintained every 3-6 months for the following aspects: A Check the fixed base is loosed or not (Figure a)，If loosed, push the base to the most bottom position, fasten two screws of the base Symmetrically with inner hexagon Spanner. (Figure b， Santint M3 Manual Dispenser V1.0... -
Page 10: Yearly Maintenance
Clean the canister with warm water to get rid of most of the adhesive colorant; d Properly dispose the mix of cleaner and colorant according to local environmental regulations; e Reinstall the canister on the turntable; Santint M3 Manual Dispenser V1.0... -
Page 11: Replacement
Put the screw into the big hole Notice Insert paddle shaft into the drive hole. Santint M3 Manual Dispenser V1.0... -
Page 12: Calibration
Normally the machine has been precisely calibrated and ready for use before leaving the factory. Yet in the following cases, new calibration is necessary: When replacing either the Rough or Fine gauge or the location pin of the said gauge. The dispensing result is not accurate. Santint M3 Manual Dispenser V1.0... -
Page 13: Long Time Not Using
Dispense out some colorant (1ml) periodically (every 5 days) to avoid the nozzle becoming dry and hard. Otherwise, disconnect the power supply, pour the colorant into clean(or corresponding) canister, and clean the container to avoid the colorant becoming dry in the pump. Santint M3 Manual Dispenser V1.0... -
Page 14: Troubleshooting
The crank shaft under the canister is Agitator doesn’t move during not attached to the plastic sleeve of Reinstall the canister. mixing. the rotating panel. Colorant leakage at the Worn out O-ring. Replace O-ring. nozzle. Santint M3 Manual Dispenser V1.0... -
Page 15: Circuit Diagram
8. Circuit Diagram Santint M3 Manual Dispenser V1.0... - Page 16 ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO. LTD. Feilong Road, Zheng zhou Xingyang Industries Convergent Areas， ADD: Zhengzhou City, Henan Province. PR. China. 450042 TEL： （86）371-67857168 After-Service： （86）371-67857319 FAX： （86）371-67857166 WEB：http://www.santint.com E-mail:info@santint.com Santint M3 Manual Dispenser V1.0...
