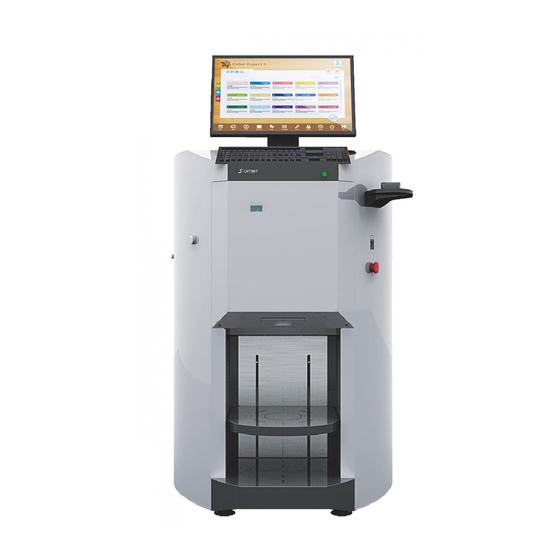

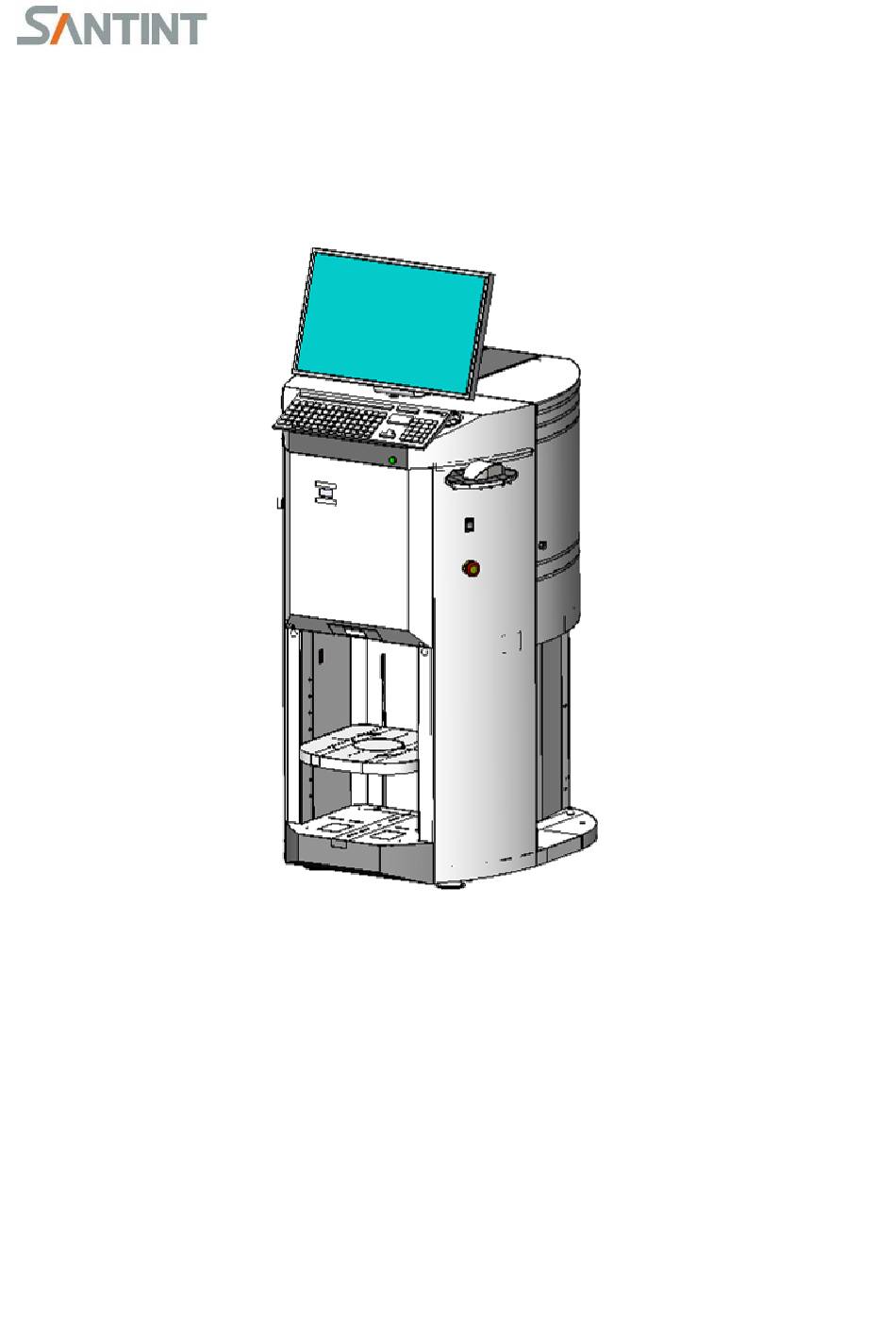

- Page 1 A4/A4B Automatic Dispenser -100% Recirculation User Manual Santint V1.0 A4/A4B Automatic Dispenser...
-
Page 2: Table Of Contents
Contents 1. Using Requirement……………………………………………………………………………………1 2. Specifications…………………………………………………………………………………..………1 3. Safety Instructions………………………………………………………………...…..………………2 4. Machine Composition………………………………………………………………...………………2 5. Installation……………………………….………………………………………………….…………4 5.1 Installing Machine………………………………………………………………………………4 5.2 Installing Computer……………………………………………………………………….……5 5.3 Installing Software………………………………………………………………………..……5 6. Machine Adjustment…………………….……………………………………………………………6 6.1 Software Adjustment……………………………………………………………………………6 6.2 Machine Adjustment……………………………………………………………………………6 6.3 Add Colorant……………………………………………………………………………………6 6.4 Emptying Pump……………………………………………………………………….…………7 6.5 Calibration of Colorants………………………………...………………………………………7 7. -
Page 3: Using Requirement
AUTO MAX 390mm x 420mm MANUAL MIN 360mmX450mm A4: Auto: 160±5 kg Manual: 140±5kg ＜70dBA Noise Level Weight： A4B: Auto: 240±5 kg Manual: 210±5kg A4: 1270X707X848（mm） Machine Size (Height x Width x Depth) A4B: 1290X870X1026（mm） Santint V1.0 A4/A4B Automatic Dispenser... -
Page 4: Safety Instructions
10. It is forbidden to work the machine in the inflammable and explosive environment. 11. No hot-plug of the serial port line. 4.Machine Composition Canister Assy Lifting Assy Washing Assy Auto Loading Platform（Optional） Santint V1.0 A4/A4B Automatic Dispenser... - Page 5 Lifting assembly：with the assistance of electrical control system, the machine can make the piston up and down so to dispense colorant out. Only authorized personnel are allowed to open the front door for service. Loading plate：paint can is located herein. Santint V1.0 A4/A4B Automatic Dispenser...
-
Page 6: Installation
Take out the mouse tray from the tool kit and fix it onto the side of the machine. Fig.5.1.4 Insert the power supply wire into the socket on the back of the machine. Fig5.1.5 Santint V1.0 A4/A4B Automatic Dispenser... -
Page 7: Installing Computer
Hot plug of serial port line is prohibited. 5.3 Installing software. 1. Turn on monitor and the computer, run windows system. 2. Open CD-ROM, put in the installing disk, run the CD-ROM; See Software Manual for detail info about installation and using. Santint V1.0 A4/A4B Automatic Dispenser... -
Page 8: Machine Adjustment
Software Manual, and please assign the colorants to respective canisters if it is necessary to change. The left side of the machine is default side for adding the colorant. Santint V1.0 A4/A4B Automatic Dispenser... -
Page 9: Emptying Pump
Stir for 30 minutes after adding colorants, to remove bubbles. When no continuous dispensing of colorants, please re-empty air or check if nozzle is blocked. All the preparation steps are followed, the colorants could be dispensed after 4 hours. Santint V1.0 A4/A4B Automatic Dispenser... -
Page 10: Operation
B. There are 3 platforms for manual version. You may locate them onto the positions you use most frequently. Platform Push into Sensor（Manual machine Version） not used. Santint A4/A4B Automatic Dispenser V1.0 Platform in use. - Page 11 4. Insert the cleaning box into its seat (push it to ensure the hairbrush shaft contact the motor) and rotate the locking handle anti-clockwise to fasten it. Press the cleaning box. B．Washing the cleaning box. Pull cleaning box and clean it. Fix it back. Santint A4/A4B Automatic Dispenser V1.0...
-
Page 12: Maintenance
Loose the three screws which fix the canister on the turntable using screwdriver, and then drive the canister anticlockwise to take off the canister. Replacing Inner Canister： a. If you will replace the inner canister, you want to take off its right outer canister first. Santint V1.0 A4/A4B Automatic Dispenser... -
Page 13: Circuit Diagram
Remove the screw on the bracket to fix the canister, pull out the bracket for 10mm. Pay attention to not to pull out the bracket too much to avoid the colorant leaking off the canister. c. Rotate the canister anticlockwise, the canister can be taken off the turntable. 10. Circuit Diagram Santint V1.0 A4/A4B Automatic Dispenser... -
Page 14: Troubleshooting
“Emergency Stop 2 Broken emergency stop Change the switch or connect the wire. Switch Unreleased” switch or the wire is broken. LCD shows “Door 1 The door is not closed Close it properly. Unclosed” properly. Santint V1.0 A4/A4B Automatic Dispenser... - Page 15 Valve motor sensor is broken. Change the driver circuit board. Left valve sensor is too far away. Make it nearer. Left valve sensor is broken. Change it. Contact the supplier with the model and serial number for other issue(s). Santint V1.0 A4/A4B Automatic Dispenser...
- Page 16 ZHENGZHOU SANHUA TECHNOLOGY & INDUSTRY CO. LTD. ADD: Feilong Road, Zheng zhou Xingyang Industries Convergent Areas， Zhengzhou City, Henan Province. PR. China. 450042 TEL：(86) 371-67857168 After-Service：(86) 371-67857319 FAX：(86) 371-67857166 WEB：http://www.santint.com E-mail:info@santint.com Santint V1.0 A4/A4B Automatic Dispenser...
