Device Design; Front Panel - Aztech VDSL5040GRV(AC) User Manual

Device Design

Front Panel

Top Panel

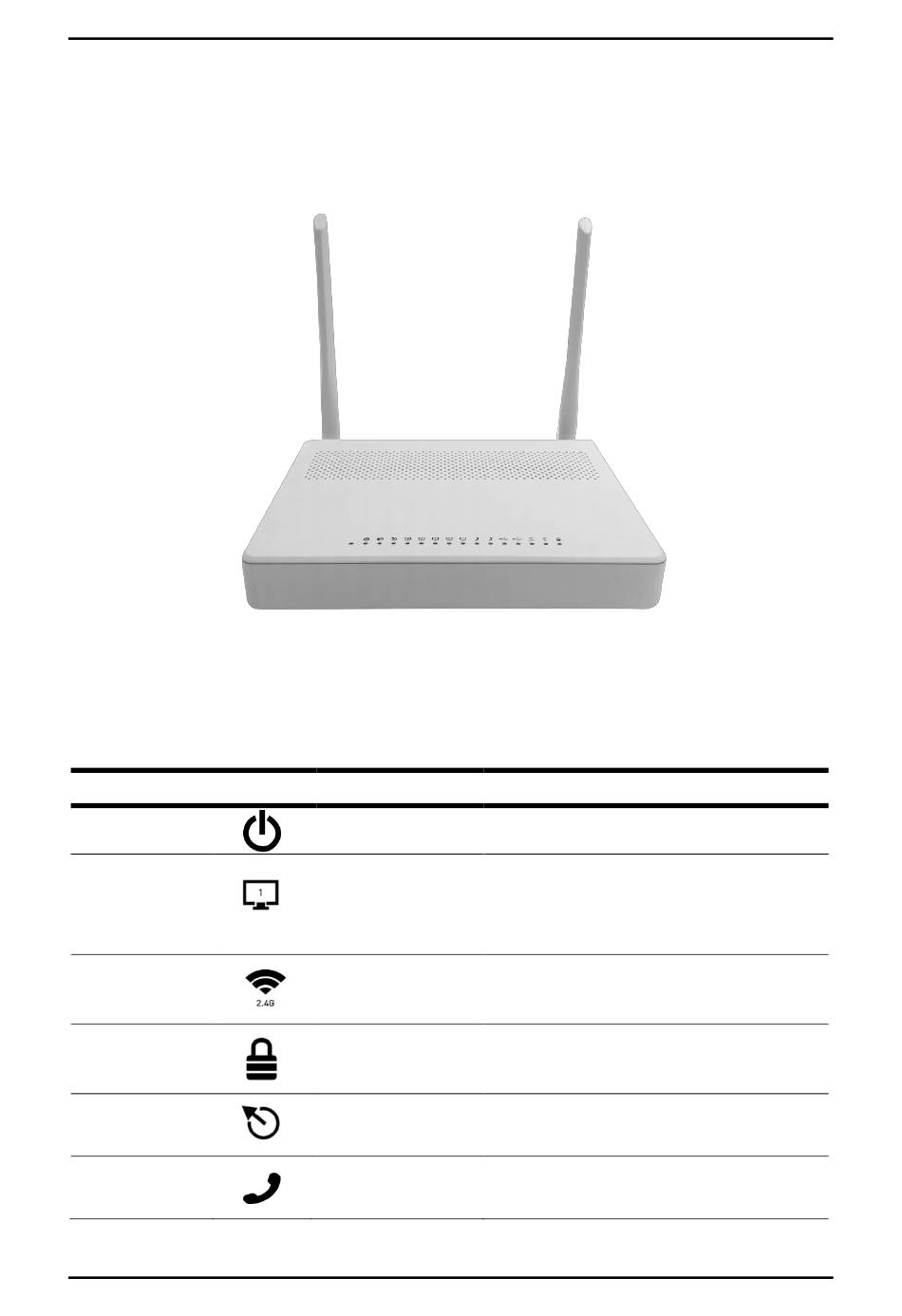

The top panel provides LEDs. You can check the modem router's working
status by following the LED Explanation table.
LABEL ICON
POWER
ETHERNET
LAN 1-4
WIRELESS
2.4GHz / 5GHz
WPS
DSL
VOIP
ACTION
OFF
Steady green
OFF
Steady green
Blinking green
OFF
Steady green
OFF
Blinking green
Blinking green
Steady green
Steady green
DESCRIPTION
No power is supplied to the device
Connected to an AC power supply
No Ethernet connection
Connected to an Ethernet port
Transmitting/Receiving data
Wireless interface disabled
Wireless Interface enabled
WPS disabled/completed
authentication
WPS authentication in-progress
Establishing or No DSL signal
DSL signal is established
VOIP enabled
