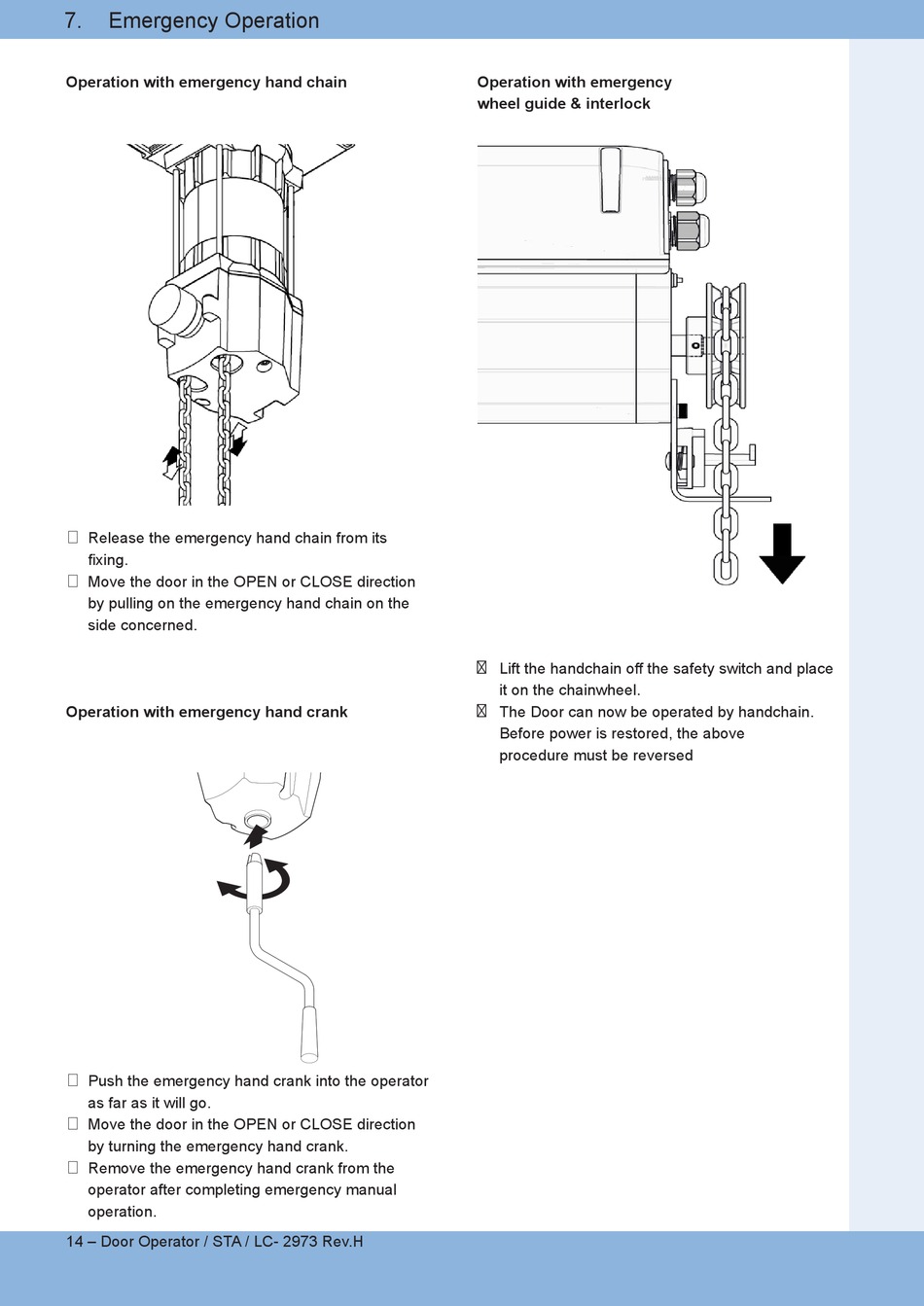

7.
Emergency Operation
Operation with emergency hand chain
Release the emergency hand chain from its
fixing.
Move the door in the OPEN or CLOSE direction
by pulling on the emergency hand chain on the
side concerned.
Operation with emergency hand crank
Push the emergency hand crank into the operator
as far as it will go.
Move the door in the OPEN or CLOSE direction
by turning the emergency hand crank.
Remove the emergency hand crank from the
operator after completing emergency manual
operation.
14 – Door Operator / STA / LC- 2973 Rev.H
Operation with emergency
wheel guide & interlock
☞
Lift the handchain off the safety switch and place
it on the chainwheel.
☞
The Door can now be operated by handchain.
Before power is restored, the above
procedure must be reversed
