Star Micronics Automatic Sheet Feeder 10DK User Manual page 8

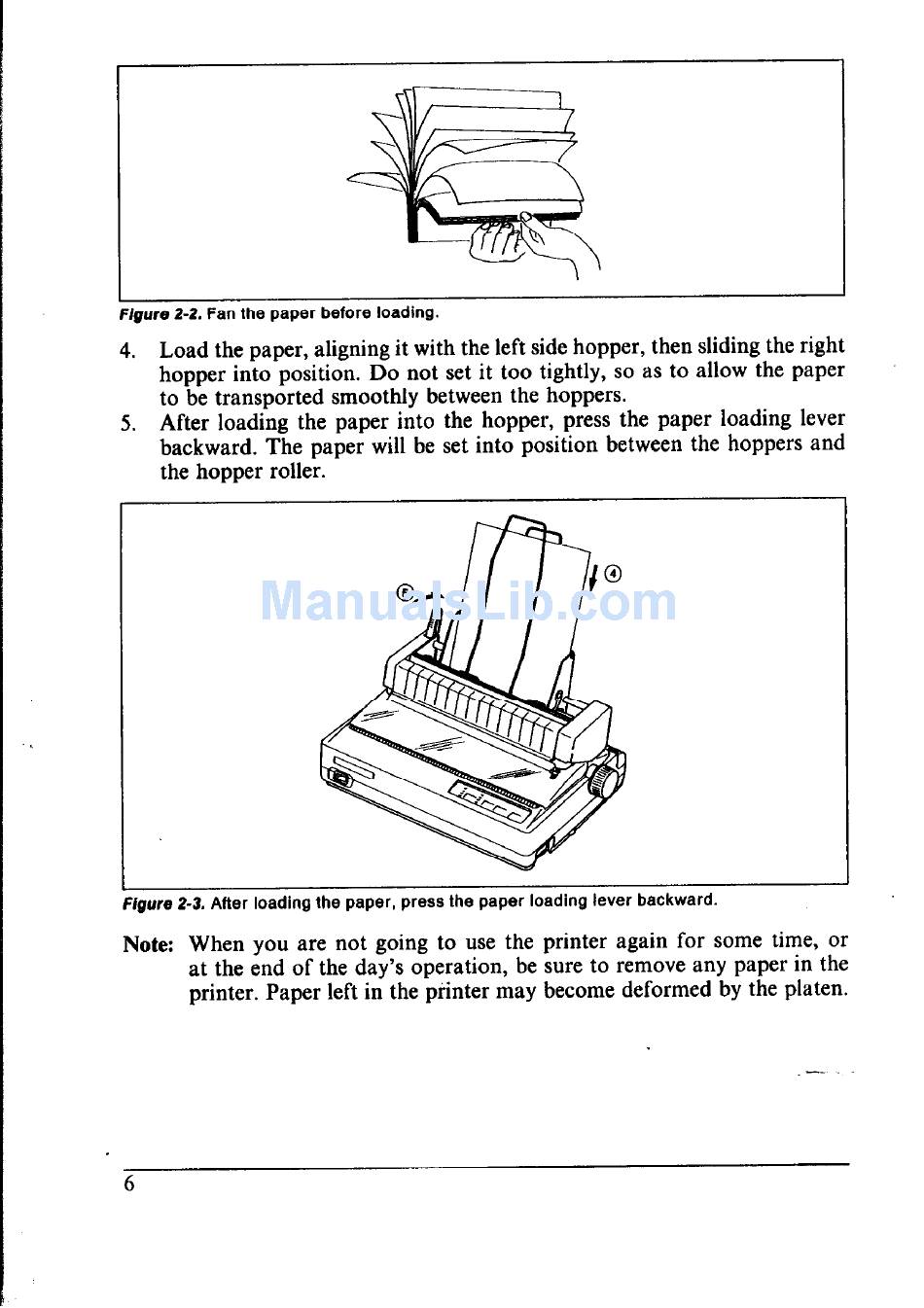

Figure 2-2. Fan the paper before loading.
4. Load the paper, aligning it with the left side hopper, then sliding the right
hopper into position. Do not set it too tightly, so as to allow the paper
to be transported smoothly between the hoppers.
5. After loading the paper into the hopper, press the paper loading lever
backward. The paper will be set into position between the hoppers and
the hopper roller.
Figure 2-3. After loading the paper, press the paper loading lever backward.
Note: When you are not going to use the printer again for some time, or
at the end of the day's operation, be sure to remove any paper in the
printer. Paper left in the printer may become deformed by the platen.
-
6
