80871110 IFBDSP2000
The interface board is an option for the printer SP2000 series.
When replacing the interface board, please use the following procedure.
IFBD - VD02 ............... RS - 232C
IFBD - VC02 ............... Parallel
Replacement
1. Make sure that the power cord is unplugged.
2. Remove the 2 screws.
3. Remove the interface board unit in the direction of the arrow.
4. When the new board is serial interface board unit, change the setting
of the DIP Switches if necessay, referring to the user's manual of the
printer.
5. Slide the new interface board in until it is firmly seated.
Note:
Insert the interface board so that it connects with the
connector.
6. Secure the interface board using the two screws.
Screw

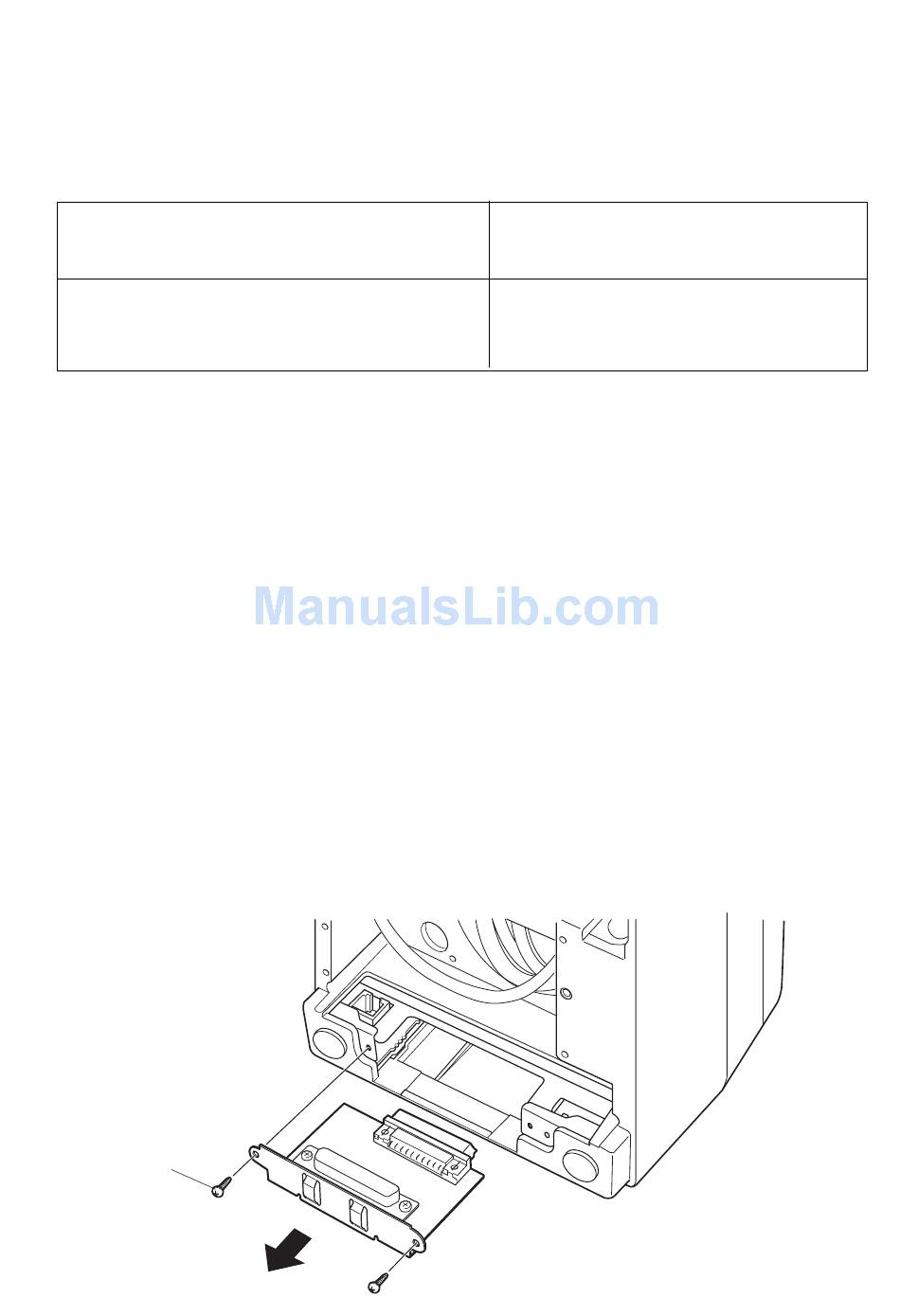

Replacing the interface board
Interface Board
Applicable printer
SP2000 Series
