*30500*
30500
Mortise: Standard, TRD, BRD
Surface Mount: SM, and TJ
GF3000 Standard
Contents
Warnings and Cautions .............................................................. 2
Tools Needed.............................................................................. 2
Certifications ............................................................................... 2
Operation .................................................................................... 2
Specifications ............................................................................. 2
Installation .................................................................................. 3
1
Establish centerlines. ................................................... 3
2
Prepare the frame. (Standard and TRD) ...................... 4
Prepare the frame. (TJ and SM) .................................. 4
Prepare the floor. (BRD)............................................... 5
3
Prepare the door. ......................................................... 6
4
Install the lock. ............................................................. 8

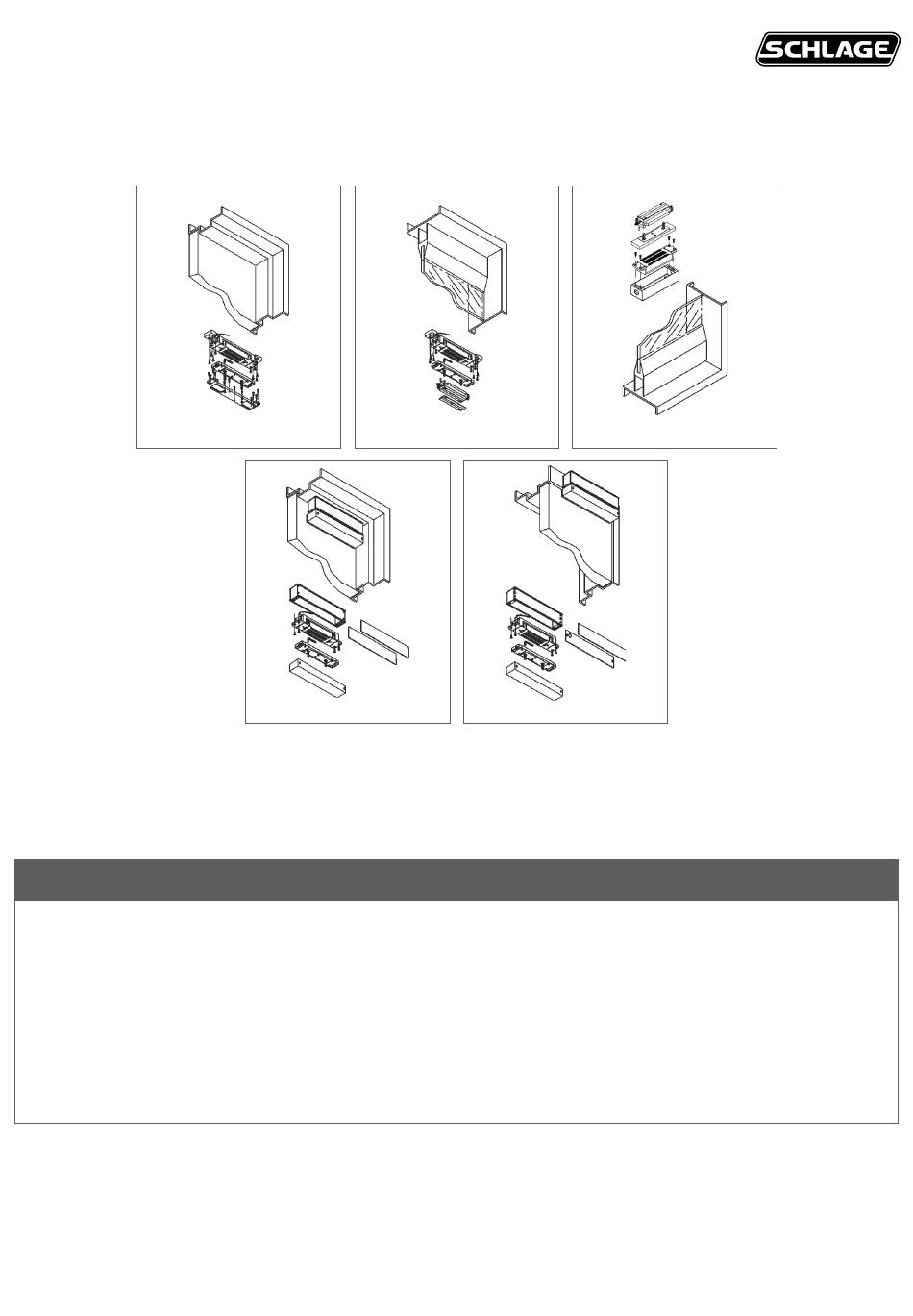

GF3000 Gravity Force
Shear Locks
GF3000TRD
GF3000SM
GF3000BRD
GF3000TJ
Auto Relock Time Delay ............................................................. 9
Wiring Diagrams ...................................................................... 10
Door Status Monitor (DSM) (BRD) ........................................... 11
Air Gap Adjustment................................................................... 11
Optional Monitoring Outputs ..................................................... 12
Installation instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schlage GF3000 Gravity Force Series
Summary of Contents for Schlage GF3000 Gravity Force Series
-
Page 1: Table Of Contents
GF3000 Gravity Force *30500* Shear Locks 30500 Mortise: Standard, TRD, BRD Installation instructions Surface Mount: SM, and TJ GF3000 Standard GF3000TRD GF3000BRD GF3000SM GF3000TJ Contents Warnings and Cautions .............. 2 Auto Relock Time Delay ............. 9 Tools Needed................2 Wiring Diagrams ..............10 Certifications ................ -
Page 2: Warnings And Cautions
Warnings and Cautions Specifications Electrical WARNING Input Voltage Filtered, regulated 12 or 24 VDC (auto Warnings indicate potentially hazardous conditions, which if not voltage selection) avoided or corrected, may cause death or serious injury. Input Current 0.9 Amps at 12VDC, 0.45 Amps at 24VDC Adjustable Time Adjustable from 2 to 30 seconds CAUTION Delay (ATD) Factory default: expect approx. 3-5 Cautions indicate potentially hazardous conditions, which if not seconds. avoided or corrected, may cause minor or moderate injury. Automatic Relock Integral magnetic reed switch Cautions may also warn against unsafe practices. Switch (ARS) Optional Monitoring Outputs (Standard, TRD, SM, and TJ) NOTICE Contact rating - 0.1 Amps maximum at Notices indicate a condition that may cause equipment or property 28VDC damage only. Contact rating - 0.2 Amps maximum at 30VDC Optional Monitoring Outputs (BRD) Tools Needed Contact rating -0.2 Amps maximum @ 30VDC •... -
Page 3: Installation
Installation Establish centerlines. 1a Determine the mounting position. To achieve maximum resistance to forced entry, position unit closest to the latch side of door. L In some applications, the door and frame may require reinforcement. 1b Mark centerlines on door and frame. Door L For proper operation, centerlines on door and jamb must be precisely aligned. Location of lock Standard in floor/threshold Floor/ Threshold Bottom of door... -
Page 4: Prepare The Frame. (Standard And Trd)
Prepare the frame. (Standard and TRD) 2a Prepare the frame as shown for your frame type. Hollow Metal or Aluminum Reversible mounting tab L See included template. Wood L See included template. 2b For metal frames ONLY, secure two mounting tabs to ends of cutout for lock in frame. Install mounting tabs with correct side up as shown: 16 gauge hollow metal frames Z\," thick aluminum frames Prepare the frame. (TJ and SM) TJ (inswing) SM (outswing) Use the included template to mark holes. -
Page 5: Prepare The Floor. (Brd)
Prepare the floor. (BRD) 2a Create a pocket for the threshold box. End view Side view 2.375" threshold plate min. 7.5" min. trench with conduit pocket for .5" min. threshold box trench for conduit • 2.375" wide x 7.5" long • Box centerline must be the same as door centerline. • centered directly below door’s bottom rail • The trench for the conduit should be at least 1/2" wide and • furthest away from hinges deep enough so that the conduit can be easily inserted into • Installed magnet must not protrude above installed the 7/8" hole in end of box. Direction and length of the threshold. -
Page 6: Prepare The Door
Prepare the door. Use these drawings as a reference. Use the included template to mark holes. Channel height Reference drawing Standard Hollow Metal or flush to 1/4" Aluminum 1/4" to 1" 1" to 1 3/4" 1 3/4" to 2 1/2" Wood Hollow Metal or 1 3/4" Aluminum door where the top adjustment is Adjustment not accessible. screw Glass Hollow metal 1 3/4" min Glass with bottom rail (BRD) - Page 7 Model Door type Reference drawings TJ, SM Hollow Metal Hole Sizes and Parts sex bolt 1/2" hole 1/4" hole mounting spacer armature 1/4-20 x 2 door interior 1/4-20 threaded hole (thru reinforced side Reinforced of door only) Metal WARNING The included sex nut is for 1 C\v” (45 mm) doors ONLY. For other door thicknesses, please contact customer service, 1-877-671-7011. Using the incorrect sex nut for your door thickness will lead to improper function and possible injury. Armature door interior bolt must be tightened to at least 120 in.-lbs. for Wood all doors except composite wood doors. For composite wood doors, tighten only to tight and...
-
Page 8: Install The Lock
Install the lock. Mortise Mount: Standard, TRD 4a Install armature assembly into door. See "Prepare the door." on page 6 to determine the installation method. 4b Install magnet into frame. See "Prepare the frame. (Standard and TRD)" on page 4 to determine the installation method. 4c Adjust auto-relock time delay. -
Page 9: Auto Relock Time Delay
Surface Mount: TJ, SM Auto Relock Time Delay 4a Install armature mounting spacer. Secure mounting Standard, TRD, TJ, SM spacer and 1. Refer to the wiring diagram (page 10) and note location of armature housing ATD arrow. onto door. 2. With door open, apply power. 3. Remove 5/64" hex head screw to allow access to recessed momentary pushbutton switch. 4. Using the hex wrench provided, depress and release the recessed switch one time for each second of delay required (max. =30 seconds, min.=2 seconds). Example: To set ATD to 5 seconds, depress the recessed switch 5 times. L NOTE: If a mistake is made, wait 10 seconds, then repeat Step 4. -
Page 10: Wiring Diagrams
Wiring Diagrams Standard, TRD, TJ, SM Standard features Operating Voltage Filtered and regulated 12 or 24 volts DC. Automatic voltage selection circuitry is standard. Automatic Relock Switch (ARS) ARS requires the door to be in the closed position before the magnet can be energized. Adjustable Time Delay (ATD) ATD provides a time delay to relock, adjustable from 2 to 30 seconds. Factory default is 3 seconds. White (COM) Door status monitor Green (N.O.) (optional) Red (N.C.) Adjustable time delay Red (+) POWER Black (-) Filtered Control 12 or 24VDC input module Brown (COM) Magnetic bond sensor DO NOT cut yellow wire. -
Page 11: Door Status Monitor (Dsm) (Brd)
Door Status Monitor (DSM) (BRD) • Hole for switch: 1" diameter in DOOR FRAME 1/2" gap max frame. • Hole for magnet: 1 5/16" 1 5/16" • Wood or Aluminum doors: 3/8" diameter • Hollow metal doors: 1" diameter for wood or 7/16" 1" dia. aluminum doors • Installation of magnet and switch must be concentric (common 3/8" centerline). Magnet Switch black (COM) • Switch insertion: snap-in fit. red (N.C.) •... -
Page 12: Optional Monitoring Outputs
Optional Monitoring Outputs Door Status Monitor (DSM) N.C. N.C. The optional DSM provides a dry set of contacts for monitoring “door open" or “door closed" conditions. N.O. N.O. Door closed Door open Magnetic Bond Sensor (MBS) N.C. N.C. The optional MBS provides a dry set of contacts for monitoring “door locked" or “door unlocked" conditions. The MBS N.O. N.O. measures the magnetic holding force between the armature and the Good magnetic bond Poor magnetic bond magnetic coil. Poor magnetic bond is the result of low voltage, foreign material between the surfaces of the magnetic coil and armature, or improper alignment of magnet and armature. Customer Service © Allegion 2018 Printed in China 30500 Rev. 11/18-g 1-877-671-7011... - Page 13 16.500 8.300 FRONT FRONT 11.700 11.700 BEgINNINg SHEET FOLDED SHEET Additional Notes: Revision History Revision Description: g > Revised artwork 1. Fold booklet style 060183 061063 021384 062530 065782 077349 Material Edited By Approved By EC Number Release Date White Paper M.
