P516-129

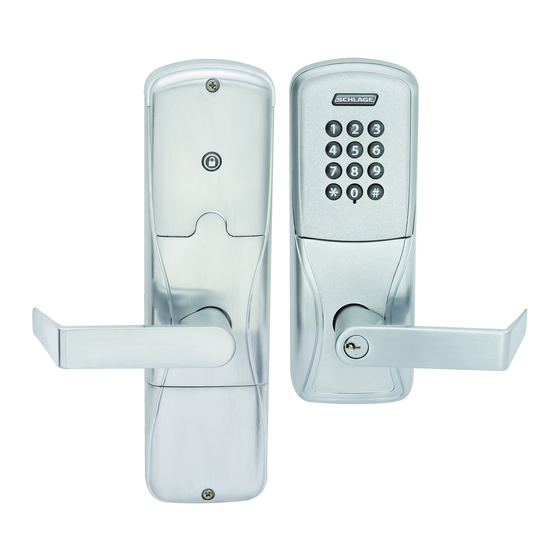

AD-200
OFFLINE LOCK USER GUIDE
INSTRUCTIONS FOR AD-SERIES OFFLINE LOCKS
Para el idioma español, navegue hacia www.schlage.com/support.
Pour la portion française, veuillez consulter le site www.schlage.com/support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AD-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Schlage AD-200

Summary of Contents for Schlage AD-200

  • Page 1 P516-129 AD-200 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR AD-SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.

  • Page 2: Table Of Contents

    AD-200 Offl ine Lock User Guide CONTENTS Overview ............................3 Getting Started ..........................4 Schlage Utility Software (SUS) ...................... 4 Construction Access Mode ......................5 Create the Master Construction Credential - Locks with Card Readers ........5 Add Construction Access Mode User Credentials - Locks with Card Readers ......5 Cancel Construction Access Mode ...................

  • Page 3: Overview

    • Inside lever always allows egress. • The lock maintains an audit trail of events. • Confi gured using the Schlage Utility Software (SUS). See Schlage Utility Software (SUS) on page 4 and consult the SUS User Guide for more information.

  • Page 4: Getting Started

    Save this user guide for future reference. SCHLAGE UTILITY SOFTWARE (SUS) The Schlage Utility Software is used for programming and setup only. The (SUS) is used to confi gure locks. This includes transferring data fi les between the access control software and locks. For information about the SUS, refer to the SUS User Guide.

  • Page 5: Construction Access Mode

    Add Construction Access Mode User Credentials - Locks with Card Readers 1. Present the Master Construction Credential to the lock. The Schlage button will light. 2. Present the user credential to be added within twenty (20) seconds. The user credential will be added to the lock database.

  • Page 6: Manual Lock Programming

    AD-200 Offl ine Lock User Guide MANUAL LOCK PROGRAMMING TIPS Left LED Right LED The Schlage button has two different LEDs, one on the left and one on the right. Press the Schlage button to activate the keypad backlight. All locks have a default programming code of 97531 and “...
  • Page 7 Schlage button, three left and nine right at the same time. An incorrect entry is indicated on the Schlage button by a solid red left LED, and a blinking green right LED. To interpret blink patterns, refer to Error Codes on page 9.
  • Page 8 AD-200 Offl ine Lock User Guide Wait For Function Press/Present Confi rmation Programming Card [Programming Code] Wait for Add Freeze to stop flashing Credential New [PIN] between each New Card (for PIN only) step. add another credential to finish Programming Card...

  • Page 9: Error Codes

    AD-200 Offl ine Lock User Guide ERROR CODES All error codes are indicated on the Schlage button by a solid red left LED, and a blinking green right LED. The number of green blinks indicates the error code. Number of...

  • Page 10: Test Lock Operation

    3. For locks with a card reader, present a credential to the reader. The lock will beep and the left side of the Schlage button will blink red one time. When the lock is in Factory Default mode, no credentials are accepted.

  • Page 11: Normal Lock Operation

    4. Press and release the inside push button (IPB) three (3) times within 10 seconds. One beep will sound and one red blink will occur with each press. 5. The Schlage button and IPB will both light green for one second and a one-second beep will be heard. This indicates that the lock has been reset.

  • Page 12: Batteries

    AD-200 Offl ine Lock User Guide BATTERIES To Install or Replace Batteries Replacement of batteries does not affect any programmed data. Battery voltage can be checked with the SUS. 1. Remove the battery cover. 2. Remove the battery bracket. Do not allow the battery pack to hang from the wires.

  • Page 13: External Power Supply

    The AD-200 may be connected to external power using a UL294 listed Power Supply for UL installations, and a power supply that complies with CAN/UL-S318 or CAN/ULC-S319 for cUL installations. The power supply must be capable of sourcing at least 250 mA @ 12 or 24 VDC (Schlage PS902, PS904, PS906).

  • Page 14: Led Reference

    AD-200 Offl ine Lock User Guide LED REFERENCE Most LED and beep indicators are confi gured using the SUS. See the SUS User Guide for more information. Schlage Button Condition Lights Access denied 2 red blinks Access denied, user outside time zone...

  • Page 15: Troubleshooting

    The batteries may be the correct polarity. inserted with incorrect Refer to the installation instructions that polarity. came with the AD-200 lock, or this user guide for details on the above mentioned procedures. The reader is not The through hole ribbon Check that the through hole ribbon cable working.

  • Page 16: Fcc Statements

    AD-200 Offl ine Lock User Guide FCC STATEMENTS Ingersoll Rand Agency Statements Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
