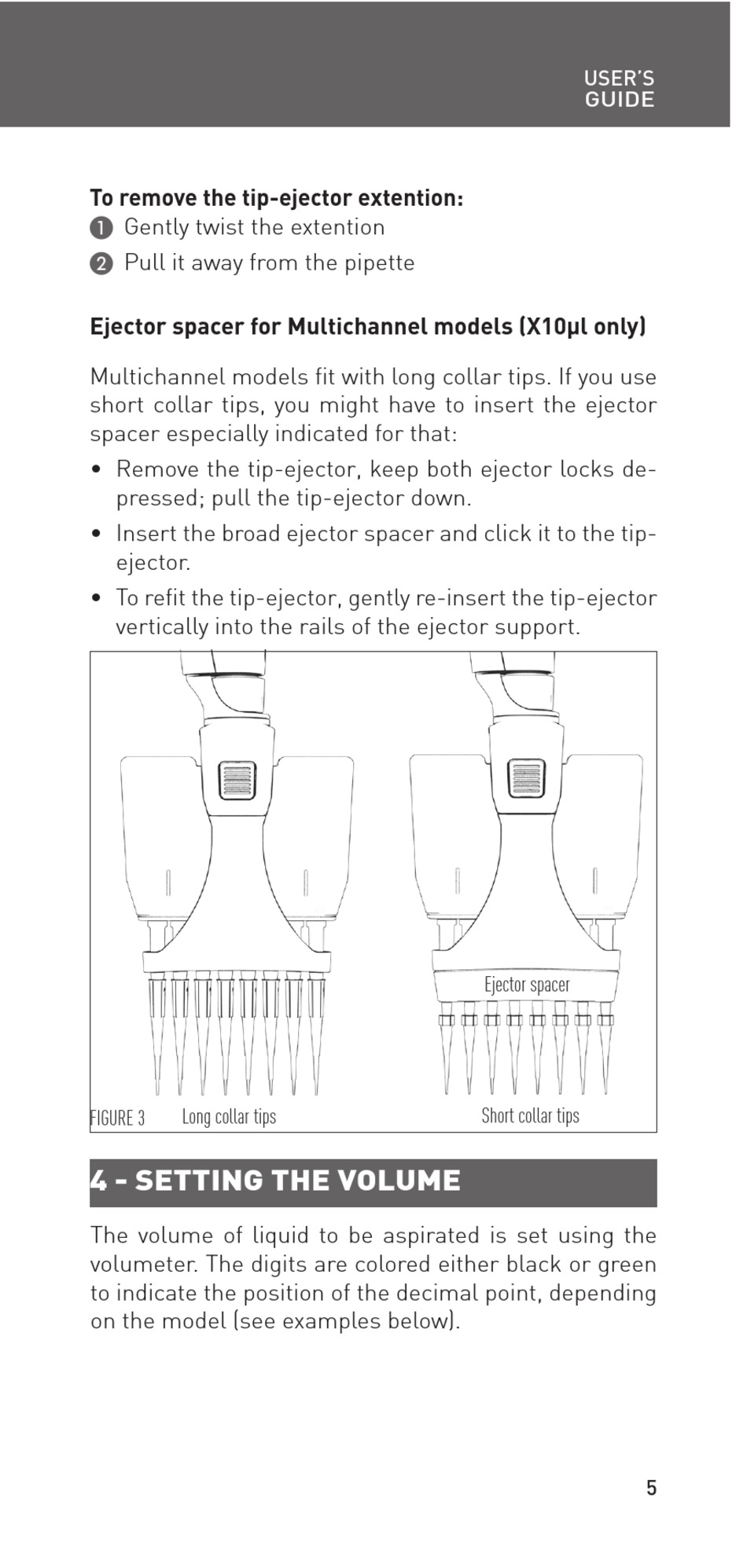

4- Setting The Volume - DKSH LabPRO 2ml User Manual

To remove the tip-ejector extention:
Gently twist the extention

Pull it away from the pipette

Ejector spacer for Multichannel models (X10µl only)
Multichannel models fit with long collar tips. If you use
short collar tips, you might have to insert the ejector
spacer especially indicated for that:
• Remove the tip-ejector, keep both ejector locks de-
pressed; pull the tip-ejector down.
• Insert the broad ejector spacer and click it to the tip-
ejector.
• To refit the tip-ejector, gently re-insert the tip-ejector
vertically into the rails of the ejector support.
Long collar tips
FIGURE 3
4 - SETTING THE VOLUME
The volume of liquid to be aspirated is set using the
volumeter. The digits are colored either black or green
to indicate the position of the decimal point, depending
on the model (see examples below).
USER'S
USER'S
GUIDE
GUIDE
Ejector spacer
Short collar tips
