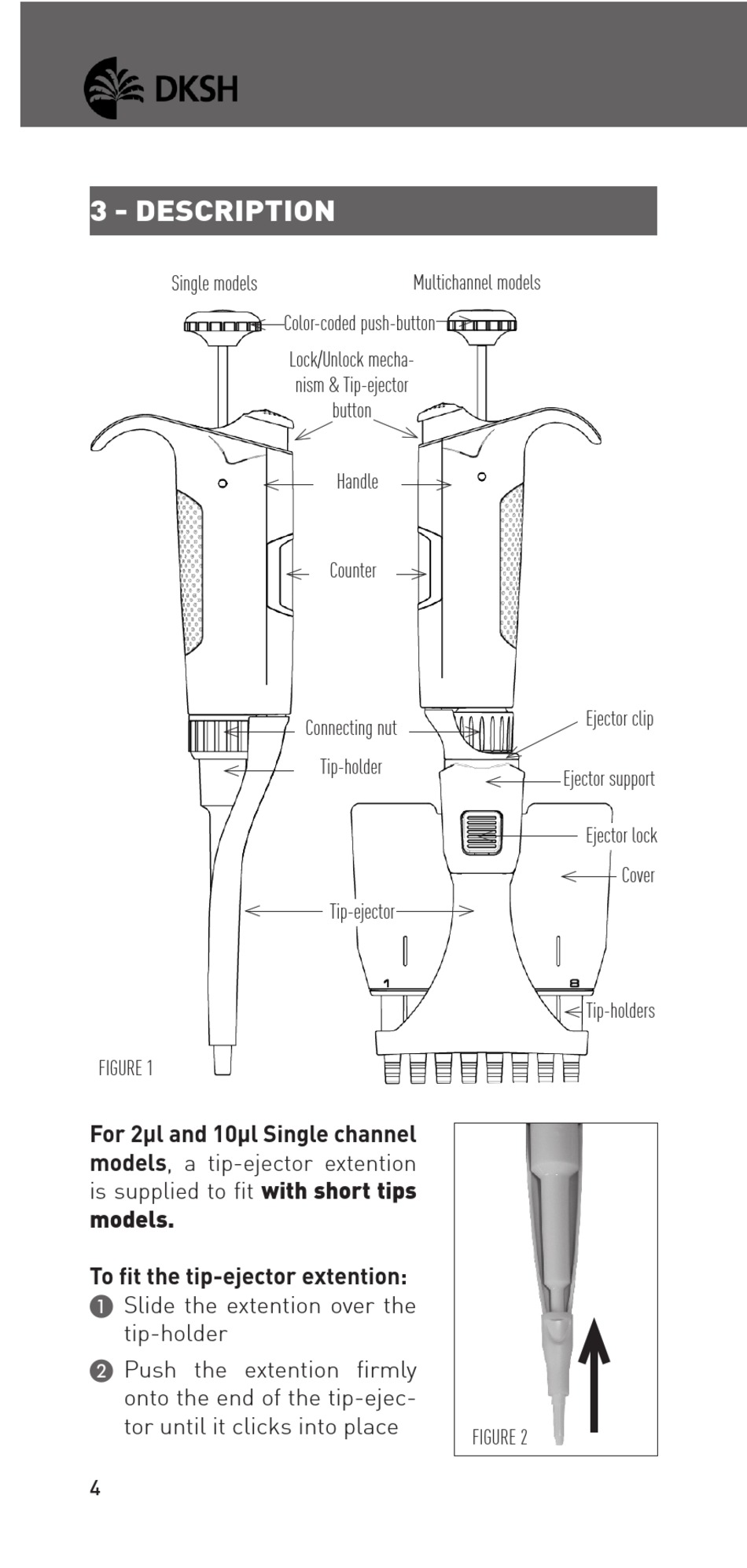

3 - DESCRIPTION
Single models
FIGURE 1
For 2µl and 10µl Single channel
models, a tip-ejector extention
is supplied to fit with short tips
models.
To fit the tip-ejector extention:
Slide the extention over the

tip-holder
Push the extention firmly

onto the end of the tip-ejec-
tor until it clicks into place
4
Multichannel models
Color-coded push-button
Lock/Unlock mecha-
nism & Tip-ejector
button
Handle
Counter
Connecting nut
Tip-holder
Tip-ejector
Ejector clip
Ejector support
Ejector lock
Tip-holders
FIGURE 2
Cover
