Cosmo COS-DIS6502 Use & Care Manual

Hide thumbs Also See for COS-DIS6502:
Table of Contents

Advertisement

Quick Links

[
]
1
PANTONE BLACK C
2
3
A5,
A5
4
,
,
6710022992
COS-DIS6502(6502)
Cosmo
D D
80
· Ö Ç ø
0
1
2 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-DIS6502 and is the answer not in the manual?

Questions and answers

Related Manuals for Cosmo COS-DIS6502

Summary of Contents for Cosmo COS-DIS6502

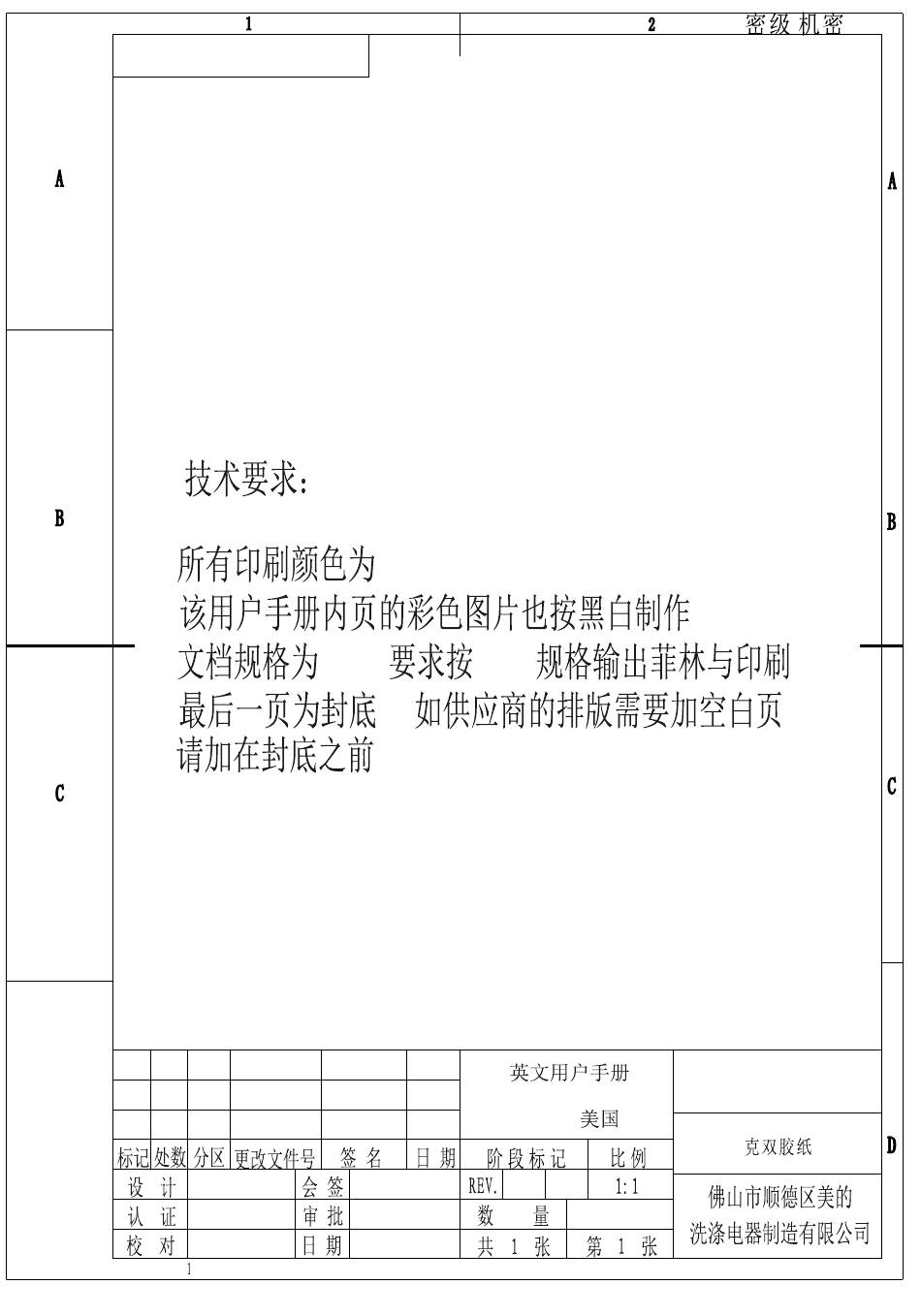

  • Page 1 PANTONE BLACK C 6710022992 COS-DIS6502(6502) Cosmo · Ö Ç ø...
  • Page 2 USE & CARE MANUAL DISHWASHER MODEL : COS-DIS6502...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFE GUARDS..............1 SPECIFICATIONS..................2 FEATURES OF YOUR NEW DISHWASHER...........3 OPERATING THE CONTROL PANEL.........5 INSTALLATION REQUIREMENTS............7 ENCLOSURE REQUIREMENTS..........8 DRAIN REQUIREMENTS............9 ELECTRICAL REQUIREMENTS..........10 INSTALLATION INSTRUCTIONS............12 PARTS LIST....................20 EXPLODED VIEW...................23...

  • Page 4: Important Safe Guards

    Please install your dishwasher properly and follow the installation guide. - Water supply temperature should be 120℉ or 149℉. - Dispose of the discarded appliance and packing material properly. - The dishwasher must be grounded, or it can result in a risk of electric shock. - If there is any damage to the dishwasher, please contact to your retailer.

  • Page 5: Specifications

    SPECIFICATIONS Capacity: 14 place settings Dimensions (W x D x H): 23.9 x 25.6 x 33.7 in. Weight: 94 lbs Power Supply: 120 volts, 60 Hz Rated Power Usage: Wash Motor: 50W, Heater: 840W Water Feed Pressure: 20 ~ 120 psi 1.

  • Page 6: Features Of Your New Dishwasher

    FEATURES OF YOUR NEW DISHWASHER Filter System Adjustable Upper Rack Your dishwasher has a multiple Filter The Upper Rack can be raised or lowered System. In the Filter System, there are to accommodate loading taller dishes in four filter-meshes. It can separate soiled either rack.
  • Page 7 How Your Dishwasher Cleans Getting Started Your dishwasher cleans by spraying a 1. Load dishwasher. mixture of hot water and detergent through 2. Add detergent. the spray arms against soiled surfaces. 3. Add rinse aid, if needed. 4. Close door latch. The dishwasher fills with water covering the 5.

  • Page 8: Operating The Control Panel

    11. HEATING DRY 12. SANITIZED 13. HI TEMP WASH STEAM WASH Page 5...
  • Page 9 Cycle Progress Indicator ight Wash Clean Page 6...

  • Page 10: Installation Requirements

    INSTALLATION REQUIREMENTS Page 7...

  • Page 11: Enclosure Requirements

    Enclosure Requirements • The cabinet opening must be at least 24 in. wide. • The maximum height of the opening is 35 in. • The dishwasher must be installed so that the drain hose is no more than 10 feet in length, for proper drainage.

  • Page 12: Drain Requirements

    Drain Requirements • Follow all local codes and ordinances. • Do not exceed 10 ft. of drain hose. • Do not connect the drain lines from other devices to the dishwasher drain hose. • The dishwasher must be connected to a waste line with an air gap (not provided) or a 32 in.

  • Page 13: Electrical Requirements

    Electrical Requirements This appliance must be supplied with 120V, 60 Hz., and connected to its own, properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. - Wiring must be two wire with ground. - If the electrical supply does not meet the above requirements, call a licensed electrician before proceeding.
  • Page 14 Cable direct connections may pass through the same hole as the drain hose and hot water line, but power cords with plugs must pass through a separate hole. Preparing the Hot Water Line - The water connection is on the left side of dishwasher. - The hot water line may enter the opening from either side, the rear, or the floor within the shaded area.

  • Page 15: Installation Instructions

    IINSTALLATION INSTRUCTIONS Step 2: Adjust the leveling legs Step 1: Check the door balance 1. Move the dishwasher close to the 1. Hold the top of the dishwasher firmly. installation location and lay it on its 2. Open the door slowly, then release it. If back.
  • Page 16 Step 4: Install the power cord Skip this step if the dishwasher will be direct wired. 1. Remove the junction box cover on the right front of the dishwasher. 2. Connect the incoming white (or ribbed) wire to the dishwasher’s white wire, the black (or smooth) wire to the dishwasher’s black wire, and the ground wire to the dishwasher’s green wire.
  • Page 17 Step 6: Install the drain hose Step 7: Inserting the drain hose 1. Turn the dishwasher upright. through the cabinet 2. Slide a screw-type hose clamp onto the Insert the drain hose into the hole in drain hose. the cabinet wall. If a power cord is 3.
  • Page 18 Step 9: Position the dishwasher under the countertop 1. Make sure that the wires are secure under the dishwasher and not pinched or in contact with door springs or other dishwasher components. TIP: Check tub insulation blanket, if equipped. It should be positioned so it is not bunched up or interfering with door springs.
  • Page 19 Step 11: Securing the dishwasher to the countertop - For countertops made of wood or materials that won’t be damaged by drilling, use Method 1. - For countertops made of granite, marble, or other materials that could be damaged by drilling, use Method 2. - If the gap between the control panel and the cabinet is less than 0.4 in.
  • Page 20 Step 12: Connecting the water supply line 1. Slide the compression nut, then the ferrule over the end of the water supply line. 2. Insert the water supply line into the 90° elbow. 3. Slide the ferrule against the 90° elbow and secure it with the compression nut. IMPORTANT: Make sure that the door spring does not rub or contact the water supply line or drain hose.
  • Page 21 Step 14: Connecting the electrical power Turn off the electricity to the dishwasher’s electrical circuit. Skip this step if your dishwasher is equipped with a power cord. Make sure that the electrical power is turned off at the source. 1. Remove the junction box cover from the power supply junction box on the wall. 2.
  • Page 22 Step 15: Performing a pre-test check - Make sure that power is turned OFF. - Open the door and remove all foam and paper packaging. - Check the door opening and closing. If the door does not open and close freely, or tends to fall, check the spring adjustments.

  • Page 23: Parts List

    PARTS LIST Page 20...
  • Page 24 Page 21...
  • Page 25 Page 22...

  • Page 26: Exploded View

    EXPLODED VIEW Page 23...
  • Page 27 Page 24...
  • Page 28 Page 25...
  • Page 29 Page 26...
  • Page 30 Page 27...
  • Page 31 Page 28...
  • Page 32 Page 29...
  • Page 33 Page 30...
  • Page 34 WARRANTY AND SERVICE For full warranty details on this product please visit: http://www.cosmoappliances.com/warranty Warranty Support: 1-855-877-4085 Product Information: 1-888-784-3108 Page 31...
