Customer Guide

DYMO LabelWriter 450 Turbo Printer Installation

PASS

This is the process for installing a DYMO LabelWriter 450 Turbo printer on a PASS workstation

running PASS Ware or PACMED Server Plus. The process is the same for both applications.

Refer to the DYMO Quick Start Guide that came with your printer for instructions on loading

labels.

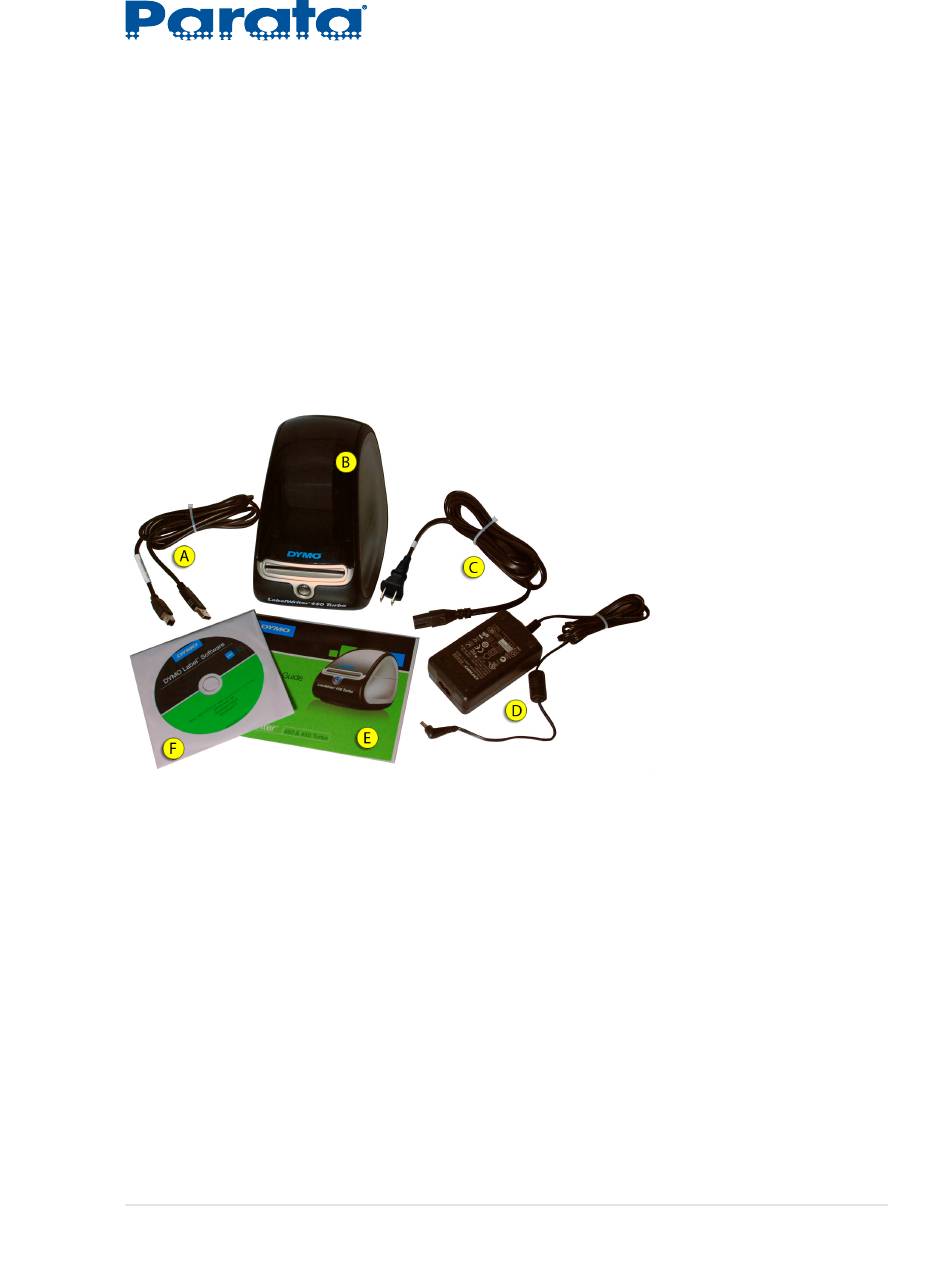

Open the DYMO printer box and remove the printer, USB cable, power cord, power adapter, CD,

and Quick Start Guide.

A USB cable

B DYMO printer

C Power cord

Connect the power and USB cables to the DYMO printer:

2.1

Connect the power cord to the power adapter.

2.2

Connect the power adapter cord to the power connection on the bottom of the printer,

then plug the power cord into an AC outlet.

2.3

Connect the square end of the USB cable into the USB port on the bottom of the printer.

120-0493 Rev 01

D Power adapter

E Quick Start Guide

F CD

page 1 of 4

Parata Technical Assistance Center

1-888-PARATA1 (727-2821)

Page 1 DYMO LabelWriter 450 Turbo Printer Installation PASS This is the process for installing a DYMO LabelWriter 450 Turbo printer on a PASS workstation running PASS Ware or PACMED Server Plus. The process is the same for both applications. Refer to the DYMO Quick Start Guide that came with your printer for instructions on loading labels.
Page 2 An Administrator account is not required. Close all open programs. Insert the DYMO LabelWriter CD into the workstation DVD drive. In the AutoPlay window, select RunDLS8Setup.exe. The Select Language dialog box will display. Click the arrow and select your language from the list.
Page 3 Customer Guide DYMO LabelWriter 450 Turbo Printer Installation Click Next on the Welcome screen. On the License Agreement screen, click I Agree. On the Installation Type screen, select Express installation and click Next. page 3 of 4 ©2014 Parata Systems, LLC...
Page 4 A "Your new hardware is installed and ready to use" message will display at the bottom of the screen when the setup is complete. Refer to the DYMO Quick Start Guide for instructions on loading labels. page 4 of 4 ©2014 Parata Systems, LLC...
