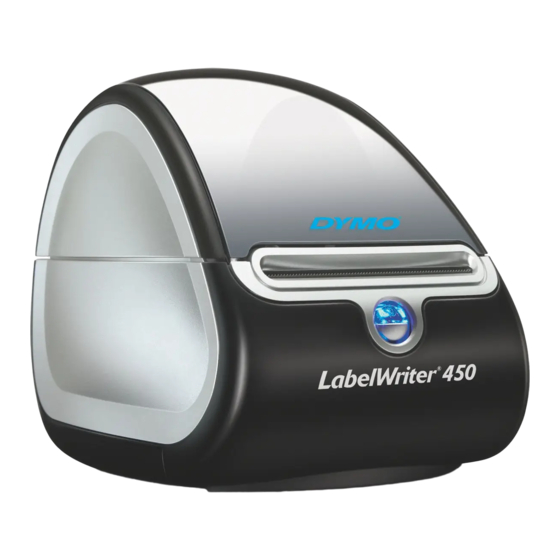

Dymo LabelWriter 450 How-To Manual

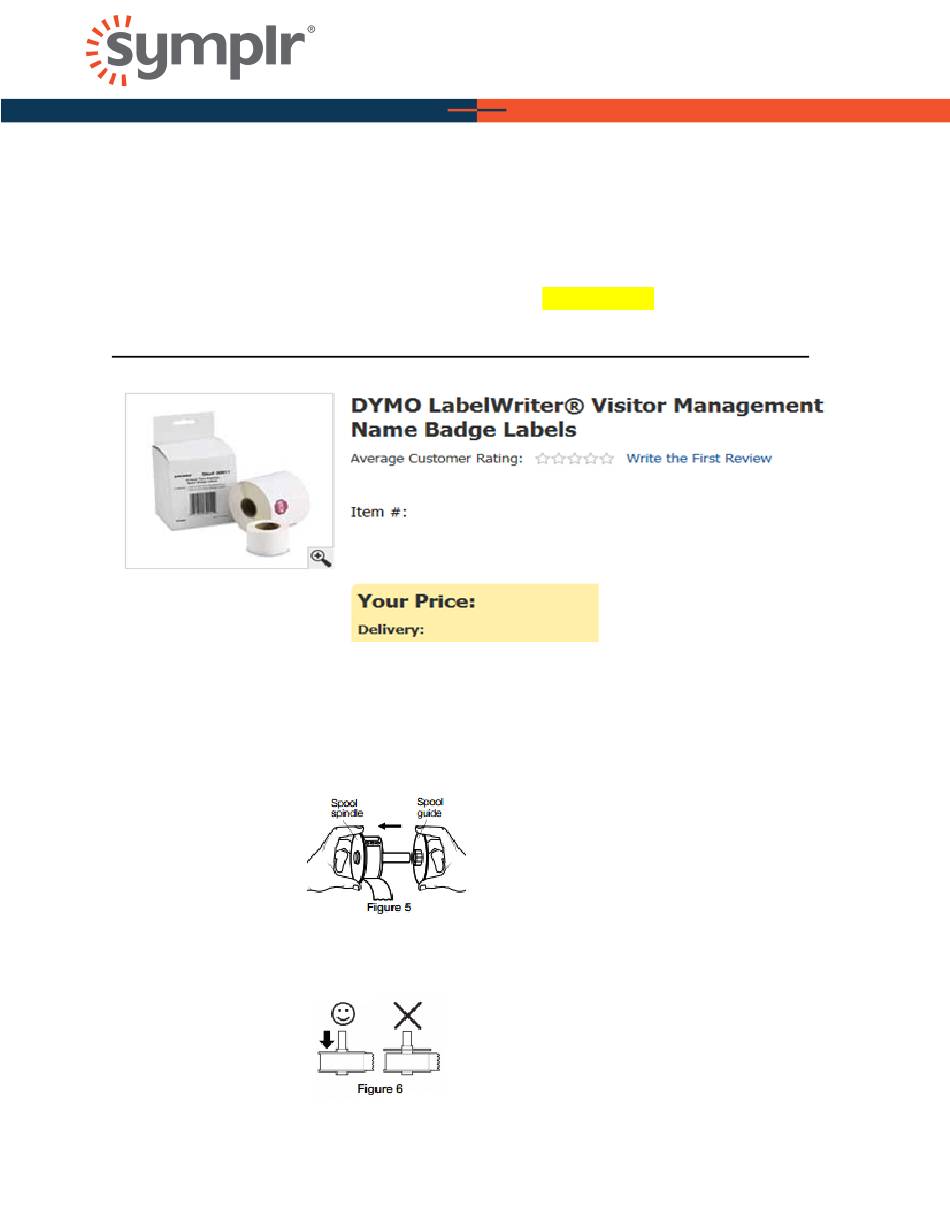

How to Order and Insert a Roll of Labels in the DYMO LabelWriter
The DYMO LabelWriter can accommodate multiple sizes of labels; the symplr® System prints
the Vendor / Guest day pass on the Shipping Label size and the roll contains 220 labels. The
labels can be ordered under a contracted price through ____________.
Item-DYMO® Label Writer® 30911 Time Expiring Adhesive Name Badge Labels
1. Remove the label spool from inside the top cover and pull the spool guide from the spindle.
2. Hold the spool spindle in your left hand and place the label roll on the spindle so that the labels feed
from underneath and the left edge of the label roll is firmly against the side of the spool. See Figure
5 below.
3. Slide the spool guide onto the right side of the spool and press the guide tightly against the side of
the label roll, leaving no gap between the roll and the spool. See Figure 6 below.
Source: DYMO Quick Start Guide © 2010 Sanford, L.P.
(models 450 & 450 Turbo)
