Summary of Contents for Stanton Complete DJ System DJLab 1.1

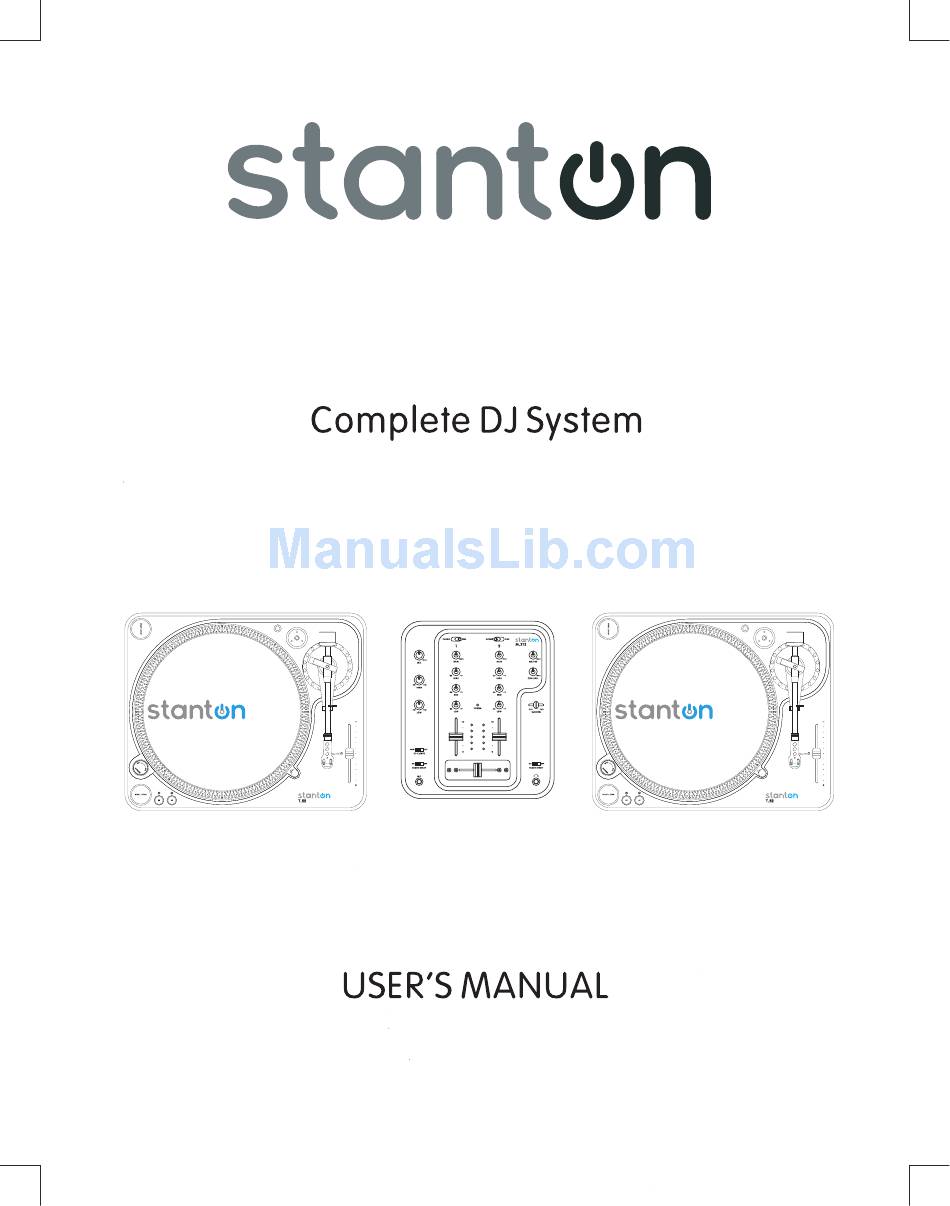

- Page 1 DJLab 1.1...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS Read Instructions – All the safety and operating instructions should be read before this product is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. -
Page 3: Main Features
M.212 INTRODUCTION Thank you for purchasing Stanton’s newest innovation in professional tabletop mixer. The M.212 mixer was designed to bring style and reliability to the mobile or club DJ at an affordable cost. M.212 MAIN FEATURES 2 bend EQ w/ input GAIN control per channel. -
Page 4: Control Overview
M.212 CONTROL OVERVIEW 1. Channel Gain - Adjusts the pre-fader volume for cleaner sound. Reduce the channel gain if you notice the level indicators flashing red. 2. Mic Input Gain - Adjusts microphone input level. 3. Mic EQ - The mic channel includes a two-band EQ with a range of +10dB to -10dB. -
Page 5: Rear Panel
M.212 CONTROL OVERVIEW REAR PANEL 16. Power Switch - Turns unit off and on. 17. Power Connector - Plug in the included power supply here. 18. Fader Start Control Jacks - Connect these jacks to the Fader input jacks of the CD player using the 3.5mm stereo mini cord. 19. -
Page 6: Quick Setup Diagram
M.212 QUICK SETUP DIAGRAM Review this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. Plug your mixer into AC power. -
Page 7: Specifications
M.212 SPECIFICATIONS Input / output impedance & sensitivity: (Master 0dBV output, load=100Kohm, Max. gain, EQ flat) Line 10K ohm /-14dBV (200mV) +/-2dB Phono 47K ohm /-50dBV (3.16mV) +/-2dB 2.2K ohm /-60dBV (1mV) +/-2dB Master 1K ohm Phones 33 ohm / 0dBV (1V) ±2dB Max. - Page 8 T.52 ASSEMBLY Thank you for purchasing the T.52 turntable from Stanton. The T.52 is built upon Stanton’s heritage of designing audiophile products for the most discriminating listener. Before assembling the T.52 please check to make sure the following items are included with the main unit in the carton.
-
Page 9: Maintenance
T.52 MAINTENANCE - For best results & proper care of your equipment use Stanton Vinyl Cleaner (VC-1) for your records and Stylus Cleaner Kit for styli (SC-4). - Clean the stylus periodically with a soft brush to prevent the accumulation of dust. - Page 10 T.52 CONTROL OVERVIEW 1. Start/Stop - Press this button to start or stop the platter. 2. Strobe dots - The dots around the edge of the platter are used in conjunction with the light located inside the motor ON/OFF switch. While the platter is in rotation, the dots help to indicate the speed of rotation.
-
Page 11: Warranty And Return Policy
Stanton’s liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party, or product liability, and relating to the merchandise shall not exceed the price received by Stanton from your purchase of such merchandise. In no event will Stanton be liable for any special, incidental or consequential damages (including loss of use, loss of profit and claims of third parties) however caused, whether by the negligence of Stanton or otherwise. - Page 12 DJLab, M.212, T.52, and T.62 are trademarks of the Stanton Group. All other trademarks are property of their respective owners, who are not affiliated with Stanton DJ. All information included in this User Manual is subject to change without notice.
