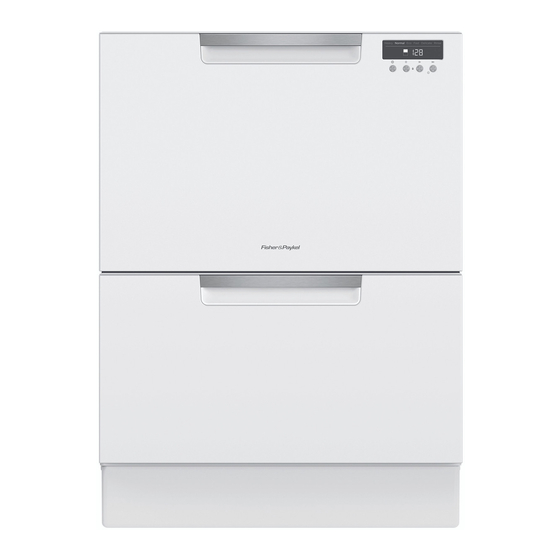

Fisher & Paykel DD60DAW9 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Fisher & Paykel Manuals
  4. Dishwasher
  5. DD60DAW9
  6. Operating instructions manual

Fisher & Paykel DD60DAW9 Operating Instructions Manual

Hide thumbs Also See for DD60DAW9:
Table of Contents

Advertisement

Quick Links

Operating Instructions
Wash Modifiers (some models only)
Along with setting the wash program, you may select one of the following the additional options:
• Extra dry: Increases the final rinse temperature and the length of the drying phase for improved drying
performance.
• Quick: Uses additional water and energy for a faster wash time, while maintaining wash performance.
• Sanitize: Raises the water temperature during the rinse phase to sanitize dishes. Ideal for washing items such
as baby bottles and preserving jars.
• Only one modifier can be set at a time
• Not all modifiers are available for every wash program. If a wash modifier is not available for the
DD*C Models
Wash Program
Heavy
Normal
https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O...
chosen wash program, then that modifier cannot be selected.
Modifier Available
Extra Dry
Extra Dry
Quick
Sanitize
Quick
Sanitize
Updated: Mon, 11 Nov 2019 03:23:07 GMT
Powered by
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD60DAW9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher & Paykel DD60DAW9

Summary of Contents for Fisher & Paykel DD60DAW9

  • Page 1 • Not all modifiers are available for every wash program. If a wash modifier is not available for the chosen wash program, then that modifier cannot be selected. DD*C Models Wash Program Modifier Available Heavy Extra Dry Quick Sanitize Normal Extra Dry Quick Sanitize https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 2: Dd*D & Dd*I Models

    To set a wash modifier 1. Make sure the dishwasher is on and detergent (and rinse aid if necessary) has been added. Double models only: Check the correct drawer is selected, or press https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 3 3. Press to scroll through the wash modifier options. ◦ The selected wash modifier indicator will light up on the display. ◦ Press to start the wash and close the drawer. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 4: Using Sanitize

    • The sanitize indicator will remain lit. • After 30 seconds the display will turn off. If sanitization has not been successful: • An alert will sound https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 5 • Reset sanitize and then run the cycle again. • See also section ‘How to attend to a fault https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 6 Removable Anti-nesting Grid • The anti-nesting grid clips onto the top of the cutlery basket. • Use the grid to separate cutlery items and stop them from nesting together. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 7: Removable Tablet Tray

    • Small, light items like baby bottle teats are best placed into the small items container to prevent them from being displaced during the wash. • You can extend your cutlery basket by clipping the container on its side. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 8: Racking Features - Foldaway Cup Racks

    - there may not be enough water reaching items that are placed above. Racking Features - Foldaway Cup Racks Racking Features will Vary Depending on Model https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 9: Knife Clip (Some Models Only)

    • Fold the tines down if you need the space for pots or other large items. • Release by folding tines down towards each other to detach them from the clips at the rear of the unit. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 10: Removable Fixed Tine Rack

    (DD*A Models Only) Racking Features - Fixed Tine Rack Removable Fixed Tine Rack • This rack is your main dish rack. The tine spacing has been optimized for maximum wash performance of plates https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 11 • Lift the trap door up • Hook the rear anchoring loop onto the base rack • Lower the fixed tine rack into place • Close the trap door to secure. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 12 (narrow spacing), depending on adjustment. To Adjust the Tine Spacing • To adjust between wide and narrow spacings, slide the tines backward or forward by pushing or pulling the handle at the front. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 13: Loading Suggestions

    • nothing blocks the water from getting to items on the foldaway cup racks • glass and other fragile items are stable, so that they do not accidentally topple and break during the wash. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT...

  • Page 14: How Not To Load Your Drawer

    • Ensure cutlery are not nesting or stuck together. openings facing down. They need to be evenly spread out. • Ensure dishware items are not forced into or • Ensure cutlery has not fallen through the base https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 15: Water Hardness And Dishwashing

    • Some models (those with a letter ‘H’ in the model name) have a built-in water softener. • Models with water softener are not currently available in New Zealand and Australia. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 16: If Your Home Has Hard Water And Your Dishwasher Has No Built-In Water Softener

    Water Hardness Powdered Detergent Quantities (Per Drawer) parts per million Wash GB IE US CA (ppm) NZ AU Programs main grains per US gallon grams grams detergent dispenser marking (gpg) https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 17 Heavy full Normal/ full Medium 100 -150 ppm or full 6 - 9 gpg Fast full Delicate full Rinse Heavy full Normal/ >150 ppm or full Medium >9 gpg full https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 18: Adding Detergent

    If your water hardness is above 625ppm/36 gpg, the wash performance of your dishwasher will decline. Adding Detergent Powdered Dishwasher Detergent You may see multiple, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 19: Filling The Powdered Detergent Dispenser

    No detergent is needed for the Rinse program. 3. Close the dispenser until it clicks shut. The detergent will automatically be released into the drawer during the wash program. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 20: Pouch Packs Of Gel Or Powder

    You may see multiple, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. Place on tablet tray in cutlery basket https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 21: Solid Dishwasher Tablets

    Don’t place the pack on the floor of the drawer, as it may interfere with the spray arm rotation and affect wash performance. Solid Dishwasher Tablets You may see multiple, equally suitable types of dishwasher detergent on the shelves of your supermarket. Read and follow the detergent manufacturer’s recommendations. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 22 If the cutlery basket is not being used for a particular load, wedge tablet between the racking on the side as shown. Don’t place the tablet on the floor of the drawer, as it may interfere with the spray arm rotation and affect wash performance. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 23: Unsuitable Detergents

    • Make sure that tablets never get in direct contact with dishes or cutlery. • If you are using dishwasher tablets with a built-in rinse aid component, we recommend turning off the rinse aid. See your ‘Quick start guide’ for instructions. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 24: Using Rinse Aid

    How to Refill Rinse Aid 1. Turn the plug anticlockwise and remove. Turn the plug anticlockwise. 2. Pour rinse aid into the circular opening, taking care not to spill any into the drawer. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 25: How Much Rinse Aid To Use

    • If you live in a hard water area and you have no water softener installed in your water supply or built into your dishwasher, we recommend adjusting the rinse aid setting to https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 26: Water Softener (Some Models Only)

    0 - 6 0 - 5.6 0 - 10 0 - 7 0 - 0.1 100 - 0.1 - 6 - 14 5.6 - 14 10 - 25 7 - 17.5 https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 27: How To Fill The Salt Reservoir

    4. Fit the cap clockwise, tightly, back into its original position. 5. If you do not wash your dishes immediately after filling the salt reservoir, run a Rinse program to remove any salt water or spilt granules. https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...

  • Page 28: The Salt Reservoir

    • DD*A & DD*C models only: The display will also indicate when the salt reservoir is empty by displaying the salt https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
  • Page 29 Do not pour detergent or rinse aid into the salt reservoir. Detergent and rinse aid will destroy the water softener. Salt only NO Rinse Aid NO Detergent https://producthelp.fisherpaykel.com/nz/Clean/DishDrawer%E2%84%A2/Double/DD60DAW9/User_Guide_DD60DAW9/03_O… Updated: Mon, 11 Nov 2019 03:23:07 GMT Powered by...
