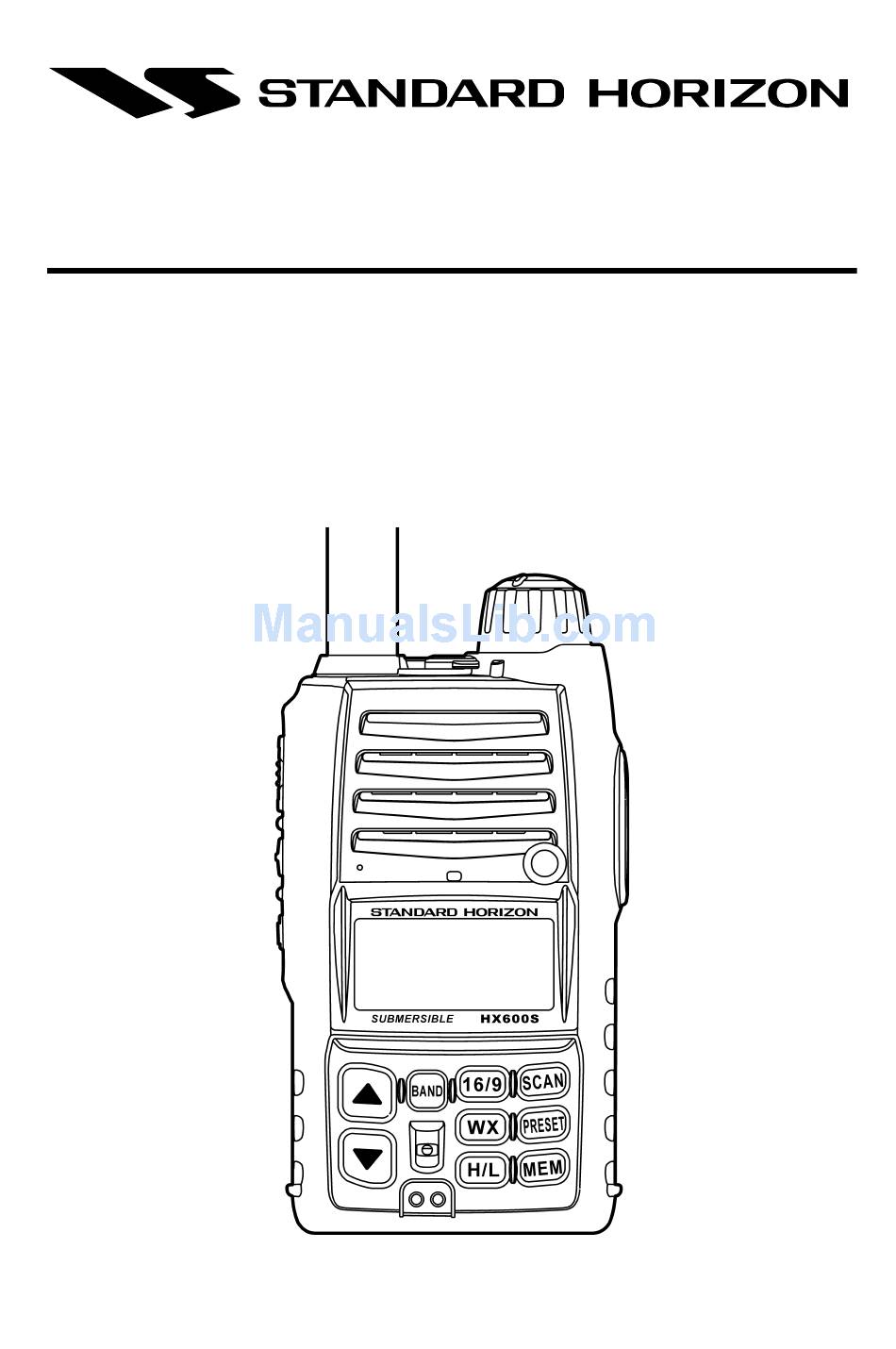

  • Page 1 HX600S VHF/FM Marine Handheld Transceiver Owner's Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RF EXPOSURE SAFETY STATEMENT ... 2 FCC AND CANADA RADIO LICENSE INFORMATION ... 3 FCC NOTICE ... 4 1. GENERAL INFORMATION ... 5 1.1 INTRODUCTION ... 5 2. ACCESSORIES ... 6 2.1 PACKING LIST ... 6 2.2 OPTIONS ... 6 3.
  • Page 3 Congratulations on your purchase of the HX600S! Whether this is your first portable marine VHF transceiver, or if you have other STANDARD HORIZON equipment, the STANDARD HORIZON organization is committed to ensur- ing your enjoyment of this high performance transceiver, which should pro- vide you with many years of satisfying communications even in the harshest of environments.

  • Page 4: Rf Exposure Safety Statement

    RF EXPOSURE SAFETY STATEMENT SAFETY INFORMATION Your wireless handheld portable transceiver contains a low power trans- mitter. When the Push-to-Talk (PTT) button is pushed, the transceiver sends out radio frequency (RF) signals. In August 1996, the Federal Communications Commission adopted RF exposure guidelines with safety levels for hand-held wireless devices.

  • Page 5: Fcc And Canada Radio License Information

    FCC AND CANADA RADIO LICENSE INFORMATION Standard Horizon radios comply with the Federal Communication Commis- sion (FCC) and Industry-Canada requirements that regulate the Maritime Radio Service. MARITIME STATION LICENSE An FCC ship station license is no longer required for any vessel traveling in U.S.

  • Page 6: Fcc Notice

    Unauthorized changes or modifications to this equipment may void compli- ance with FCC Rules. Any change or modification must be approved in writ- ing by STANDARD HORIZON, a Marine Division of VERTEX STANDARD. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 7: General Information

    2.5 Watts and 1 Watt to assist the user in ensuring maximum battery life. The optional FVP-31 Voice Scrambler can be installed to permit secure voice communications with other Standard Horizon radios with the FVP-31 scram- blers installed. HX600S...

  • Page 8: Accessories

    2. ACCESSORIES 2.1 PACKING LIST When the package containing the transceiver is first opened, please check it for the following contents: • HX600S Transceiver • CAT460 Antenna • FNB-83 7.2 V, 1400 mAh Ni-MH Battery Pack • CD-33 Charger Cradle for HX600S •...

  • Page 9: About This Radio

    3. ABOUT THIS RADIO 3.1 ABOUT THE VHF MARINE BAND WARNING: The radio frequencies used in the VHF marine band lie between 156 and 158 MHz with NOAA Weather stations available between 161 and 163 MHz. The marine VHF band provides communications over dis- tances that are essentially “line of sight”...
  • Page 10 AIR (Aircraft) Bands The AM VHF aeronautical communications band lies between 108.000 MHz and 136.975 MHz. This fre- quency spectrum can be divided into a lower and upper range. The lower range between 108.000 MHz and 118.000 MHz is primarily used for navigational aids such as the ILS - Instrument Landing Systems, DME - Distance Measuring Equipment, and VOR’s - Very High Frequency Omni Range.

  • Page 11: Getting Started

    4. GETTING STARTED If the radio has never been used, or its charge is depleted, it may be charged by connecting the CD-33 Charger Cradle with the NC-88 battery charger, as shown in the illustration. If 12V DC power is available, the supplied E-DC- 19A DC Cable with 12 V Cigarette Lighter Plug or the optional E-DC-6 DC Cable may be used for charging the battery.
  • Page 12 • Battery packs should be charged only in non-hazardous environments; • Use only STANDARD HORIZON-approved batteries; • Use only a STANDARD HORIZON, (a Marine Division of VERTEX STAN- DARD) approved charger. The use of any other charger may cause permanent damage to the battery.

  • Page 13: Battery Charging

    4.1.2 BATTERY CHARGING If the radio has never been used, or its charge is depleted, it may be charged by connecting the CD-33 Charger Cradle with the NC-88 battery charger, as shown in the illustration. If 12V DC power is available, the supplied E-DC- 19A DC Cable with 12 V Cigarette Lighter Plug or the optional E-DC-6 DC Cable may be used for charging the battery.
  • Page 14 4.1.4 USING THE CD-33 CHARGER CRADLE 1. Turn the transceiver off. 2. Insert the DC plug from the NC-88 into the DC jack on the CD-33 side panel, then plug the NC-88 into the AC line outlet. 3. Insert the HX600S (with the battery pack) into the CD-33; the antenna should be at the left side when viewing the charger from the front.

  • Page 15: Connecting A Gps To The Cd-33

    To connect the GPS receiver, connect the wires between the CD-33 and the GPS. Insure that the wires are properly shielded from water. See the figure at the right for example of connection to STANDARD HORIZON GPS CHART PLOTTER. HX600S...

  • Page 16: Controls And Switches

    5. CONTROLS AND SWITCHES NOTE This section defines each control of the transceiver. For detailed operat- ing instructions, refer to section 6 “BASIC OPERATION.” Refer to illus- trations for the location of the following controls, switches, and connec- tions. Page 14 HX600S...

  • Page 17: Volume Control

    VOLUME CONTROL Turn this control clockwise to increase the volume. MIC/SP JACK The jack accepts the optional CMP460 Speaker/Microphone, MH-57 Mini Speaker/Microphone, VC-24 VOX Headset or VC-27 Earpiece/Mi- crophone. When this jack is used, the internal speaker is disabled. ANTENNA CONNECTOR The supplied CAT460 flexible antenna is attached here.
  • Page 18 [16/9] KEY Immediately recalls channel 16 from any marine channel or band loca- tion. Holding down this key recalls channel 9. [WX] KEY Immediately recalls the last-used NOAA Weather Channel from any chan- nel location. Recalls the previously- selected working channel when the [WX] key is pressed again.
  • Page 19 [MEM] KEY Press this key to memorize the selected channel for scanning. When pressed a “MEM” icon will be shown on the LCD display indicating the channel has been saved to scan memory. The scan memory is only used with the Marine and WX channels. To delete the channel from scan memory, select the channel and press this key until “MEM”...

  • Page 20: Basic Operation

    6. BASIC OPERATION 6.1 INITIAL SETUP 1. Install the battery pack on the transceiver (see section 4.1.3 “BATTERY INSTALLATION/REMOVAL”). 2. Install the antenna onto the transceiver. NOTE: Water resistance of the transceiver is assured only when the bat- tery pack and antenna are attached to the transceiver and MIC/SP rub- ber cap is installed in the MIC/SP jack.

  • Page 21: Transmission

    [H/L] key for about one second. This locks the [ ] and [ ] keys and all the front panel controls except the [H/L], PTT and SQL keys. The “ symbol will appear on the display to indicate that the keypad is locked. Hold down the [H/L] key for about one second to unlock the keys.

  • Page 22: Noaa Weather Channels

    6.4 NOAA WEATHER CHANNELS 1. To receive a NOAA weather broadcast, press the [WX] key. The transceiver changes to the weather channel mode. This mode consists of a special preset memory bank containing the NOAA weather channels. 2. The transceiver will be set to the last used NOAA weather channel. Press the [ ] or [ ] key to change to other weather channels.
  • Page 23 6.4.2 SPECIFIC AREA MESSAGE ENCODING (SAME) In addition to the NOAA Weather Alert, the HX600S is able to receive and display NOAA Weather Radio (NWR) SAME Messages. NOAA SAME broad- casts include warnings and post-event information for all types of hazards - including natural (such as earthquakes or avalanches), environmental (such as chemical releases or oil spills), and public safety (such as AMBER alerts or 911 Telephone outages).
  • Page 24 EAS Event (NWR-SAME) Codes Nature of Activation Administrative Message Avalanche Watch Avalanche Warning Blizzard Warning Child Abduction Emergency Civil Danger Warning Civil Emergency Message Coastal Flood Watch Coastal Flood Warning Practice/Demo Warning Dust Storm Warning Emergency Action Notification Emergency Action Termination Earthquake Warning Evacuation Immediate Flash Flood Watch...

  • Page 25: Preset Channels (0 ~ 9)

    6.5 PRESET CHANNELS (0 ~ 9): INSTANT ACCESS The HX600S provides ten Preset channel for each individual operating band (VHF Marine, AM Broadcast, FM Broadcast and Air Band). Programming 1. Select the desired band by pressing the [BAND] key. 2. Hold down the [PRESET] key, and press the [ ] or [ ] key (repeatedly, if necessary) until the desired channel number or frequency is displayed.

  • Page 26: Advanced Operation On The Marine Band

    7. ADVANCED OPERATION ON THE MARINE BAND 7.1 USA, CANADIAN, AND INTERNATIONAL CHANNELS 1. To change from US to Canadian or International Marine Channels, hold down the [16/9] key and press the [WX] key. The band will change from USA, to International, and to Canadian with each press. 2.

  • Page 27: Programmable Priority Scan

    7.3 PROGRAMMABLE PRIORITY SCAN The priority scanning feature allows the radio to scan while also keeping watch on a particularly important “priority channel.” The following channels can be set as the priority channel: 16, 09, and MARINE Preset Channel. 1. To set the priority channel, hold down the [16/9] key and press the [MEM] key.

  • Page 28: Dual Watch

    7.4 DUAL WATCH The Dual Watch feature allows the radio to watch for a transmission on the priority channel and another selected Marine channel until a signal is re- ceived. The priority channel is determined in section 7.3 “PROGRAMMABLE PRIORITY SCAN”. 1.

  • Page 29: Channel 9

    7.7 CHANNEL 9 Channel 9 is used as a hailing channel for initial, non-emergency contacts with other vessels. Hold down the [16/9] key for 1 second to select channel 9. You should change to a working channel, after contact is established (so as to keep the hailing channel clear for other users).

  • Page 30: Digital Selective Calling

    7.10 DIGITAL SELECTIVE CALLING 7.10.1 GENERAL 7.10.1.1 Digital Selective Calling (DSC) Digital Selective Calling is a semi-automated method of establishing a radio call; it has been designated by the International Maritime Organization (IMO) as an international standard for establishing VHF, MF and HF radio calls. It had also been designated as part of the Global Maritime Distress and Safety System (GMDSS).

  • Page 31: Sending A Distress Call

    7.10.2 SENDING A DISTRESS CALL The distress call automatically includes the vessel’s DSC MMSI and Lat/Lon position. The vessel’s position will only be transmitted if the transceiver is properly connected to an operating GPS receiver with NMEA output. 1. Lift the red DISTRESS rubber cover on the right side of the transceiver and press the [DISTRESS] key.

  • Page 32: Scrambler Operation

    8. SCRAMABLER OPERATION 8.1 VOICE SCRAMBLER UNIT The optional FVP-31 Voice Scrambler Unit permits secure voice communi- cations with stations within your network, which prevents others from listen- ing using normal communication equipment. To activate the Voice Scrambler: 1. Turn the radio off. 2.

  • Page 33: Calling Another Vessel (Channel 16 Or 9)

    9. End the message by saying “OVER”. Release the microphone button and listen. 10. If there is no answer, repeat the above procedure. If there is still no re- sponse, try another channel. 9.2 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) Channel 16 may be used for initial contact (hailing) with another vessel.

  • Page 34: Operating On Channel 13 And 67

    9.3 OPERATING ON CHANNELS 13 AND 67 Channel 13 is used at docks and bridges and by vessels maneuvering in port. Messages on this channel must concern navigation only, such as meet- ing and passing in restricted waters. Channel 67 is used for navigational traffic between vessels. By regulation, power is normally limited to 1 Watt on these channels.

  • Page 35: Menu ("Set") Mode

    10. MENU ( “SET” ) MODE The Menu Mode allows a number of the HX600S operating parameters to be customized. 1. Turn the transceiver off. 2. Hold down the SQL switch, then turn on the transceiver while still holding down the SQL switch. 3.
  • Page 36 to 12 characters). 9. After completing your adjustment, press the SQL switch to save the new setting. 10. Press the PTT key to exit to normal operation. dUL (DW DISPLAY) Function: Selects the Dual Watch scanning display mode. Available Values: Normal / Special Default: Special When “Special”...
  • Page 37 Function: Stores MMSI ID code. Note: The MMSI can only be inputted twice. If entered more than twice, the HX600S will have to be sent to STANDARD HORIZON factory service to reset the MMSI. nA1 - nA6 (NOAA Weather SAME Area 1 - 6)
  • Page 38 1. Visit http://www.nws.noaa.gov/nwr/indexnw.htm and choose the SAME code in the state and county of the coverage area. Example: COUNTY/CITY/AREA SAME # Los Angeles 006037 2. Turn the transceiver off. 3. Press and hold the SQL switch, then press and hold the POWER switch until the display turns on and shows “SEt 4.

  • Page 39: Installation Of Options

    11. INSTALLATIONS OF OPTION 11.1 FVP-31 VOICE SCRAMBLER UNIT 1. Make sure that the transceiver is off.Remove the battery pack. 2. Locate the connector for the optional unit under the caution seal in the battery compartment on the back of the transceiver; just peel off the cau- tion seal.

  • Page 40: Maintenance

    12. MAINTENANCE 12.1 GENERAL The inherent quality of the solid-state components in STANDARD HORIZON radios will provide many years of continuous use. Take the following precau- tions to prevent damage to the radio. • Keep the microphone connected or the jack covered at all times to pre- vent corrosion of electrical contacts;...

  • Page 41: Troubleshooting Chart

    4 of this manual. Key Lock is on. Turn Key Lock off. Refer to sec- tion 5, Proper operation not Hold down the H/L key for 1 sec- followed. ond. Defective battery Contact your Standard Horizon FNB-83. dealer. REMEDY H/L key. Page 39...

  • Page 42: Vhf Marine Channel Assignment

    13. VHF MARINE CHANNEL ASSIGNMENTS Tables on the following pages list the VHF Marine Channel assignments for U.S.A. and International use. Below are listed some data about the charts. 1. VTS. Where indicated, these channels are part of the U.S. Coast Guard’s Vessel Traffic System.
  • Page 43 the term “non-commercial” in the Channel Use column of the chart. Some of these are shared with other users and some are used only in certain geographic regions. 6. Marine vessels equipped with VHF radios are required to monitor Channel 16. CH U C 156.050 160.650 Public Correspondence ( Marine Operator ) 01A X...
  • Page 44 CH U C 157.150 161.750 Public Correspondence ( Marine Operator ) 23A X 157.150 157.200 161.800 Public Correspondence ( Marine Operator ) X X X 157.250 161.850 Public Correspondence ( Marine Operator ) X X X 157.300 161.900 Public Correspondence ( Marine Operator ) X X X 157.350 161.950 Public Correspondence ( Marine Operator ) X X X...
  • Page 45 CH U C 156.975 161.575 Port operation and Ship movement 79A X X 156.975 157.025 161.625 Port operation, ship movement 80A X X 157.025 157.075 161.675 Port operation, ship movement 81A X X 157.075 157.125 161.725 Public Correspondence ( Marine Operator ) , 82A X X 157.125 157.175 161.775 Canadian Coast Guard Only...
  • Page 46 Points of communica- Carrier frequency tion (Intership and be- ( MHz ) Channel tween coast and ship designator Ship Coast unless otherwise indi- transmit transmit cated) Port Operations 156.050 156.050 156.175 156.175 156.250 156.250 156.275 156.275 156.325 156.325 156.600 156.600 156.675 156.675 156.700 156.700 156.725 156.725...
  • Page 47 4: Use of 156.875 MHz is limited to communications with pilots regarding the movement and docking of ships. Normal output power must not exceed 1 watt. 5: 156.375 MHz and 156.650 MHz are available primarily for intership navigational communications. These frequencies are available between coast and ship on a secondary basis when used on or in the vicinity of locks or drawbridges.

  • Page 48: Warranty

    Product or part(s) therein which, upon examination by STANDARD HORIZON, appear to be defec- tive or not up to factory specifications. STANDARD HORIZON may, at its option, repair or replace parts or subassemblies with new or reconditioned parts and subassemblies.
  • Page 49 This warranty only extends to Products sold within the 50 States of the United States of America and the District of Columbia. STANDARD HORIZON will pay all labor to repair the product and replacement parts charges incurred in providing the warranty service except where purchaser abuse or other qualifying exceptions exist.

  • Page 50: Product Warranty Registration

    Product Support Inquiries If you have any questions or comments regarding the use of the HX600S, you can visit the STANDARD HORIZON Web site to send an E-mail or contact the Product Support team at (714) 827-7600 ext 6300 M-F 7:00- 5:00PST.

  • Page 51: Specifications

    15. SPECIFICATIONS Performance specifications are nominal, unless otherwise indicated, and are subject to change without notice. 15.1 GENERAL Frequency Ranges (MHz): Frequency Stability: Emission Type: Antenna Impedance: Supply Voltage: Current Consumption: Operating Temperature: Case Size (W x H x D): Weight (Approx.): 15.2 TRANSMITTER RF Power Output (@7.4 V):...
  • Page 52 15.3 RECEIVER Circuit Type: Intermediate Frequencies: Sensitivity: Adjacent Channel Selectivity: 65 dB Typical Intermodulation: Selectivity: AF Output (Internal speaker): Page 50 Double-Conversion Superheterodyne (NFM, AM) Triple-Conversion Superheterodyne (WFM) NFM, AM 1st: 47.25 MHz 2nd: 450 kHz 3rd: – 0.2 µV for 12 dB SINAD (Marine Band) 0.2 µV for 12 dB SINAD (WX Band) 1 µV for 12 dB SINAD (FM Broadcast) 1 µV for 10 dB SN (AM Broadcast)
  • Page 53 NOTE HX600S Page 51...
  • Page 54 NOTE Page 52 HX600S...
  • Page 55 This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Part 15.21: Changes or modifications to this device not expressly ap- proved by Vertex Standard could void the User’s authorization to oper- ate this device.
  • Page 56 Marine Division of VERTEX STANDARD US Headquarters 10900 Walker Street, Cypress, CA 90630, U.S.A. Copyright 2006 VERTEX STANDARD CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD.
