Quick installation
Thank you for choosing Xiaomi R3D
PRO Router
To get started, it takes only three
steps:
Connection to a power supply and
accession to network cable
Connect to power supply and to insert an
outside equipment cable into the router
connector.
* Connect the other end of the external
network cable to the optical modem / ADSL
modem / subscriber gateway.
If the above equipment is not available, you
can connect directly to the home network
cable.

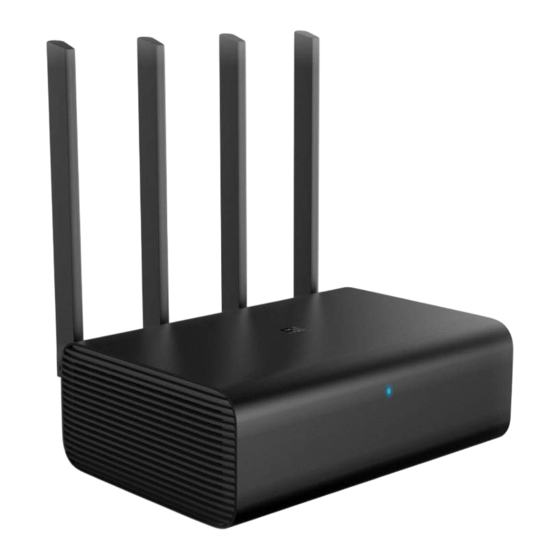

Xiaomi R3D PRO Router
Connection of
external network
Connection of the
power supply
Advertisement
Related Manuals for Xiaomi R3D PRO
Summary of Contents for Xiaomi R3D PRO
- Page 1 Xiaomi R3D PRO Router Quick installation Thank you for choosing Xiaomi R3D PRO Router To get started, it takes only three steps: Connection to a power supply and accession to network cable Connect to power supply and to insert an outside equipment cable into the router connector.
- Page 2 Opening the browser or installing APP on the phone Visit miwifi.com or type an IP-address of the router 192.168.31.1. You can also complete the installation by using APP for the Xiaomi router. To download APP to your phone, you need to scan the QR code.
- Page 3 Overview Introduction to the Xiaomi PRO Router The two-frequency transmission of the speaker supports MU- External four antennas contribute to super-wide signal MIMO. coverage. Multiple terminals provide the ability to simultaneously receive Four omnidirectional antennas support the signal and send data; Two-frequency transmission; The maximum penetration mode through the wall.
-
Page 4: Connectors And Buttons
Connectors and buttons Connecting the router to the power source Power connector USB connector USB equipment connection (support USB3.0) Reset key Resetting the router Built-in gigabyte LAN Fast connection to the router of wired equipment Built-in gigabyte Connecting the router to external networks (optical modem / external network ADSL modem / external network cable) * A network card, a network cable (gigabyte network interface connectors) should support gigabytes. - Page 5 Description of indicator light The specified color of the indicator light corresponds to the following circumstances: LED is off (no The router is in the process of shutting down or color) is not connected to the power source yellow The system is updated (flickering), the system is started (constant glow) blue Normal functioning (constant glow)
-
Page 6: Frequently Asked Questions
Internet access has been selected, and whether the user name and password provided by the operator have been If the indicator light of the Xiaomi router glows red, it means that the correctly entered. We advise you to go to any site using APP on your... -
Page 7: Service & Maintenance
Within 7 days from the date of purchase of the device, if there are any problems with the quality of the Xiaomi router, the consumer can choose, or return the check for payment for the goods, which can only be performed once, or exchange the faulty device to another Xiaomi router identical to the model And specifications.
