CineTension2/Home2 Series Limit Switch adjustment instructions

Caution: The screen's Top Black Drop is already set to its maximum drop distance. There is NO

extra black top drop in the roller. Attempting to increase the drop will damage the motor and

VOID your warranty with Elite Screens. DO NOT use these instructions to try and get more out

of your standard black masking drop. Please contact Elite Screens before making any

adjustments.

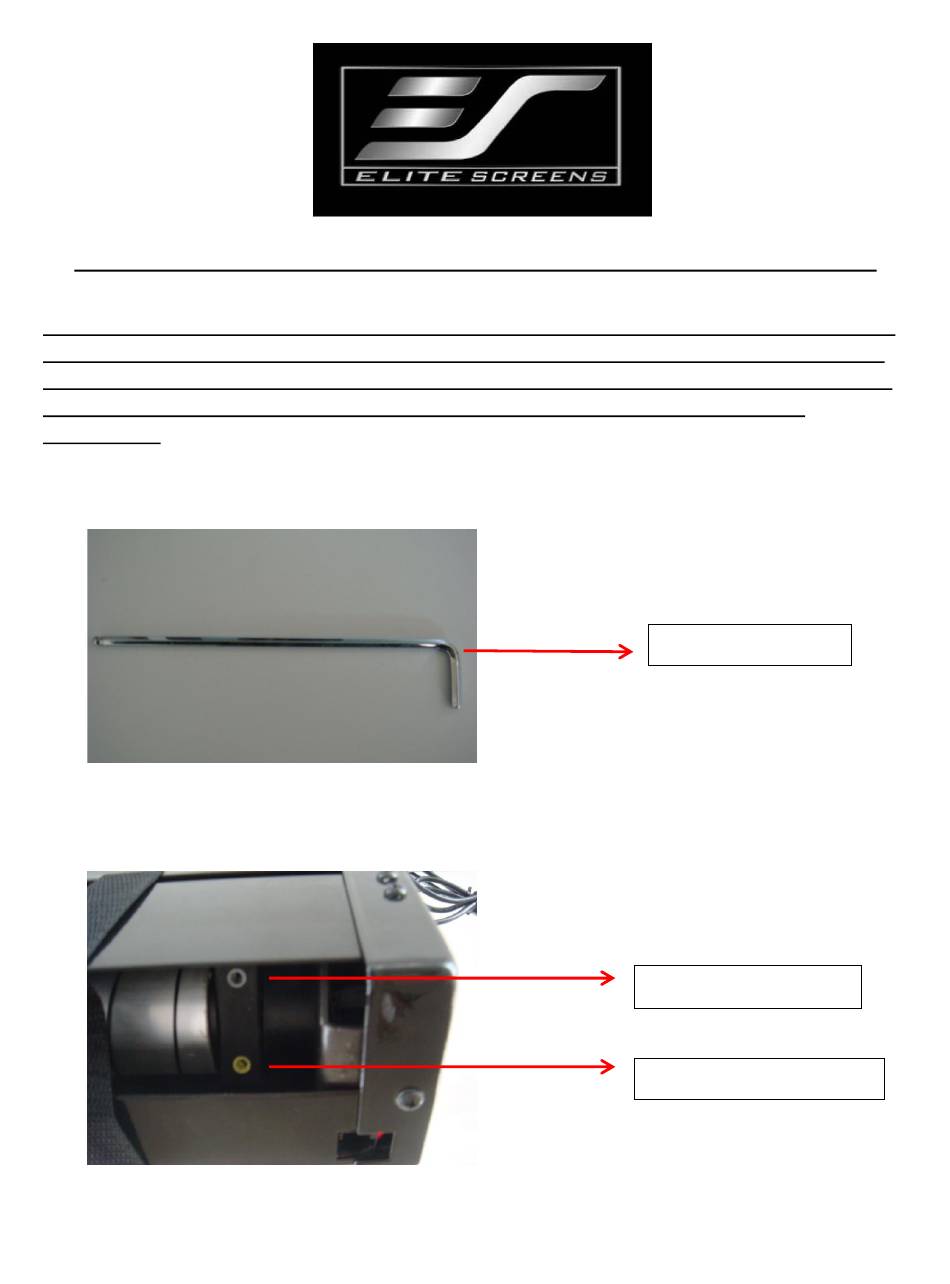

1. Allen Wrench

2. Limit Adjustment Instructions

Fig. 1

Fig. 2

5/32" Allen Wrench

UP adjustment switch

DOWN adjustment switch

Page 1 Attempting to increase the drop will damage the motor and VOID your warranty with Elite Screens. DO NOT use these instructions to try and get more out of your standard black masking drop. Please contact Elite Screens before making any adjustments.
Page 2 (Note: When turning the limit switches, bear in mind that a full-circle turn in either direction will create a one inch adjustment) 3. Adjusting Retraction Position (shown in Fig. 3 – Fig. 7) If the screen will not retract completely (as shown in Fig. 3) use the following steps.
Page 3 When you turn the UP switch, the screen will retract correspondingly. Stop rotating the switch once the weight bar lines up with the casing. (Warning: If you continue to rotate the switch once the weight bar fits flush with the casing, the screen will attempt to retract further, causing damage to the unit.
Page 4 If you need to decrease the amount of top black masking, refer to the following steps. Fig. 8 User your remote control to fully lower the screen. Fig. 9 Use your allen wrench to turn the DOWN switch clockwise. Fig. 10...
Page 5 DOWN adjustment switch counter- clockwise, the screen will retract into its casing. (Note: Please avoid over-turning the switch.) Fig. 12 Note: As a rule, Elite Screens does not recommend making unnecessary adjustments to the screen, as improper adjustments will damage the unit.

Home2 series
