Usb Source Selection - AudioArts Engineering Lightning Technical Manual

source of feedback. For this reason the console provides muting to the control room output
and, optionally, the built-in cue speaker, whenever a mic programmed for control room
mute is turned ON.
Turning on the CUE MUTE dipswitch will mute cue whenever the CR output is muted
by an input channelset to activate the CR mute.

USB Source Selection

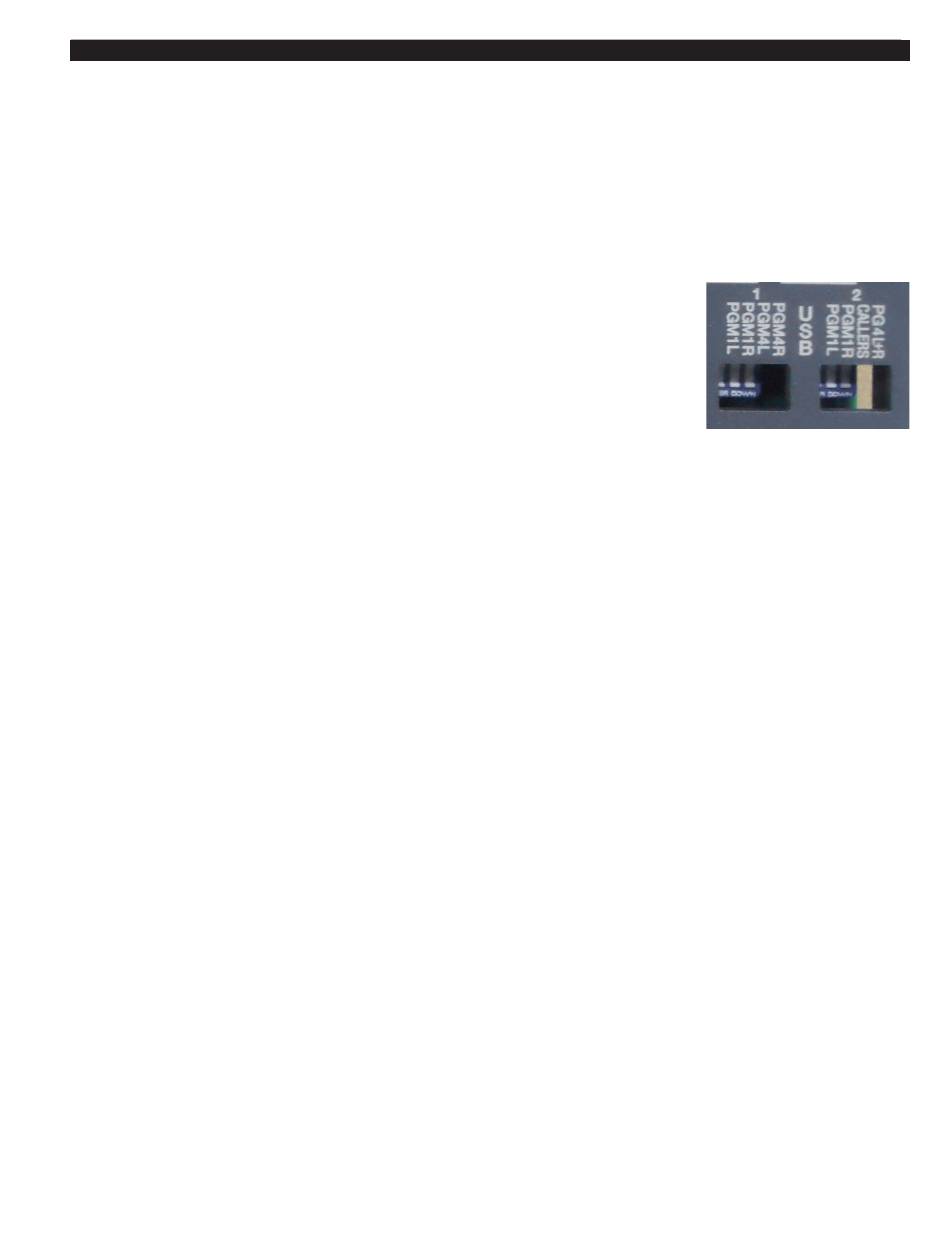

Two dipswitches are used to determine sources to feed the USB
links. Positions 1 and 2 should be on to feed USB 1 and USB 2 with
PGM 1, while positions 3 and 4 should be on to feed USB1 with
PGM 4 and to feed USB2 with sum of callers and sum of L+R PGM 4,
respectively.
If PGM 1 is to be used, the PGM 4 positions should be off, and if
PGM 4 is to be used, the PGM 1 positions should be off. DO NOT
activate both PGM 1 and PGM 4 simultaneously!
Dipswitch USB 1:
pos.1 selects PGM 1 LT
pos.2 selects PGM 1 RT
pos.3 selects PGM 4LT
pos.4 selects PGM 4RT.
Dipswitch USB 2:
pos.1 selects PGM 1 LT
pos.2 selects PGM 1 RT
pos.3 selects SUM OF CALLERS
pos.4 selects SUM OF PGM 4 LT & PGM 4 RT.
