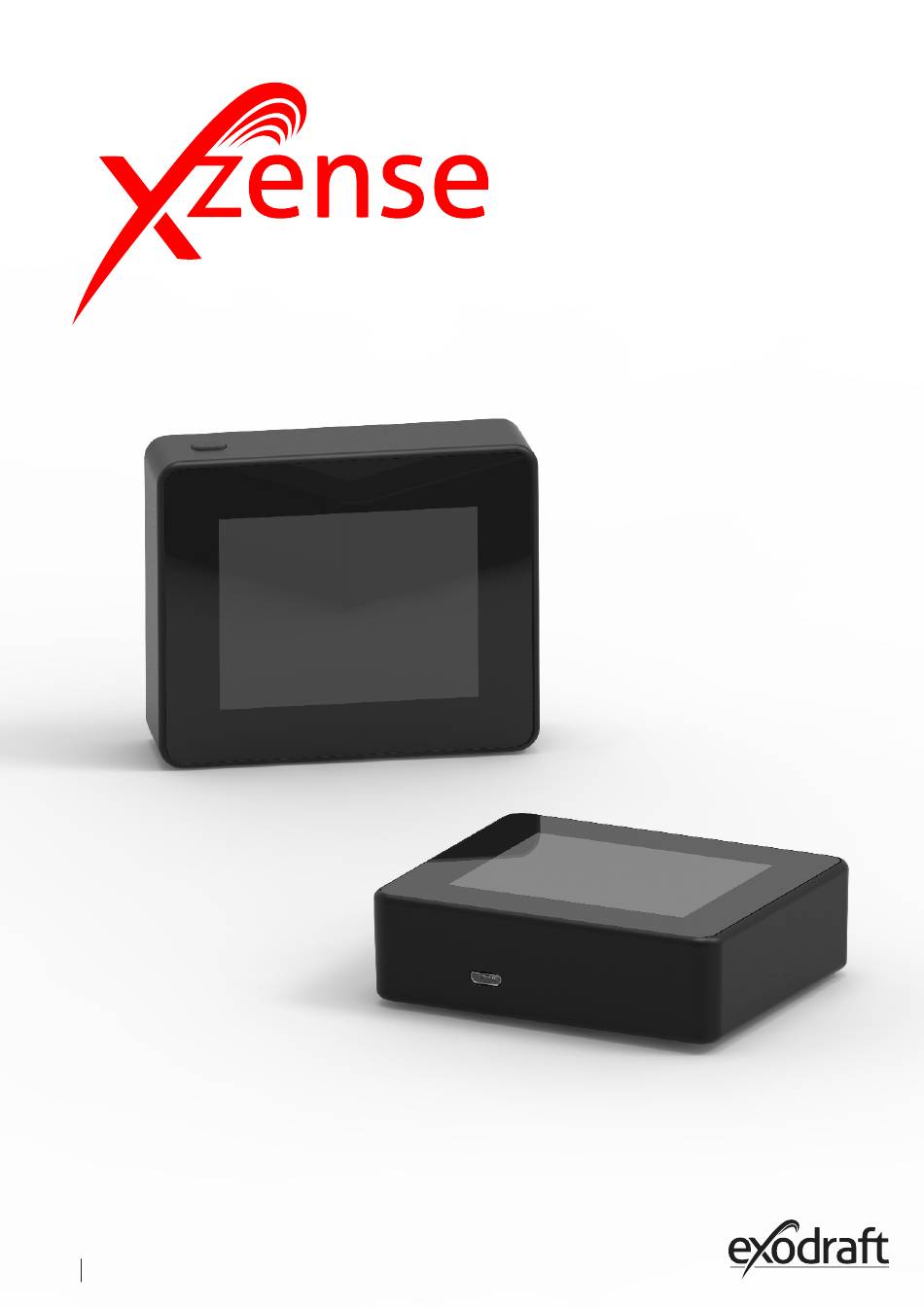

- Page 1 Always read and save the instructions! 3111001 Xzense UK 20190731...
-
Page 2: Table Of Contents
Type ID no. Password Pairing card (pin code) Control panel Power Unit ID Control panel serial no. * The serial number is located on the back of the control panel. 3111001 Xzense UK 20190731... - Page 3 No special precautions. The product should be disposed of in accordance with national rules for the disposal of electronic waste. Illustration explanation Illustration Explanation Light pres incl. movement on the touch screen. To the sides or up and down Light pres on touch screen 3111001 Xzense UK 20190731...
-
Page 4: Pairing Card (Pin Code)
1.3. Application exodraft wireless Xzense control, together with an exodraft chimney fan, is designed for use with fireplaces, stoves and solid fuel boilers. Xzense can start the chimney fan automatically by means of the temperature sen- sor, but can also be started by using the control panel. -
Page 5: Function - With Temperature Sensor Activated

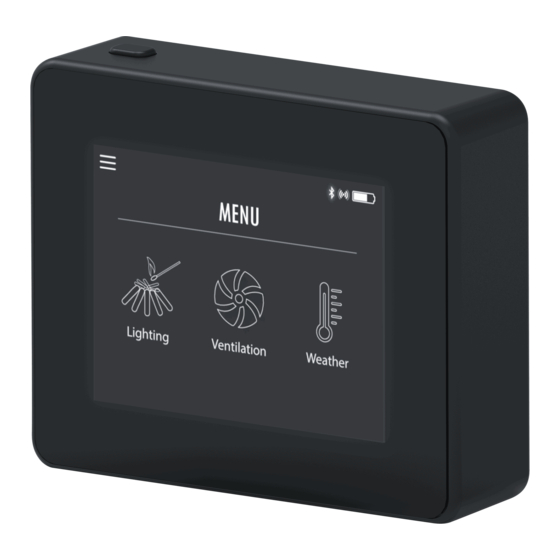

Product information 1.4. Function - with temperature sensor activated Xzense is activated by pressing the button at the top of the control panel. Start-up function The lightning function is selected before lighting the stove/fireplace. The chimney fan now starts at the starting speed, boost. After a preset time, the speed is adjusted down to a lower set level. -
Page 6: Setup Mounting
Power Unit or if the signal has to pass through, for example, several storeys. The signal can at most go through 3 pcs. repeater between an Xzense Power Unit and a control panel. The repeater is placed between the Xzense control panel and the Power Unit, which is typically mounted on the chimney. - Page 7 0-10V 0-10V Supply Motor Sensor Stop 2X0,75 White Chimney fan Brown 3x1,5 Blue Nreg Green/Yellow Socket 3x1,5 Note: From the temperature sensor, the two red wires in terminal 7 and the two white in terminal 8. 3111001 Xzense UK 20190731...
-
Page 8: General Use Of The Control Panel
A dialog box appears and asks if you want to restart the control panel. If you want to switch off its panel completely, ress the button for more than 10 sec. To reactivate the panel, it needs to be powered by a USB-charger. 3111001 Xzense UK 20190731... - Page 9 Insert rawlplugs and mount the steel plate in the two holes with two screws. Slide the plastic bracket outside the steel plate Fit the stop at the end of the bracket The Xzense control panel can now be placed on the wall bracket 3111001 Xzense UK 20190731...
-
Page 10: Generally Add/Delete Devices
Finish with OK. The code consists of four characters. Number from 0-9 and/or letters from A-F.* *The password illustrated to the right is just an example. 3111001 Xzense UK 20190731... - Page 11 Tilføj enhed UNITS A dialog box appears, and you finally confirm with YES if Power Unit (F1EE) Power Unit Disconnect the Power Unit (F1EE)? you want to delete the pairing to the device. Repeater Repeater Tilføj enhed 3111001 Xzense UK 20190731...
-
Page 12: Add/Pair With Power Unit
Power Unit. Repeater Repeater Tilføj enhed UNITS If the connection has been made correctly, Power Unit (F1EE) Power Unit The devices are now paired! the control panel will report the pairing again. Repeater Repeater Tilføj enhed 3111001 Xzense UK 20190731... - Page 13 Power Unit. Repeater Repeater Tilføj enhed INDTAST KODE PIN CODE Then enter the supplied code and end with OK. If the connection has been made correctly, the control panel will announce that the pairing has been completed. 3111001 Xzense UK 20190731...
- Page 14 Power Unit. Repeater Repeater Tilføj enhed UNITS If the connection has been made correctly, Power Unit (F1EE) Power Unit The devices are now paired! the control panel will report the pairing again. Repeater Repeater Tilføj enhed 3111001 Xzense UK 20190731...
- Page 15 Press the button (C) on the Power Unit for more than 5 sec. Note: the search may take up to 2 min. Fuse: Secure the chimney fan against overload. The Power Unit serial number (located on the inside of the box) 3111001 Xzense UK 20190731...
- Page 16 (Add device) in the lower right corner. Repeater Repeater Tilføj enhed INDTAST KODE PIN CODE Then enter the supplied ID and the supplied code. Exit with OK. If the connection has been made correctly, the control panel will report the pairing again. 3111001 Xzense UK 20190731...
-
Page 17: Test Of Communication/Signal
If there are many data packets left, the signal is bad and Rx: 89/100 you should find a better place for its control panel. 3111001 Xzense UK 20190731... -
Page 18: Language Selection
Sound Select the desired language by moving your finger to the side of the language menu. Click on the DANSK desired language. To return to the menus, use the back arrow at the bottom left corner. 3111001 Xzense UK 20190731... -
Page 19: Lighting And Operation
The display shows the new setting. The display automatically goes into sleep mode and the backlight goes out after a short time. Press the button on the top of the unit to turn the display back 3111001 Xzense UK 20190731... -
Page 20: Refire And Afterrun
The chimney fan has a Afterrun period of 30 minutes, which ensures that the fuel is glow-free and that the remaining smoke has been led away from the chimney. Both the stop temperature and the afterrun period can be changed in the menu. 3111001 Xzense UK 20190731... -
Page 21: Ventilation
Start the chimney fan by press the Start-button. 100% Start To increase or decrease the speed, use the buttons to adjust with. The display shows in percentage how fast it is running. Sluk Turn off the chimney fan by pressing Stop. Stop 3111001 Xzense UK 20190731... -
Page 22: System Control
Pressure controlled chimney speed. *If you want to know more about eXotelligence, you can find more information on our website www.xzense.com 2.13. Weather station In the weather station on the control panel you can see the conditions for the weather on the given day/firing. -
Page 23: Pairing With Smartphone Via Bluetooth
2.14. Pairing with smartphone via Bluetooth The control panel can be paired with a smartphone (iOS and Android) if you want to operate the chimney by using an app. Download the app Xzense in your application store on your smartphone. Control panel... - Page 24 Action Display* Xzense Cancel Xzense Tools Værktøjer DOWNLOAD Get the Xzense app on your smartphone Today Games Apps Updates Search Open the Xzense app on your smartphone *On the next pages it is an iPhone that is illustrated, but the app can also be used on an Android smartphone.
- Page 25 Connects... - Remember to turn Bluetooth on both your Cancel smartphone and your control panel. Ready for Lighting Add Xzense device Select OK to add/pair your control panel with your Add first a Xzense device smartphone. 3111001 Xzense UK 20190731...
- Page 26 Add device with Bluetooth Activate the pairing by selecting ON on the control panel you want to pair with. The control panel ID is seen in parentheses after the Xzense text. Eg. Xzense (CFEE) Add device with Bluetooth Pin code missing Insert pin code to connect Enter the code and finish with OK.
- Page 27 App infomation Ready for Lighting The app is now paired with the control panel - and you can now make a lighting by using your app. 3111001 Xzense UK 20190731...
-
Page 28: Basic Features Of The App
The boost period starts and runs in the time interval the control panel is on. At the factory setting, the boost period is set 10 min. Make sure to turn on during the boost period - ie. when The chimney fan runs at maximum speed. 3111001 Xzense UK 20190731... - Page 29 Press NO if you do not want to stop lighting/firing. Operating speed and chimney temperature Chimney After the boost period, it switches on in operation. To increase or decrease the chimney speed and hence the chimney draft is used up and down buttons. 3111001 Xzense UK 20190731...
- Page 30 If you want to refire, press YES in the dialog box before refiring. To avoid smokes in the room, increase the chimney fan speed to maximum output in 3 minutes before falling back to the previous setting. 3111001 Xzense UK 20190731...
- Page 31 App infomation Afterrun If you do not want to refire, choose the NO function and the Afterrun will start. The Afterrun has a factory setting with time period of 30 min. 3111001 Xzense UK 20190731...
-
Page 32: Ventilation With The App
When the chimney is cleaned, the chimney fan must also be cleaned. Step Action Display Not in operation Select the Ventilation function to make a ventilation without a lighting. Not in operation Start the chimney fan by pressing the Start button. 3111001 Xzense UK 20190731... -
Page 33: Weather Station In The App
Also, as on the control panel, you also have the Weather Station on the app. 19.44 Vejrstation Weather Udendørs Outdoor Select the Weather function at the bottom of the menu to get an overview of temperatures and air pressure at the given time. Chimney Skorsten 45 C 3111001 Xzense UK 20190731... -
Page 34: Setup And History In The App
Bluetooth Step Action Display Bluetooth Select the Settings option in the bottom menu. Select Bluetooth. System control History Add device with Bluetooth The overview in the Bluetooth menu shows which devices your smartphone can connect to. 3111001 Xzense UK 20190731... - Page 35 Changing the system control on its smartphone app also makes a change on the control panel. The same Pressure controlled is true if you make the change from the control panel, this will also affect the app. 3111001 Xzense UK 20190731...
- Page 36 Select the Settings option in the bottom menu. Select the History menu. System control History History Choose either Error Log or History to get one Error Log overview of any. error messages, operating hours, etc. History 3111001 Xzense UK 20190731...
- Page 37 15-04-2019 Error Log Low battery 02-03-2019 In the Error Log, there is an overview of the error messages that may be have been on the way. The same overview can be found in the control panel. 3111001 Xzense UK 20190731...
-
Page 38: Faq In The App
App information 2.19. FAQ in the app In the FAQ in the app you can find the frequently asked questions or small quick guides videos about using Xzense. Step Action Display Select the FAQ menu in the upper right corner... - Page 39 Quick Guide Videos For a quick and easy review of: 1. Pairing with Power Unit 2. The use of Xzense (Lighting, Refiring and Afterrun) 3. Xzense user settings (language, volume, brightness, etc.) 4. Pairing with Smartphone 5. Xzense App features 6.
-
Page 40: Software Update
Please note that you must have downloaded the Xzense app to your smartphone in order New software version is now available. Install now? to update software on the control panel. -
Page 41: Accessories - Repeater
The signal can at most go through 3 pcs. repeaters between an Xzense power unit and a control panel. The repeater is placed between the Xzense control panel and the power unit, which is typically mounted on the chimney.In some situations, it would be appropriate to set up the repeater outdoors, eg under the overhang or... -
Page 42: Technical Data
Dimension (h x b x d) 75 mm x 85 mm x 25 mm Input, supply 5 VDC - USB Ingress protection IP20 Material Box: Black ABS - Lid: Black PC Ambient temperature -30 °C to 60 °C 3111001 Xzense UK 20190731... -
Page 43: Accessories - Xtp Sensor
The XTP sensor makes it possible to achieve a constant draft in the chimney, thereby ensuring optimum combustion during firing. Xzense XTP sensor must always be mounted with the hose connectors downwards (fig. 1). (fig. 1) When underpressure measurement, the pressure hose is mounted on the (-) stud. -
Page 44: Add Device/Pairing Devices
Ingress protection: IP20 Material: Box: Black ABS - Lid: Black PC Ambient temperature: C - +50 Storage temperature: C - +50 Input, supply: 5 VDC - USB Permitted overpressure: 20000 Pa Media: Air and flue gases 3111001 Xzense UK 20190731... -
Page 45: Technical Specifications
• No devices have been added to the control panel display (see section 2.10 Signal test and add / delete units). * Note: All alarm views will disappear when the error is corrected. See the overview of troubleshooting under the Error Log menu. 3111001 Xzense UK 20190731... -
Page 46: Technical Data
Cable: -50 °C til 125 °C 868 MHz / Frequency for 868 MHz Bluetooth LE 2.4 GHz radiocommunications Li-Po Battery Battery type 30 days (preliminary) Battery life T 2,0 A Fuse Power output Standby consumption PT 1000 Type 3111001 Xzense UK 20190731... -
Page 47: User And Service Menu
Add power unit, repeater and pressure sensor Signal test Displays the status of the signal Deletes all included devices: Yes/No Reset network Note: Also deletes the power unit from the network Bluetooth Enable Bluetooth Activating Bluetooth function: On/Off 3111001 Xzense UK 20190731... - Page 48 Turn off the fan Sluk ventilatoren (Sluk/Start) Outdoor Outdoor temperature The current temperature outside Variable WEATHER Chimney Chimney temperature The current temperature in the chimney Variable Air pressure The air pressure outside The current air pressure outside Variable 3111001 Xzense UK 20190731...
-
Page 49: Declaration Of Conformity
EMC-direktiivi: Directive Compatibilité Electromagnétique: EMC-eftirlitið: EMC-direktivet: Direttiva Compatibilità Elettromagnetica: Dyrektywą EMC – kompatybilności elektromagnetycznej 2014/30/EC Algemeen directeur Odense, 29.05.2019 Adm. direktør Geschäftsführender Direktor Managing Director Président Directeur Général Verkställande direktör Jørgen Andersen Toimitusjohtaja Framkvemdastjori Direttore Generale 3111001 Xzense UK 20190731... - Page 52 DK: exodraft a/s NO: exodraft a/s DE: exodraft GmbH C. F. Tietgens Boulevard 41 Storgaten 88 Soonwaldstraße 6 DK-5220 Odense SØ NO-3060 Svelvik DE-55569 Monzingen Tel: +45 7010 2234 Tel: +47 3329 7062 Tel: +49 (0)6751 855 599-0 Fax: +45 7010 2235 info@exodraft.no...
