Summary of Contents for Exodraft Xzense
- Page 1 3111001 Xzense UK 20220215 Always read and save the instructions!
-
Page 2: Table Of Contents
User and service menu Type ID no. Password Declaration of Conformity Pairing card (pin code) Control panel Power Unit ID Control panel serial no. * The serial number is located on the back of the control panel. 3111001 Xzense UK 20220215... - Page 3 Product information Signature explanation The following terms are used in this manual to draw attention to potential risks or important product information: Danger Warning Violations of directions indicated by Violations of instructions indicated by a a prohibition symbol are associated hazard symbol are associated with the with a danger to life.
-
Page 4: Product Information
When the temperature drops further, the chimney fan stops after 30 min. A simple programming of the control makes it possible to use Xzense optimally, together with either an open fireplace or a stove/ boiler. -
Page 5: Function - With Temperature Sensor Activated
The factory setting for boost speed is 100% for 10 min. The first time the Xzense is used the speed drops to 50 %. When usedthe next time, the speed drops to the last used speed. -
Page 6: Setup Mounting
This is useful when the signal shall pass through several storeys. The signal can at most go through 3 pcs. repeater between an Xzense Power Unit and a control panel. The repeater is placed between the Xzense control panel and the Power Unit, which is typically mounted on the chimney. - Page 7 Product information Step Action Illustration For steel chimneys: Remove the lid from the power unit and mount the bracket (optional extra) using screws and nuts. Drill 4 mm holes in the chimney and mount the device using selftapping screws (max. 1 m from the chimney fan).
-

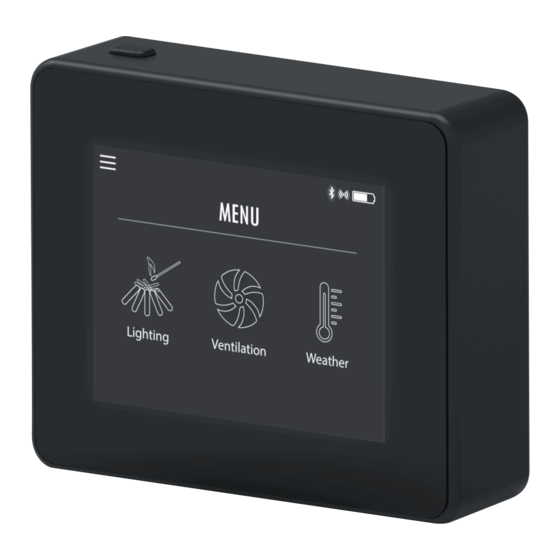

Page 8: General Use Of The Control Panel
A dialog box appears and asks if you want to restart the control panel. If you want to switch off its panel completely, press the button for more than 10 sec. To reactivate the panel, it needs to be powered by a USB-charger. 3111001 Xzense UK 20220215... - Page 9 Insert rawlplugs and mount the steel plate in the two holes with two screws. Slide the plastic bracket outside the steel plate Fit the stop at the end of the bracket The Xzense control panel can now be placed on the wall bracket...
-
Page 10: Generally Add/Delete Devices
Finish with OK. The code consists of four characters. Number from 0-9 and/or letters from A-F.* *The password illustrated to the right is just an example. DeviceID: F1EC PW: 9186 3111001 Xzense UK 20220215... - Page 11 Product information Delete paired devices Step Action Display UNITS If you want to delete a paired device, select the trash can Power Unit (F1EE) Power Unit icon to delete the pairing. Repeater Repeater Tilføj enhed UNITS A dialog box appears, and you finally confirm with YES if Power Unit (F1EE) Power Unit Disconnect the...
-
Page 12: Add/Pair With Power Unit
Power Unit. Repeater Repeater Tilføj enhed UNITS If the connection has been made correctly, The devices are Power Unit (F1EE) Power Unit now paired! the control panel will report the pairing again. Repeater Repeater Tilføj enhed 3111001 Xzense UK 20220215... - Page 13 Product information Option 2 - With power and supplied code Step Action Display If the Power Unit has been connected to power for more than two minutes, then the pairing must be done using the password supplied with the Power Unit.*. *The password illustrated to the right is just an example.
- Page 14 Repeater Repeater Tilføj enhed UNITS If the connection has been made correctly, The devices are Power Unit (F1EE) Power Unit now paired! the control panel will report the pairing again. Repeater Repeater Tilføj enhed 3111001 Xzense UK 20220215...
- Page 15 Product information Power Unit Features Isolation switch for the chimney fan. LED indicators: POWER lights up continuously when voltage is applied to the Power Unit. CONNECT lights up when searching for a CONNECT device. POWER 0502300 Serie no.: xxxx Batch no: xxxx Button to connect: The control panel and Power Unit can be connected.
- Page 16 Long press on the Power Unit. Repeater Repeater Tilføj enhed UNITS Then the MAC address will be shown on the display. Power Unit (F1EE) Power Unit F1EE:46FE:FF6F:0D00 Press OK to return the Devices menu. Repeater Repeater Ventilation Tilføj enhed 3111001 Xzense UK 20220215...
-
Page 17: Test Of Communication/Signal
Product information 2.5. Test of communication/signal Step Action Display Turn on the control panel by clicking the button on the top. Plug in the USB-cable if needed. The screen now lights up on the home screen. If the display shows the text ”No connection to Power Unit”, there is no communication between the power Error 1 unit and control panel. -
Page 18: Language Selection
Select the desired language by moving your finger Language to the side of the language menu. Click on the DANISH desired language. To return to the menus, use the back arrow at the bottom left corner. 3111001 Xzense UK 20220215... -
Page 19: Lighting And Operation
Product information 2.8. Lighting and operation Step Action Display Select Lighting Lighting Ventilation Weather The display shows a lighting, and the fireplace/stove must now be turned on. BOOSTING The chimney fan will run at maximum speed for 10 minutes (default setting) and then fall to the speed it was driving when it was last turned on. -
Page 20: Refire And Afterrun
The chimney fan has a Afterrun period of 30 minutes, which ensures that the fuel is glow-free and that the remaining smoke has been led away from the chimney. Both the stop temperature and the afterrun period can be changed in the menu. 3111001 Xzense UK 20220215... -
Page 21: Ventilation
Product information 2.11. Ventilation The chimney fan can also be used when there is no fire in the fireplace/stove. The chimney fan can ventilate the room or make sure that soot and dust particles are sucked away while the fire- place is being cleaned. -
Page 22: Weather Station
For eXotelligence to work, it requires the Power Unit to be outdoors and not directly in sunlight. To be able to operate in Pressure Controlled mode, a Xzense wire- less XTP sensor needs to be added to the system. When operating... -
Page 23: Exotelligence
Product information 2.14. eXotelligence In manual mode the speed of the fan is adjusted by the user, and it is up to the user to make sure that the draft is adjusted when needed. This will work very fine but changing weather and atmospheric pressure over the week has a big influence on the natural draft of the chimney. -
Page 24: Pairing With Smartphone Via Bluetooth
The control panel can be paired with a smartphone (iOS and Android) if you want to operate the chimney by using an app. Download the app Xzense in your application store on your smartphone. It is recommended to use apply power to the control panel when Bluetooth is enabled, as battery life is significantly reduced when using the smartphone and the Bluetooth function. - Page 25 Action Display* Xzense Cancel Xzense Tools DOWNLOAD Værktøjer Get the Xzense app on your smartphone Today Games Apps Updates Search Open the Xzense app on your smartphone *On the next pages it is an iPhone that is illustrated, but the app can also be used on an Android smartphone.
- Page 26 Connects... - Remember to turn Bluetooth on both your Cancel smartphone and your control panel. Ready for Lighting Add Xzense device Select OK to add/pair your control panel with your Add first a Xzense device smartphone. 3111001 Xzense UK 20220215...
- Page 27 Add device with Bluetooth Activate the pairing by selecting ON on the control panel you want to pair with. The control panel ID is seen in parentheses after the Xzense text. Eg. Xzense (CFEE) Add device with Bluetooth Pin code missing Insert pin code to connect Enter the code and finish with OK.
- Page 28 App information Ready for Lighting The app is now paired with the control panel - and you can now make a lighting by using your app. 3111001 Xzense UK 20220215...
-
Page 29: Basic Features Of The App
App infomation 2.16. Basic features of the app Please note that the app’s functions can only be used if the control panel is connected. The control panel and app will synchronize with each other along the way. Lighting Step Action Display Ready for Lighting Press the lighting icon to start the boost function. - Page 30 Press NO if you do not want to stop lighting/firing. Operating speed and chimney temperature When the boost is finished, the controller continues in Chimney normal operation. To increase or decrease the chimney speed and hence the chimney draft is used up and down buttons. 3111001 Xzense UK 20220215...
- Page 31 App infomation Refueling and Afterrun Step Action Display When it’s time to refuel, your smartphone lights up. The control panel also lights up and a small alarm sounds. A dialog box appears on both screens and asks if you Genfyring Refueling Ønsker du at genfyre? Do you want to refuel?
- Page 32 App information Afterrun If you do not want to refuel, choose the NO function and the Afterrun will start. The Afterrun has a factory setting with time period of 30 min. 3111001 Xzense UK 20220215...
-
Page 33: Ventilation With The App
App infomation 2.17. Ventilation with the app The chimney fan can also be used when there is no fire in the fireplace/stove. The chimney fan can ventilate the room or make sure that soot and dust particles are sucked away while the fireplace is being cleaned. -
Page 34: Weather Station In The App
Also, as on the control panel, you also have the Weather Station on the app. 19.44 Weather Outside Select the Weather function at the bottom of the menu to get an overview of temperatures and air pressure at the given time. Chimney 45 C Air pressure Air Pressure 3111001 Xzense UK 20220215... -
Page 35: Setup And History In The App
App infomation 2.19. Setup and history in the app Bluetooth Step Action Display Bluetooth Select the Settings option in the bottom menu. Select Bluetooth. System control History Add device with Bluetooth The overview in the Bluetooth menu shows which devices your smartphone can connect to. - Page 36 To change the control system, this must be done eXotelligence directly from the control panel. See detailed review in “2.12. System control ”on page 22. Pressure controlled Changing the system control on the control panel will also effect the change on the app. 3111001 Xzense UK 20220215...
- Page 37 App infomation History Step Action Display Bluetooth Select the Settings option in the bottom menu. Select the History menu. System control History History Error Log Choose either Error Log or History to get one overview of any. error messages, operating hours, etc.
- Page 38 15-04-2019 Error Log Low battery 02-03-2019 In the Error Log, there is an overview of the error messages that may be have been on the way. The same overview can be found in the control panel. 3111001 Xzense UK 20220215...
-
Page 39: Faq In The App
App infomation 2.20. FAQ in the app In the FAQ in the app you can find the frequently asked questions or small quick guides videos about using Xzense. Step Action Display Select the FAQ menu in the upper right corner... -
Page 40: Software Update
On the Xzense control panel, access the submenu “Network” and select “Bluetooth”. Activate Bluetooth to pair your Xzense with your smartphone via the Xzense app (see steps in the Xzense user manual – Chapter 2.14). It is possible to update the control panel firmware without first connecting it to a power unit. - Page 41 App infomation Ready for ignition Wait while the phone transfers the firmware update to the Xzense control panel. Upgrading firmware 1/2 Upgrading firmware 2/2 This should take about 15 minutes. During this transfer process, do not shut down the phone or the control panel, and keep the devices within 3 metres of each other.
-
Page 42: Accessories - Repeater
The signal can at most go through 3 pcs. repeaters between an Xzense power unit and a control panel. The repeater is placed between the Xzense control panel and the power unit, which is typically mounted on the chimney.In some situations, it would be appropriate to set up the repeater outdoors, eg under the overhang or... -
Page 43: Technical Data
Purchase of accessories 3.5. Technical data Dimension (h x b x d) 75 mm x 85 mm x 25 mm Input, supply 5 VDC - USB Ingress protection IP20 Material Box: Black ABS - Lid: Black PC Ambient temperature -30 °C to 60 °C... -
Page 44: Accessories - Xtp Sensor
The installation must be carried out by competent persons. The XTP sensor makes it possible to achieve a constant draft in the chimney, thereby ensuring optimum combustion during firing. Xzense XTP sensor must always be mounted with the hose connectors downwards (fig. 1). (fig. 1) Title: When underpressure measurement, the pressure hose is mounted on the (-) stud. -
Page 45: Add Device/Pairing Devices
Purchase of accessories 4.3. Add device/pairing devices 1. To add a device (XTP sensor) to the control panel, select the Add device menu on the display. Add device 2. Already paired devices are displayed screen with a trash can. To pair with a new device, select a device with a link on it. Here, XTP-sensor select the device XTP sensor. -
Page 46: Technical Specifications
• No devices have been added to the control panel display (see section 2.10 Signal test and add / delete units). * Note: All alarm views will disappear when the error is corrected. See the overview of troubleshooting under the Error Log menu. 3111001 Xzense UK 20220215... -
Page 47: Technical Data
Technical specifications 5.2. Technical data Data Control panel Power Unit Temperature sensor Dimensions mm H x B x D 72 x 86 x 25 122 x 120 x 55 ø6 x 200 Voltage 5 V (USB) 230 V ± 10 % / 50 Hz Protection IP20 IP54... -
Page 48: User And Service Menu
Add power unit, repeater and pressure sensor Signal test Displays the status of the signal Deletes all included devices: Yes/No Reset network Note: Also deletes the power unit from the network Bluetooth Enable Bluetooth Activating Bluetooth function: On/Off 3111001 Xzense UK 20220215... - Page 49 Technical specifications MENU SUBMENU TYPE DESCRIPTION FACTORY SETTING LIGHTING Lighting Boosting Boost time during lighting 10 min. at 100% Setting the speed at the current operating Operation situation Refueling Possibility of refiring: Ja/Nej 35 °C Afterrun Run time at the end of a burning cycle 30 min.
-
Page 50: Declaration Of Conformity
EMC-direktiivi: Directive Compatibilité Electromagnétique: EMC-eftirlitið: EMC-direktivet: Direttiva Compatibilità Elettromagnetica: Dyrektywą EMC – kompatybilności elektromagnetycznej 2014/30/EC Langeskov, 06.12.2021 Algemeen directeur Adm. direktør Geschäftsführender Direktor Managing Director Président Directeur Général Anders Haugaard Verkställande direktör Toimitusjohtaja Framkvemdastjori Direttore Generale 3111001 Xzense UK 20220215... - Page 52 DK: exodraft a/s NO: exodraft a/s DE: exodraft GmbH Industrivej 10 Storgaten 88 Soonwaldstraße 6 DK-5550 Langeskov NO-3060 Svelvik DE-55569 Monzingen Tel: +45 7010 2234 Tel: +47 3329 7062 Tel: +49 (0)6751 855 599-0 Fax: +45 7010 2235 info@exodraft.no Fax: +49 (0)6751 855 599-9 info@exodraft.dk...
