Apogee SP-110 Owner's Manual

Apogee SP-110 Owner's Manual

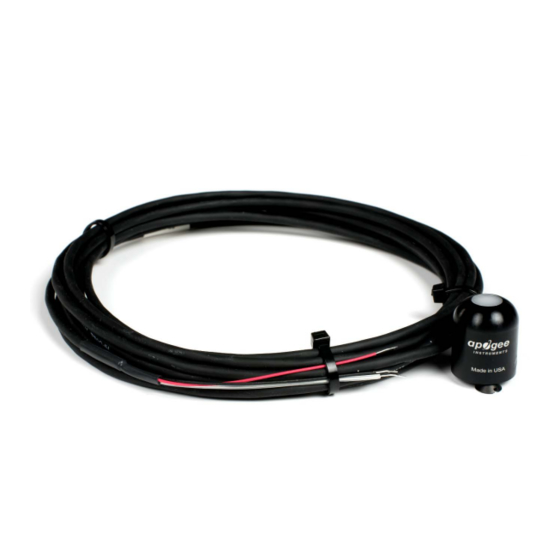

Precision pyranometer
Hide thumbs Also See for SP-110:

Advertisement

Specifications
45° zenith angle
75° zenith angle
Absolute accuracy
Uniformity
Repeatability
Output
Responsivity
In full sunlight
Linear range
Sensitivity
Input power
Operating environment
Materials
Cable
Dimensions
Mass
Warranty
435-792-4700
www.apogeeinstruments.com
techsupport@apogee-inst.com

Spectral Response and Calibration

An ideal pyranometer measures the entire solar
spectrum, 280 to 2800 nm. However, about 90% of
sunlight energy is between 300 to 1100 nm.
SP-110 is calibrated to estimate all of the shortwave
energy from sunlight. Apogee pyranometers are
calibrated under sunlight over a multiple day period
to a heated and ventilated Kipp & Zonen model CM21
precision reference radiometer.
Precision
± 1 %
± 4 %
± 5 %
± 3 %
± 1 %
-2
0.200 mV per W m
220 mV (1,100 W m
-2
)
0 - 350 mV (0 - 1,750 W m
-2
); 1.75 x full sun
Custom calibrated to exactly 5.00 W m
None, self-powered
- 40 to 55 °C; 0 to 100% relative humidity.
Designed for continuous outdoor use. Can be
submerged under water.
Anodized aluminum with acrylic lens
3 meters of shielded, twisted-pair wire with
Santoprene casing, ending in pigtail leads.
Additional cable
$
1.95/meter.
2.4 cm diameter, 2.75 cm high
70 g (with 3 m lead wire)
1 year against defects in materials/workmanship
8
Model
6
-2
per mV
Owners Manual
Model: SP-110
Never attach a power source
Attach the sensor to a meter or datalogger
capable of displaying or recording a mV output.
The model, serial number, production date, and
conversion factor are located on the sensor cable.
Precision
Pyranometer
US Patent No. D519,860

Setup Instructions

Red: positive (signal
from sensor)
Black: negative
(signal from sensor)
: shield/ground
Clear
to the sensor
SP-110 3857
29 FEB 2008
5.00
3
